IKEGAI ANC 130FM

IKEGAI - ANC 130FMKR-BOR-IKE-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

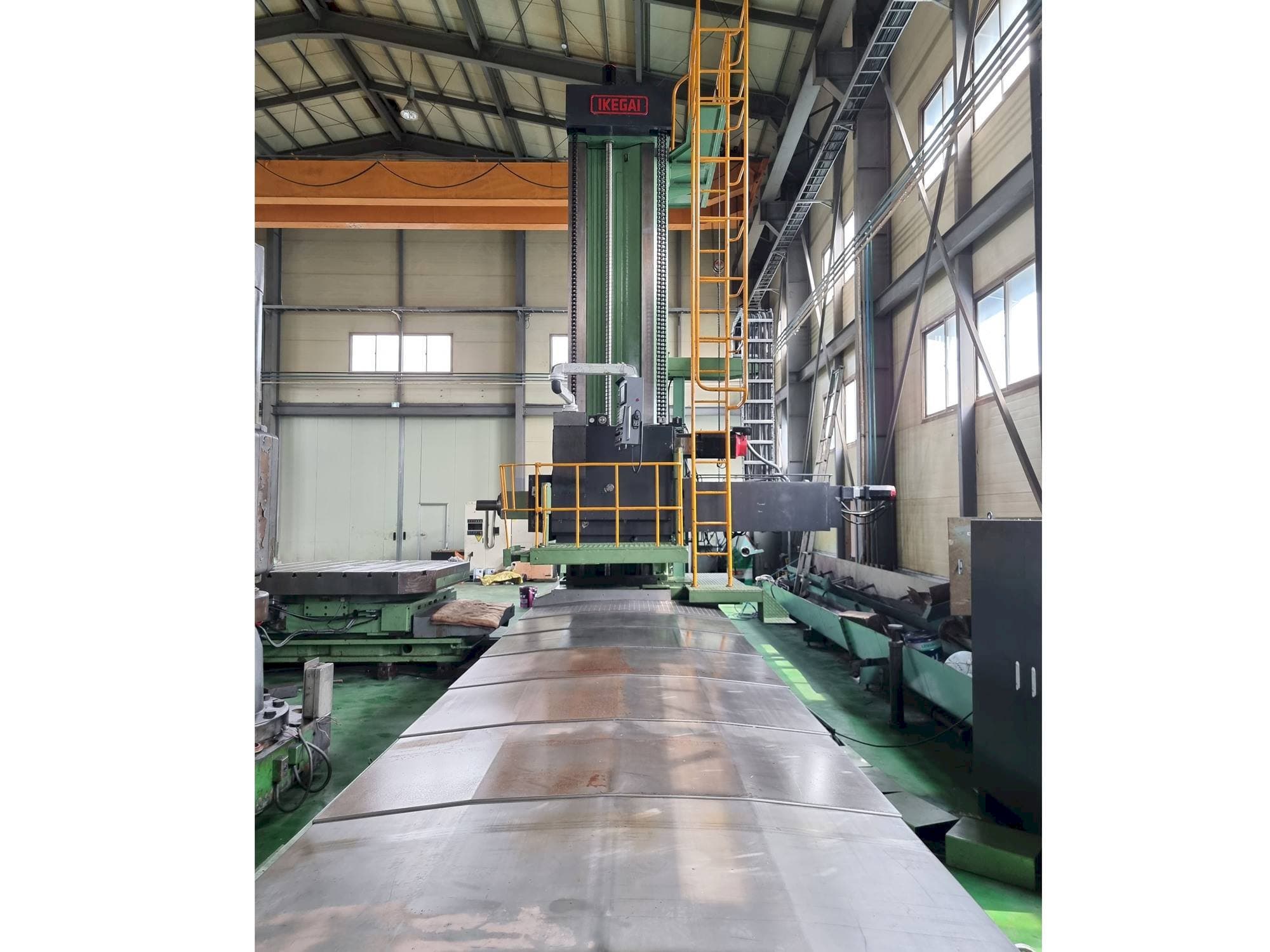

This IKEGAI ANC 130FM Floor Boring Machine tool was rebuilt and retrofit in 2017 in Japan by IKEGAI HQ employees. It is equipped with a FANUC Series 18i-MB control unit. This machine has a spindle speed up to 1200 rpm and a spindle stroke 750 mm. It includes its manual books.

Overview

brand: IKEGAI
year: 2017
MODEL: ANC 130FM
application type: Other Machine Tools
Location: South Korea
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: FANUC

Technical Information - IKEGAI ANC 130FM

Control Unit

Model: Series 18i-MB
Brand: FANUC

Main drive

Spindle speed range: 1200 1/MIN
Spindle motor power: 29.41 kW

Movement

X-AXIS Movement: 8000 MM
Y-AXIS Movement: 4200 MM
Z-AXIS Movement: 1500 MM

Table

Outer length: 2200 MM
Outer width: 2200 MM

Tools

Type of tool holder: BT50

Media

Main electronic connection: 220 V 60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Indexing: 0. 001 degree
- - Dia spindle: Φ130
- - Dia spindle stroke: 750 mm
- - Quadrangle ram: 340*340 mm
- - Quadrangle ram stroke: 750 mm
- - Magazine tool capacity : no atc type
- - Call right (led 3 step)
- - Mpg handle
- - Ce mark
Qualitative Machine Benefits:
- - This machine was newly rebuilt in japan. Ikegai hq employees directly rebuildng & retrofit the machine.
- - Manual books

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
