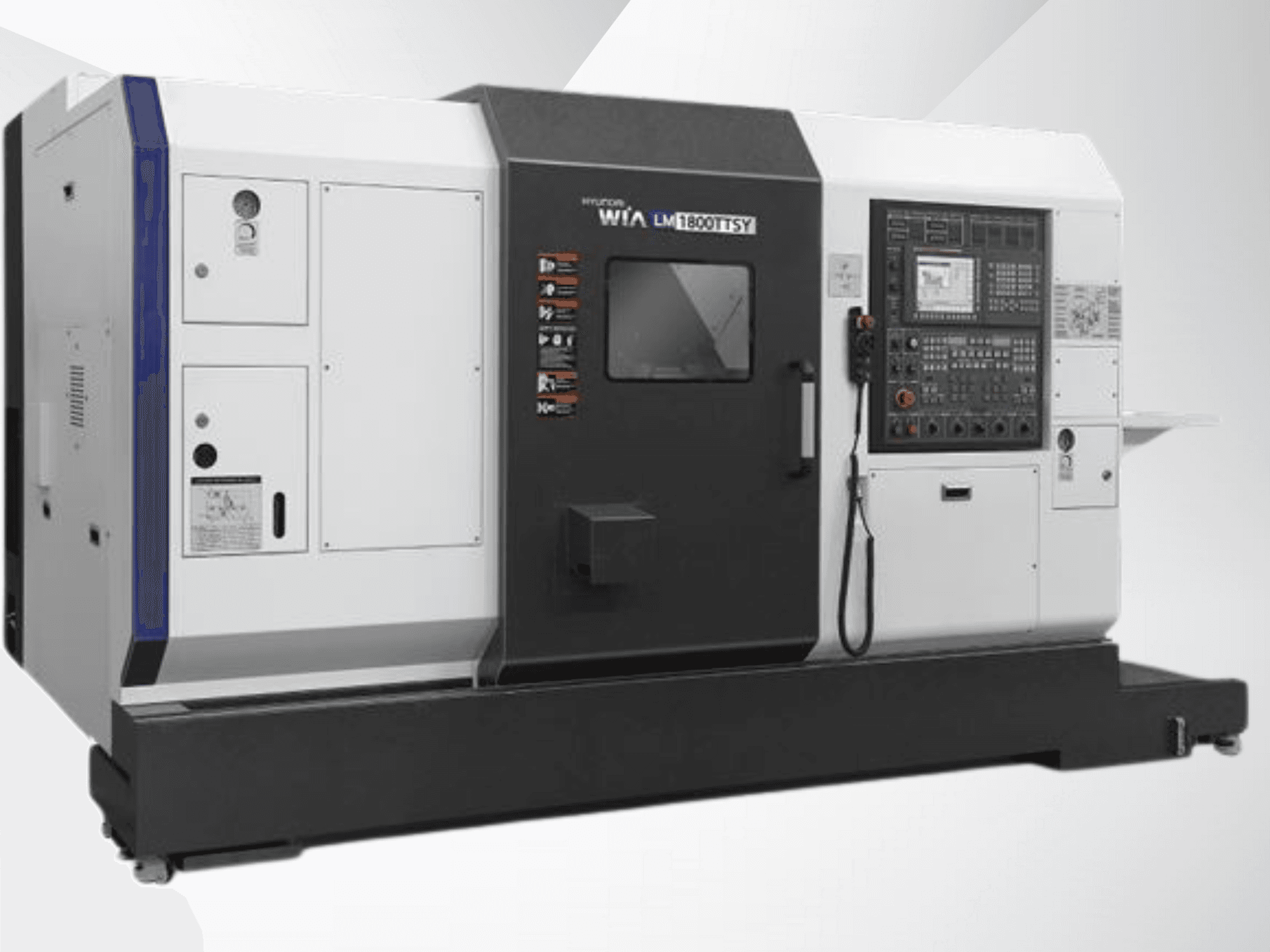

Hyundai LM1800TTSY CNC lathe machine, front view, features control panel, a black and white exterior, and operational buttons.
Hyundai LM1800TTSY CNC lathe machine, front view, features control panel, a black and white exterior, and operational buttons.

Hyundai - WIA LM 1800 TTSYDE-TUR-HYU-2025-00002

Rs. 29,770,122
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Hyundai WIA LM 1800 TTSY was manufactured in 2025, featuring a maximum turning diameter of Ø230 mm and length of 673 mm. It boasts a spindle speed of up to 5,000 rpm and a bar capacity of Ø65 mm. The machine includes a built-in motor spindle, dual 12-tool turrets, and rapid traverse rates ensuring efficient operations. Ideal for complex turning tasks. Contact us for more information about this machine.

Overview

  • brand: Hyundai
  • year: 2025
  • MODEL: WIA LM 1800 TTSY
  • production hours: 0
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine

Technical Information - Hyundai WIA LM 1800 TTSY

Dimensions

  • Machine Height: 2080 mm
  • Machine Length: 3650 mm
  • Machine Weight: 8500 kg

Movement

  • Number of Axes: 4
  • Y-axis Travel: 100 mm

Technical Specification

  • Spindle Speed: 5000 RPM

Additional Information

  • Packaging: Original packaging

  • Capacity:

    • Swing over carriage: Ø290 mm

    • Max. turning diameter: Ø230 mm

    • Max. turning length: 673 mm

    • Bar capacity (1st/2nd): Ø65 mm

    • Chuck size (1st/2nd): Ø210 mm

  • Spindle:

    • Spindle bore (1st/2nd): Ø76 mm

    • Motor (Max/Cont.) (1st/2nd): 22/11 kW (30/15 HP)

    • Torque (Max/Cont.) (1st/2nd): 358/214 Nm (264/158 lbf ft)

    • Spindle type: Built-in motor

    • Spindle nose: A2-6

    • C-axis indexing (1st/2nd): 0.001°

  • Feed / Axes:

    • Travels (X1/X2): 165/195 mm

    • Travels (Z1/Z2): 700/720 mm

    • Travel (ZB): 668 mm

    • Rapid (X1/X2): 20/20 m/min (787/787 ipm)

    • Rapid (Z1/Z2): 40/40 m/min (1,575/1,575 ipm)

    • Rapid (Y): 7.5 m/min (295 ipm)

    • Rapid (ZB): 40 m/min (1,575 ipm)

    • Slide type (X/Y): Box guide

    • Slide type (Z): LM guide

  • Turret:

    • No. of tools: 2 × 12 (24)

    • Tool size (OD): Ø20 mm

    • Tool size (ID): Ø32 mm

    • Indexing time: 0.15 sec

    • Y-axis type: Wedge type

  • Live tool:

    • Milling tool speed: 5,000 rpm

    • Motor (Max/Cont.): 5.5/1.1 kW (7.4/1.5 HP)

    • Torque (Max/Cont.): 47/14 Nm (34/10 lbf ft)

    • Collet size: ER25

    • Type: BMT55

  • Tank capacity:

    • Coolant tank: 300 L (79.3 gal)

    • Lubricating tank: 4 L (1.06 gal)

  • Power supply:

    • Electric power: 60 kVA

    • Power cable thickness: Over 50 mm²

    • Voltage: 220/60 (200/50)

  • NC / Controller: FANUC 31i-B Plus / SIEMENS 840D

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
