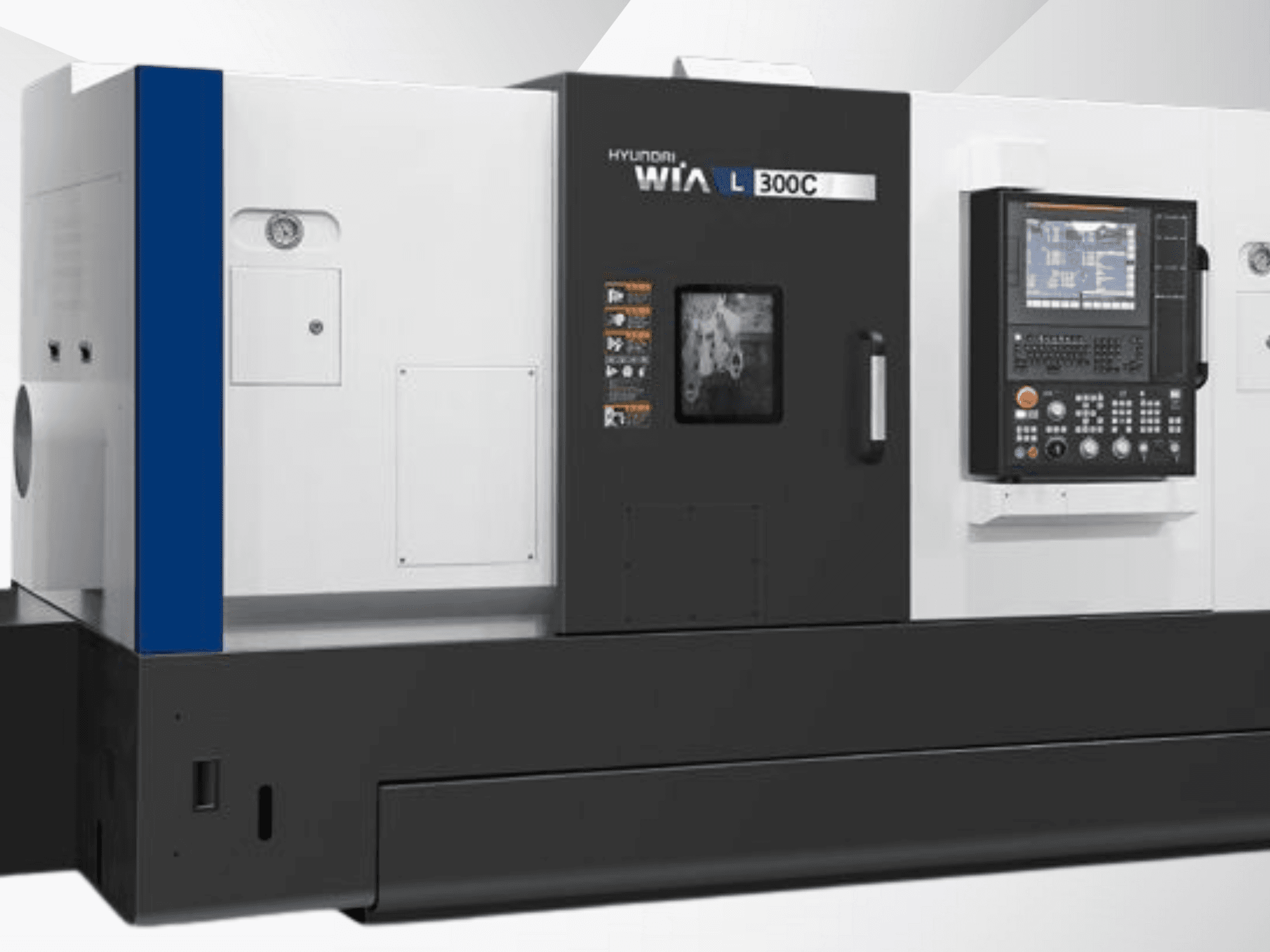

Hyundai - Wia L300CDE-TUR-HYU-2025-00004

Condition: Original packaging, 0 operating hours

Capacity:

• Swing over bed: Ø750 mm

• Swing over carriage: Ø480 mm

• Max. turning diameter: Ø500 mm

• Max. turning length: 720 mm

• Bar capacity (main): Ø90 mm

• Bar capacity (sub): Ø102 mm

• Chuck size (main): 12"

• Chuck size (sub): –

Spindle (main):

• Spindle bore: Ø102 mm

• Torque (max/cont.): 1,131/957 Nm (834.2/705.8 lbf·ft)

• Spindle type: Belt + 2-step gear

• Spindle nose: A2-8 (A2-11)

Feed:

• Travel (X/Z): 355/750 mm

• Rapid traverse rate (X/Z): 20/24 m/min

• Slide type: Box guide

Turret:

• Number of tools: 12

• Tool size (OD): Ø25 mm

• Tool size (ID): Ø50 mm

• Indexing time: 0.3 sec

Tank capacity:

• Coolant tank: 220 l

• Lubricating tank: 1.8 l

Power supply:

• Electric power supply: 30 kVA

• Thickness of power cable: Over 35 mm²

• Voltage: 220/60 (200/50)
