Hyundai Wia Hi-MOLD 560/5A

Photo Gallery

Hyundai Wia - Hi-MOLD 560/5APL-MIL-HYU-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hyundai Wia Hi-MOLD 560/5A For Sale | gindumac.com

Show in original language

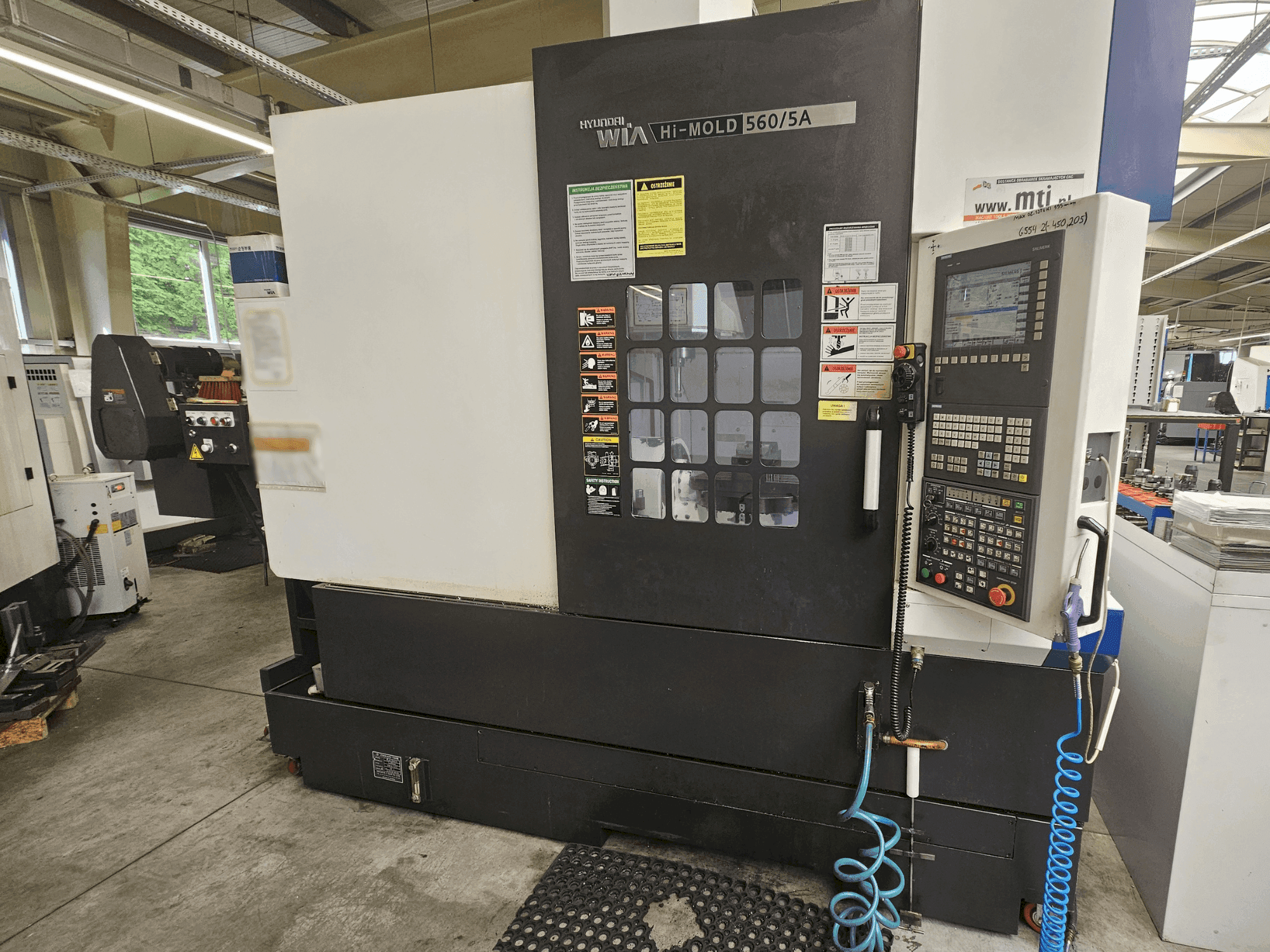

This 5-axis Hyundai Wia Hi-MOLD 560/5A was manufactured in 2013. It features a Siemens 840D control system, a table size of Ø500 × 270 mm, and can handle a maximum table load of 250 kg. The machine offers a rapid traverse rate of 50 m/min in X/Y/Z axes and higher speeds in rotary axes, with spindle speeds up to 24,000 rpm. Consider the opportunity to buy this Hyundai Wia Hi-MOLD 560/5A vertical machining centre. Contact us for more information.

Overview

brand: Hyundai Wia
year: 2013
MODEL: Hi-MOLD 560/5A
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Hyundai Wia Hi-MOLD 560/5A

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D

Movement

A-axis Max: 30°
Number of Axes: 5
X-axis Travel: 1000 mm
Y-axis Travel: 560 mm
Z-axis Travel: 450 mm

Technical Specification

Max. Tool Weight: 3 kg
Spindle Power: 33 kW
Spindle Speed: 24000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Table size: 500 × 270 mm
Maximum table load: 250 kg
Tool capacity: 24 tools
Tool change time (chip to chip): approx. 5. 5 sec
Max tool diameter (with adjacent tool): 70 mm
Tool shank type: hsk-a63

Extra Information

Full documentation available. Very good working condition. Low working hours.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
