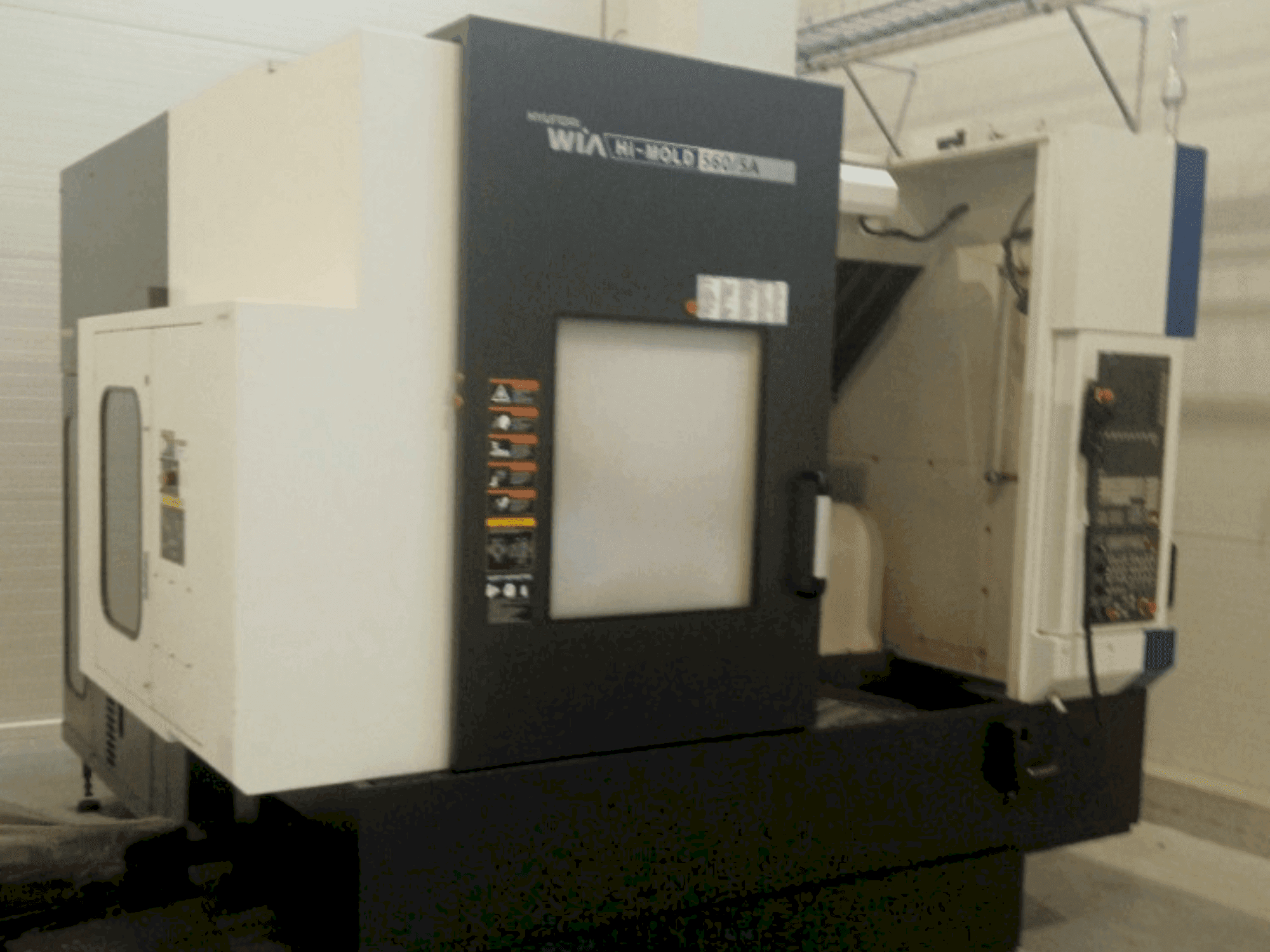

Front view of Hyundai Wia Hi-MOLD 560/5A  machine

Hyundai Wia - Hi-MOLD 560/5ACZ-MIL-HYU-2014-00003

Rs. 14,172,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Hyundai Wia Hi-MOLD 560/5A vertical machining centre was manufactured in 2014. It features a table size of 1,250×600 mm, a maximum load capacity of 800 kg, and a high-speed spindle with 24,000 RPM and 33 kW power. The machine offers rapid feed rates of 50 m/min in all axes and a quick tool change time of 5.5 seconds. If you are looking to get high-quality milling capabilities, consider the Hyundai Wia Hi-MOLD 560/5A machine we have for sale. Contact us for more information.

Overview

  • brand: Hyundai Wia
  • year: 2014
  • MODEL: Hi-MOLD 560/5A
  • application type: Milling
  • Location: Czech Republic
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - Hyundai Wia Hi-MOLD 560/5A

Main drive

  • Spindle speed range: 24000 1/MIN
  • Spindle motor power: 33/25 kW
  • Tool taper: HSK-A63
  • Number of axis: 5

Movement

  • X-AXIS Movement: 1000 mm
  • X-AXIS Rapid traverse: 50 m/min
  • Y-AXIS Movement: 560 mm
  • Y-AXIS Rapid traverse: 50 m/min
  • Z-AXIS Movement: 450 mm
  • Z-AXIS Rapid traverse: 50 m/min

Table

  • Table load: 800 kg

Tools

  • Number of index: 24

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Table size: 1250×600 mm
      • - Spindle torque: 96/72. 5 nm
      • - Tool change time (chip to chip): 5. 5 seconds

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
