➤ Used Exeron HSC 300/3 For Sale | gindumac.com

Show in original language

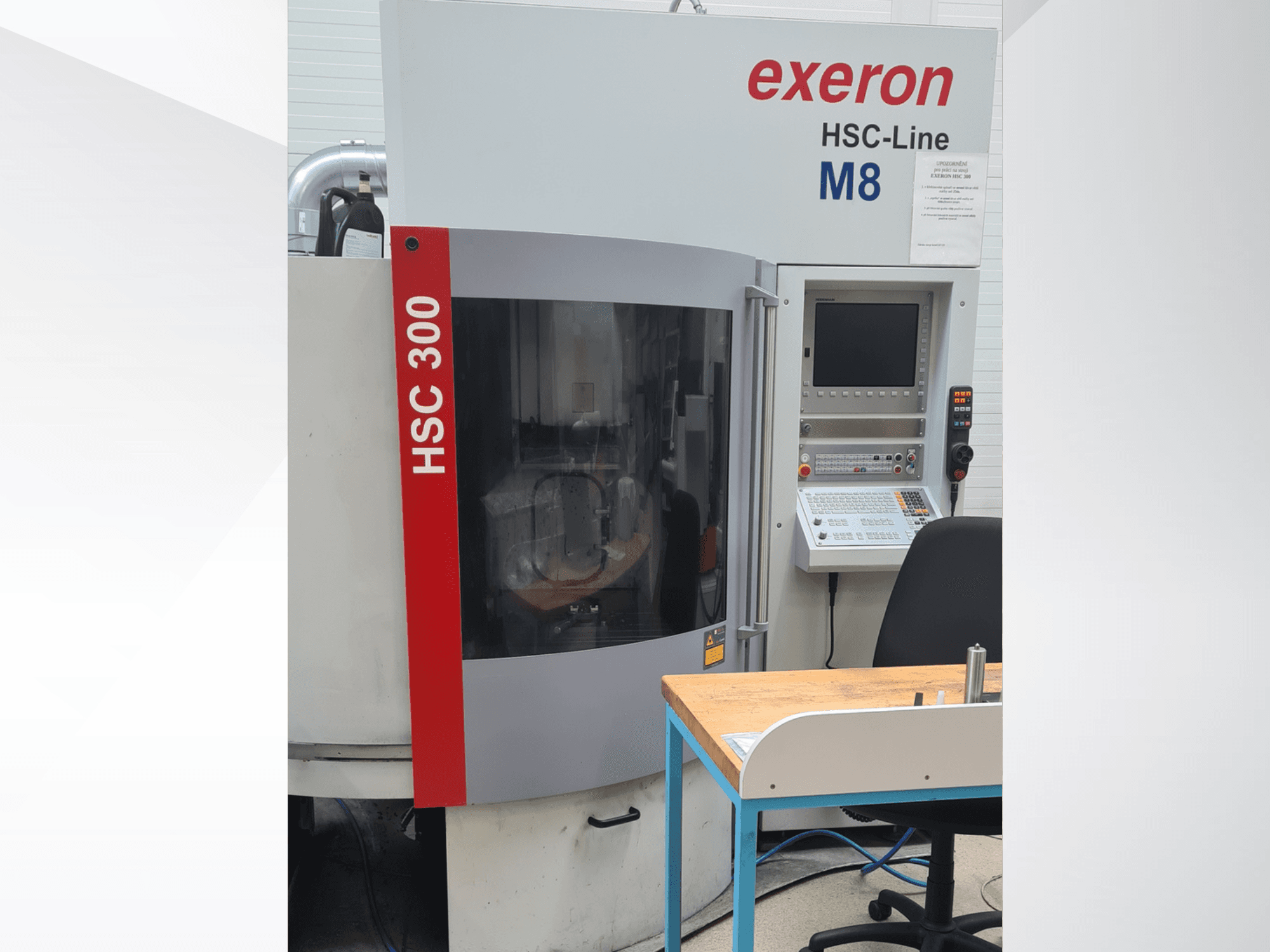

This 3-axis Exeron HSC 300/3 was manufactured in 2017. It features impressive travels of 550 x 340 x 355 mm and a clamping table size of 470 x 400 mm with a maximum load of 500 kg. The machine is equipped with a high-frequency spindle capable of speeds up to 42,000 rpm and a tool magazine with 40 positions. If you are looking to get high-quality machining capabilities, consider the Exeron HSC 300/3 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Exeron
year: 2017
MODEL: HSC 300/3
production hours: 1179
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Exeron HSC 300/3

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Table Load: 500 kg

Movement

Number of Axes: 3
X-axis Travel: 550 mm
Y-axis Travel: 340 mm
Z-axis Travel: 355 mm

Technical Specification

Spindle Speed: 42000 RPM
Tool Stations: 40

Additional Information

Clamping table: 470 x 400 mm
Spindle speed: up to 42,000 rpm (StepTec high-frequency spindle)
Taper / tool interface: HSK 40-E
Usage: exclusively for machining graphite electrodes
Spindle time: 1,180 h

Additional equipment

Workpiece probe: Heidenhain TS 460 + calibration mandrel
Tool measurement: integrated laser system MICRO COMPACT NT
Extraction system: Keller L-CUT-1-PM3-BE58 (graphite dust extraction)
Chip conveyor: No (machine equipped with graphite dust extraction instead)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
