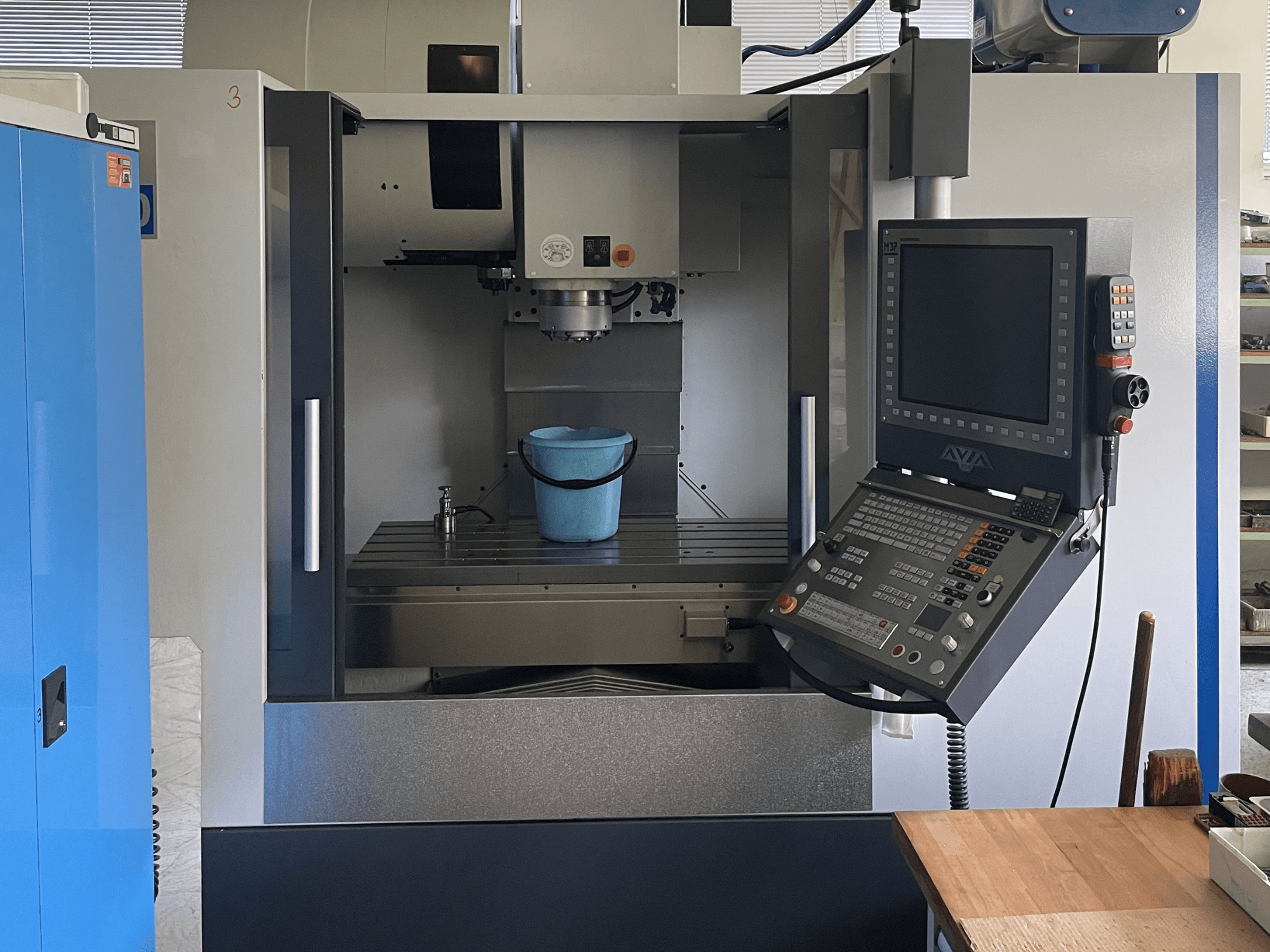

This 4-axis Avia VMC 1000 was manufactured in 2017. It features a generous X-axis travel of 1000 mm, Y-axis travel of 540 mm, and Z-axis travel of 620 mm. The machine is equipped with a robust table size of 1200 x 540 mm and a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the Avia VMC 1000 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Avia
- year: 2017
- MODEL: VMC 1000
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Avia VMC 1000
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC530 HSCI
Dimensions
- Machine Weight: 5500 kg
- Table Load: 1000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1000 mm
- Y-axis Travel: 540 mm
- Z-axis Travel: 620 mm
Technical Specification
- Spindle Power: 17 kW
- Spindle Speed: 15000 RPM
- Taper Size: ISO 40
- Tool Stations: 300
Additional Information
Table size: 1200 x 540 mm
Spindle-to-table distance (min/max): 150 / 770 mm
Working feed: 0–35 m/min
Rapid traverse (X/Y/Z): 35 / 35 / 35 m/min
Spindle motor power (S1 100% / S6 25%): 10 / 17 kW
Condition: Machine in top condition with very low hours
Additional equipment
Spindle through-coolant, 20 bar
4th axis preparation with 200 mm table, base, and 3-jaw chuck
Heidenhain TS 640 infrared workpiece probe
Heidenhain TT 160 tool probe
Oil mist collector (Mistresa, Japan)
Tool cooling with compressed air, 5 bar
Coolant oil separator
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
