HYUNDAI KIA HS500i Milling

Show in original language

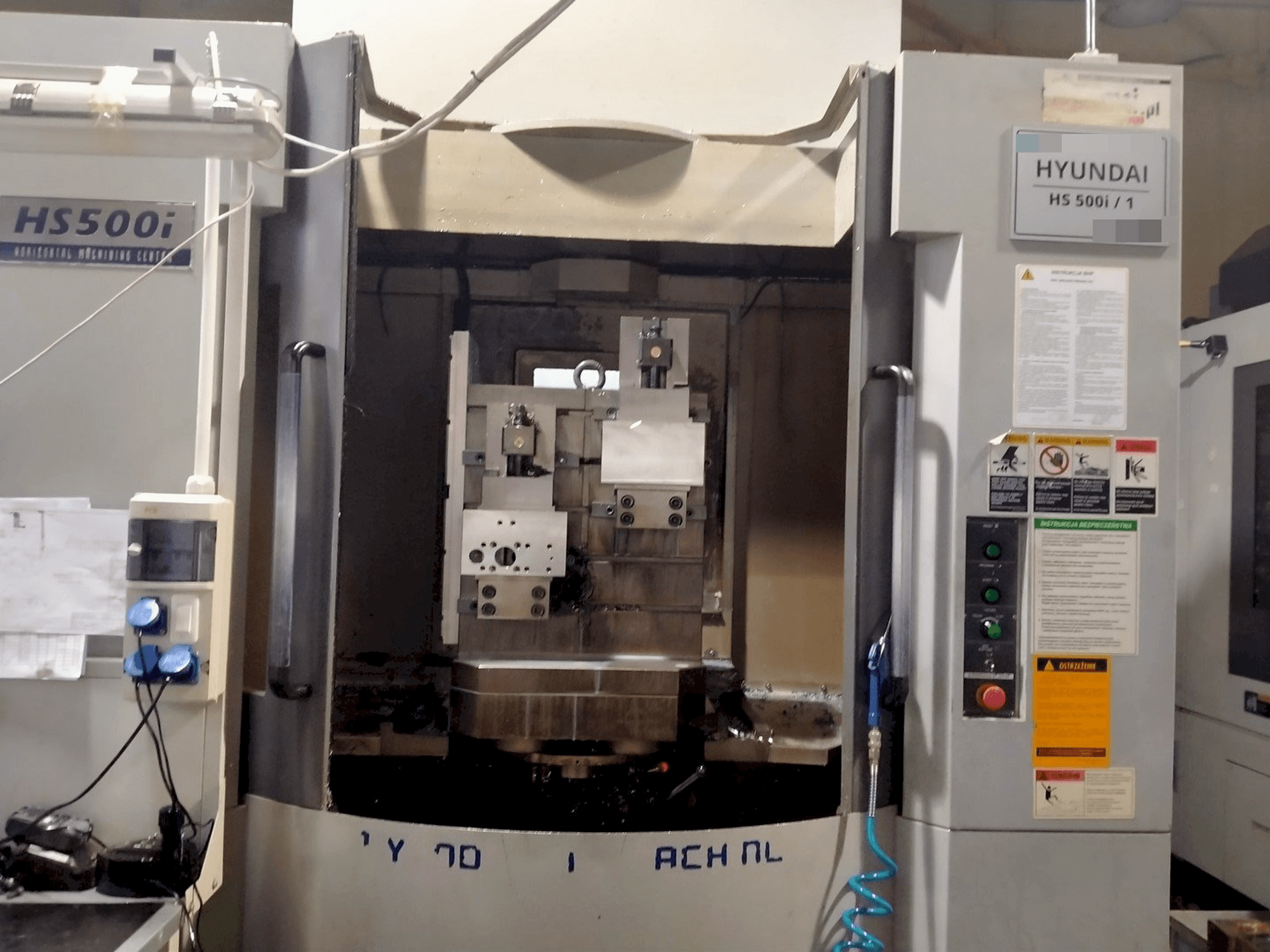

This HYUNDAI KIA HS500i Horizontal Machining center was manufactured in 2008. The 4 axis machine has a total of 21927 working hours. It operates through a FANUC Series 21i-MB control unit. The machine reaches a 12000 rpm spindle speed. It is in good technical condition, has full documentation and is ready for testing.

Overview

brand: HYUNDAI KIA
year: 2009
MODEL: HS500i
production hours: 21927
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - HYUNDAI KIA HS500i

Control Unit

Control Brand: FANUC
Control Model: Series 21i-MB

Dimensions

Machine Depth: 4950 mm
Machine Height: 2804 mm
Machine Weight: 15000 kg
Table Length: 500 mm
Table Width: 500 mm

Movement

Number of Axes: 4
X-axis Travel: 850 mm
Y-axis Travel: 700 mm
Z-axis Travel: 750 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Power: 22 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Good technical condition
Full documentation
Still at the production and ready for testing.

Technical Machine Benefits

Spindle taper bt40
Automatic tool changer (atc): twin arm type
Number of tools: 40 pcs
Fast forward (x / y / z): 40/40/40 m / min
Yom: 12/2008, first installation in 2009
Solid cast iron bed
Direct drive ball screws
Automatic pallet changer for 2 pallets
Automatic tool changer (apc): direct turn
Coolant delivery system to the processing area

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
