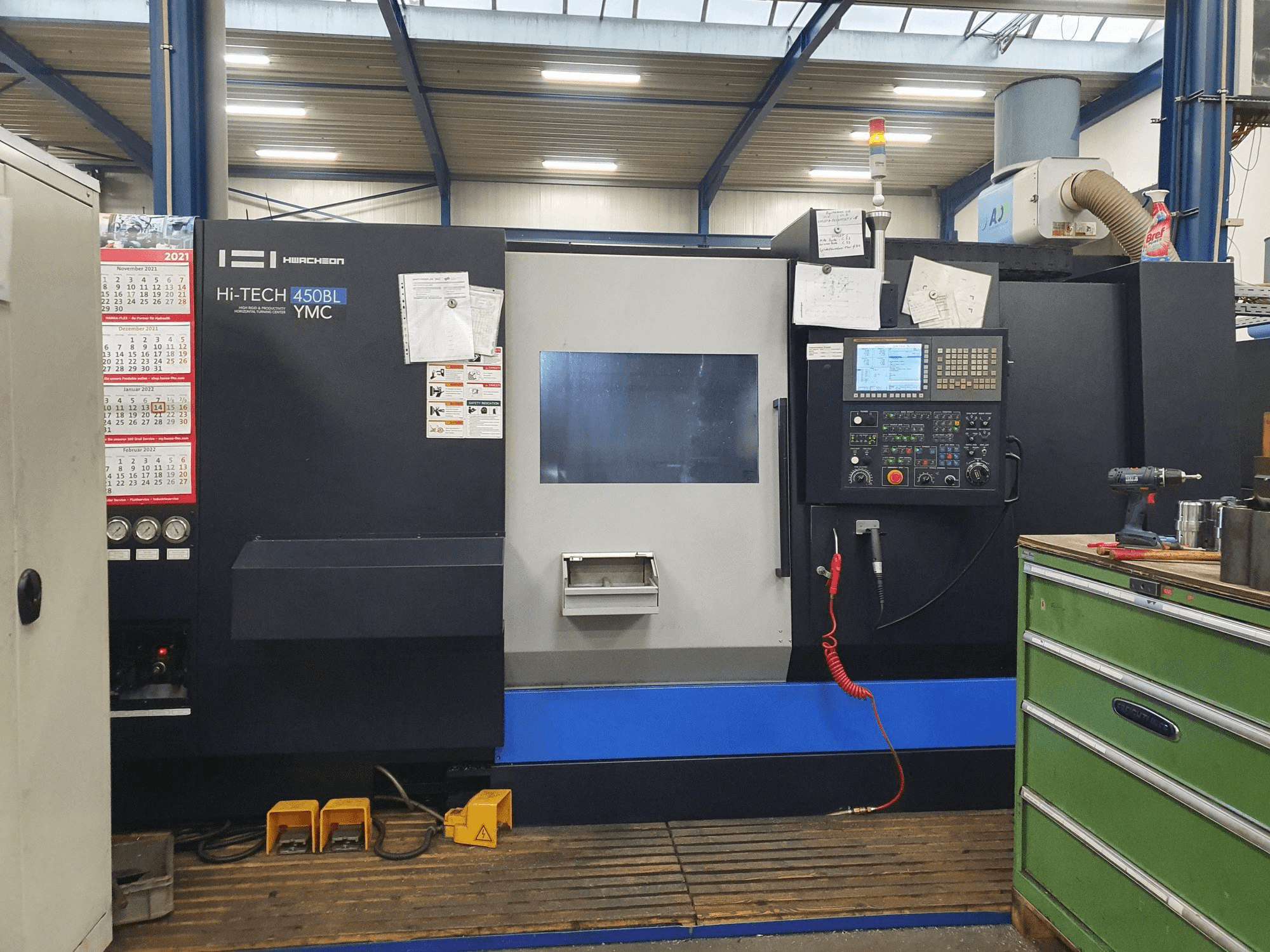

HWACHEON HI-TECH 450BL YMC Lathe machine

Show in original language

This HWACHEON HI-TECH 450BL YMC Lathe machine was manufactured in the year 2017 in Korea. This 3 machine can work with a spindle speed range up to 2500 rpm and a chuck size of 305 mm. It presents very good conditions.

Overview

brand: HWACHEON
year: 2017
MODEL: HI-TECH 450BL YMC
application type: Turning
Location: Germany
machine type: Turn-Mill Centre

Technical Information - HWACHEON HI-TECH 450BL YMC

Dimensions

Machine Weight: 6800 kg

Movement

X-axis Travel: 280 mm
Y-axis Travel: 120 mm
Z-axis Travel: 1390 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 2500 RPM

Additional Information

Additional equipment

Lynette carrier for SLU-X-XZS
Richter Lynette clamping range 30-150mm
Driven tool in X and Z
Driven Eppinger tools

Machine Benefits

Technical Machine Benefits

Overturnable diameter max. 420 mm
Turning length, max. 780cm
Chuck size 305 mm
Swing diameter over bed 700 mm
Max. Bar capacity 89 mm
Spindle torque 1050 / 883. 8 nm
Max. Counter spindle speed 4. 000 u/min
Counter spindle power 7. 5 / 5. 5 kw
Coolant tank vol. 240 liter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
