HWACHEON - D2-5AX 12kDE-MIL-HWA-2021-00001

Rs. 14,392,807
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

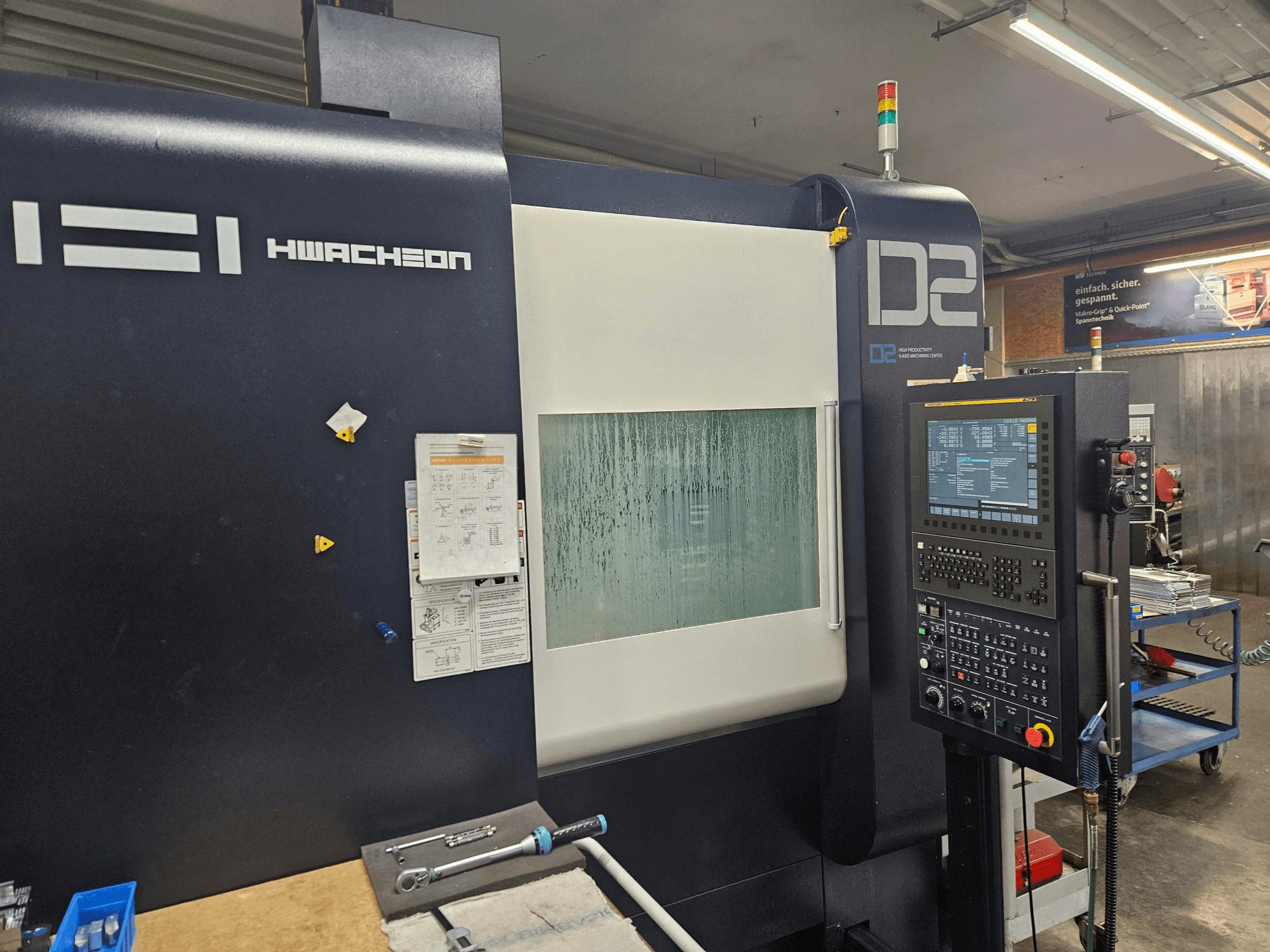

This 5-axis HWACHEON D2-5AX 12k was manufactured in 2021. It features an X-axis travel of 600 mm, Y-axis travel of 550 mm, and Z-axis travel of 500 mm. The machine is equipped with a spindle speed of up to 12,000 rpm and a tool magazine capacity of 30 places. If you are looking to get high-quality machining capabilities, consider the HWACHEON D2-5AX 12k vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: HWACHEON
  • year: 2021
  • MODEL: D2-5AX 12k
  • production hours: 4225
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • Available from: 15/09/2026
  • control unit brand: FANUC

Technical Information - HWACHEON D2-5AX 12k

Control Unit

  • Control Brand: FANUC
  • Control Model: 0i-MF

Dimensions

  • Machine Height: 3570 mm
  • Machine Length: 3700 mm
  • Machine Weight: 11500 kg
  • Machine Width: 3523 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 600 mm
  • Y-axis Travel: 550 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Power: 18.5 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: SK 40
  • Tool Stations: 30

Additional Information

- Control Unit: Fanuc 0i-MF with 15" Color Screen, Manual Guide i / TWP, Data Server 4 GB

- Max. Feed Rates (X/Y/Z): 24,000 mm/min

- Rapid Speed (X/Y/Z): 36 / 30 / 30 m/min

- Rapid Speed (B/C): 25 U/min

- Table Diameter: 600 mm

- Max. Workpiece Weight: 500 kg

- Table Height: 500 mm

- T-Slots: 14x100 mm

- Spindle Speed: Up to 12,000 rpm (Optionally listed 14,000 rpm 37/22 kW)

- Spindle Drive Power: 37 / 18.5 kW

- Spindle Torque: 250 Nm

- Spindle Taper: SK-40 DIN6359 / DIN69872A

- Tool Magazine Places: 30 places (Optionally 40 places)

- Max. Tool Length: 300 mm

- Max. Tool Diameter: 80 mm (130 mm adjacent empty)

- Max. Tool Weight: 8 kg

- Tool Change Time: 1.8 sec

- Internal Coolant Supply (IKZ): 30 bar, 13 l/min

- Coolant Tank Capacity: 250 L

- Measurement Systems: Renishaw OMP40-2 tool measurement with IR transmission, Blum tool setter

- Software Options: HTLD, HTDC, Optima, HAI 400 Block, Fanuc Helical Interpolation, Program Restart, HRCC

- Total Electrical Power: 70 kVA

- Rated Voltage: 3 / 220 V, 50 Hz

- Operating Air Supply: 0.5 - 0.7 MPa

- Control On Time: 16,460 h

- Operating Time: 5,550 h

- Machining Time: 4,225 h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
