- ➤ Used POSmill POSmill H 800 U For Sale | gindumac.com

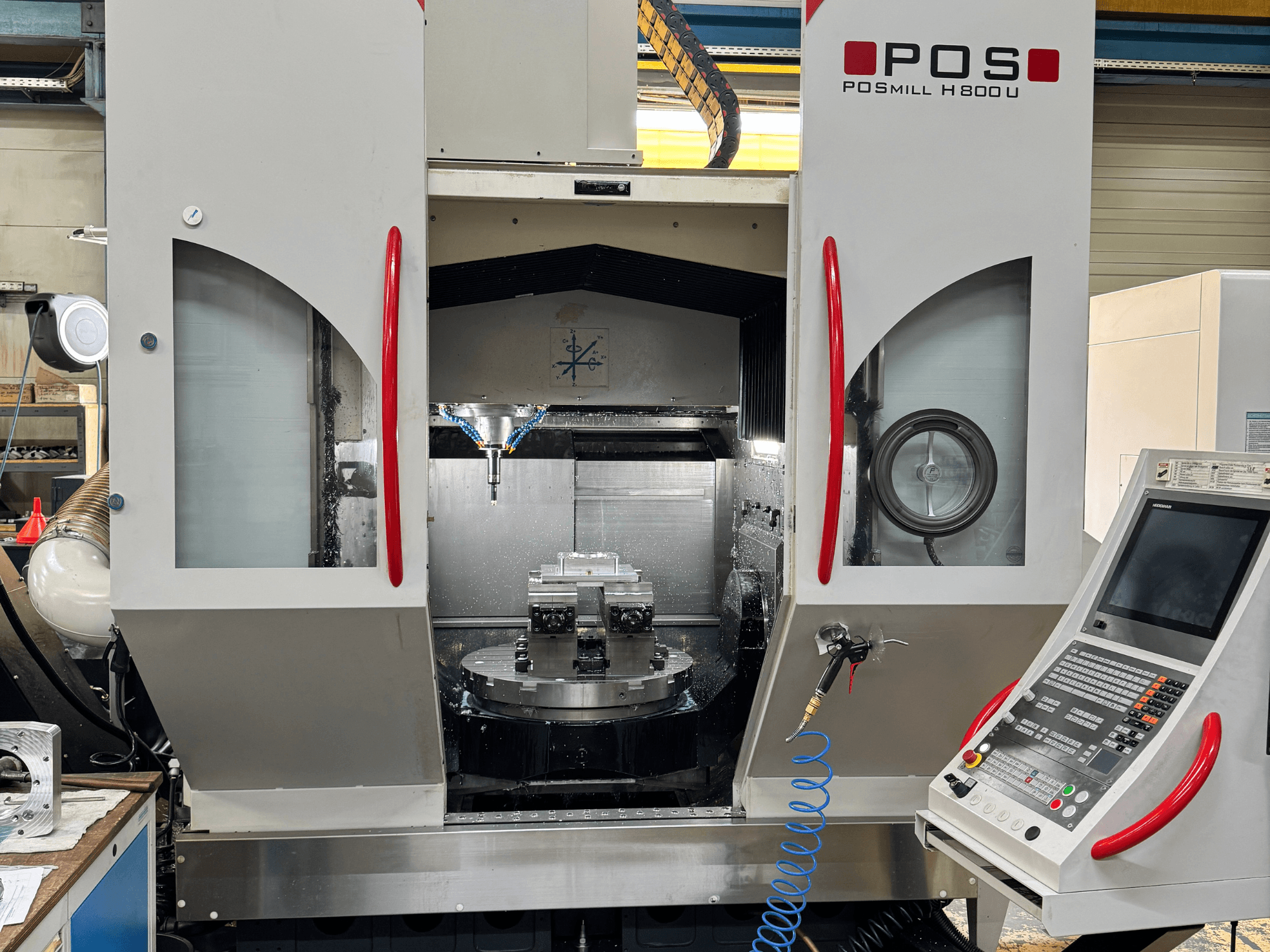

This 5-axis POSmill H 800 U was manufactured in 2023. It features an impressive X-axis travel of 670 mm, Y-axis travel of 830 mm, and Z-axis travel of 600 mm. The machine includes a table diameter of 800 mm and a spindle speed of 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the POSmill H 800 U vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: POSmill
- year: 2023
- MODEL: POSmill H 800 U
- production hours: 1862
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill POSmill H 800 U
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Machine Weight: 20000 kg
Movement
- Number of Axes: 5
- X-axis Travel: 670 mm
- Y-axis Travel: 830 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 18000 RPM
- Taper Size: HSK 63
- Tool Stations: 96
Additional Information
Control Unit: Heidenhain TNC 640
NC Software: 340590 16 SP3 Hotfix4
A-Axis Swivel Range: -120° to +120°
B-Axis Swivel Range: +110° / -110°
C-Axis Rotary Table: 360° Continuous Rotation
Table Diameter: 800 mm
Spindle Taper: HSK-A63
Tool Holder: HSK-A63
Air Through Spindle
Linear Measuring System: Heidenhain X, Y, Z
Rotary Measuring System: Heidenhain
Heidenhain DXF Import
Heidenhain OCM Option
Oil Cooling for 4th & 5th Axis
Spindle Cooler
Electrical Cabinet Air Cooling
Network Connection
USB Port
Collision Avoidance: POS DCM Collision Module
POS Kinematic Module incl. Reference Ball
Infrared Workpiece Measurement: 3D Probe
Tool Measurement: BLUM Laser
Workpiece Measurement Preparation
Rotary Viewing Window
Hinged Belt Chip Conveyor (Optional, Not Included)
Professional Chip Conveyor with 40 Bar Internal Coolant Supply
Coolant Pump (Head): M-Function Controlled
Coolant Flush Pump
Hand Wash Gun
Water Gun
Chip Flush System
Single Compressed Air Connection in Table Centre
Hydraulic Unit
Mobile Electronic Handwheel
Rated Power: 90 kVA
Rated Current: 125 A
Maximum Current: 200 A
Short-Circuit Rating: 25 kA
Power Supply: 400 V / 50 Hz
Spindle S1 Time: 1,861 h 59 min 58 s
Single-Shift Operation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
