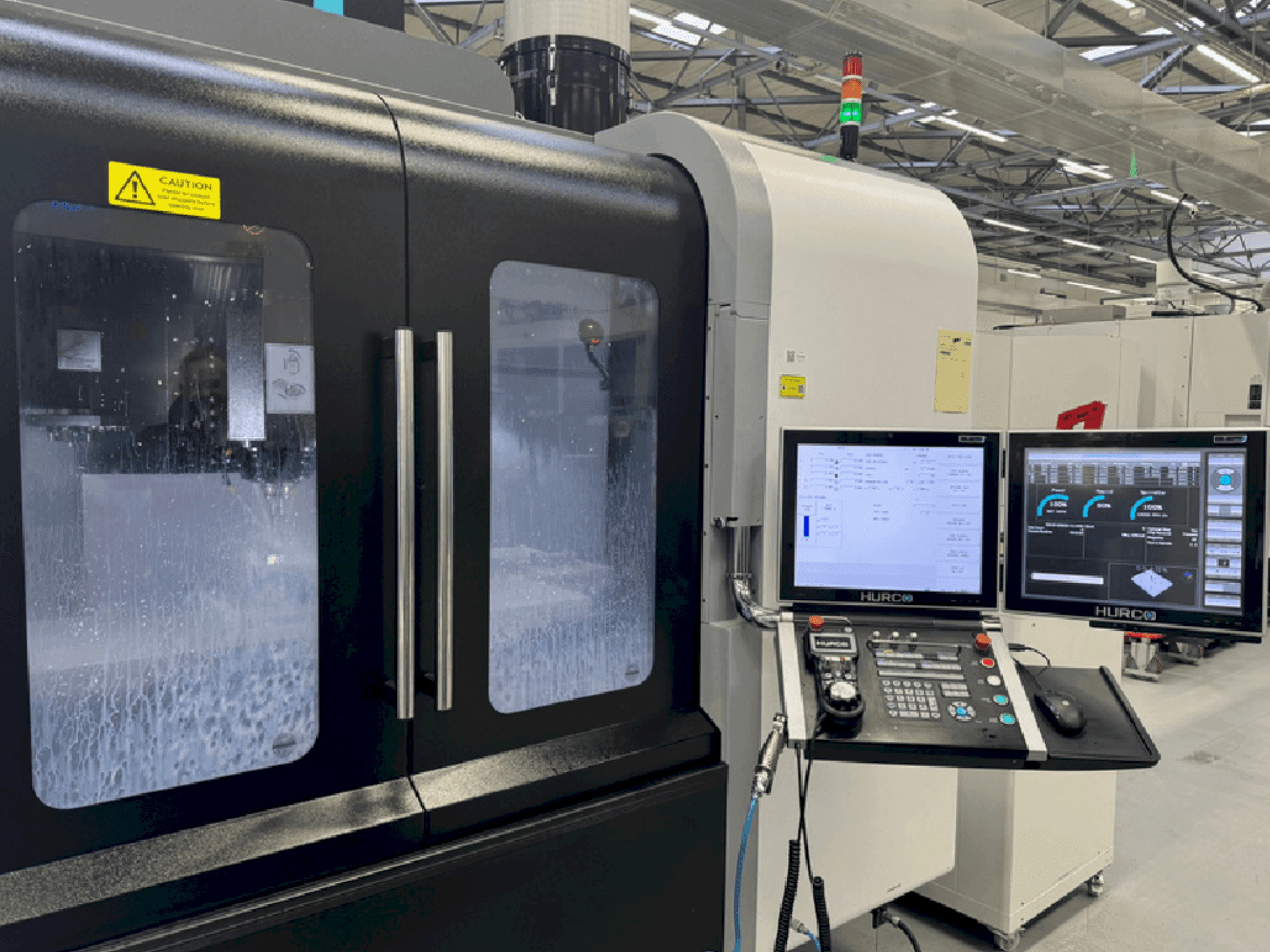

This Hurco VMX42HSRTi was manufactured in 2022. It features a high-speed 18,000 rpm motorized spindle, HSK A63 tool taper, and a 40 station ATC electric swing arm tool changer. The machine includes a 600 mm rotary table and Renishaw probes for enhanced precision. Ideal for demanding machining tasks. Contact us for more information about this machine.
Overview
- brand: Hurco
- year: 2022
- MODEL: VMX42HSRTi
- production hours: 1215
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: HURCO
Technical Information - Hurco VMX42HSRTi
Control Unit
- Control Brand: HURCO
- Control Model: Twin Screen Hurco Max control
Movement
- X-axis Travel: 1067 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- Tool Magazine: 40 station ATC Electric swing arm tool changer // Tool Measuring: Renishaw NC4 laser tool probe
- Spindle Probe: Renishaw RMP400
- Coolant: Coolant Through Spindle / Coolant ring nozzles
- Swarf Conveyor: Swarf conveyor with coolant washdown jets
- Spindle Chiller: Included
- Extraction: Filtermist unit FX6002M
- Coolant gun: Air hose and pistol assembly
- Air: Air blast
- Comfort: Anti-fatigue mat
- Access: Top hood cover / wide opening doors
Machine Benefits
Technical Machine Benefits
- Accuracy: linear scales / heavy duty linear rails (each axis)
- Table size: 1270 x 610 mm
- Rotary table diameter: 600 mm
Extra Information
Control Unit Control: Twin Screen Hurco Max control CNC Control Options: USB, 128 GB hard drive, 4 GB RAM, True type engraving, High resolution 3D rendered graphics, Real-time tool simulation, USB port, Ultimotion software, Advanced 3D modelling software, Ultipocket (Helical ramp entry), Adaptipath (Controlling cutter engagement) and rest machining, DXF Software, 3D mould swept surface (supersedes and includes 3D mould), Ultimonitor (Ultinet networking and ESF Extended Shop Floor capability), Tool and material library, Conversational / NC merge, Centre line probing option, Rigi tapping included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
