➤ Used Hurco DCX32-5Si For Sale | gindumac.com

Show in original language

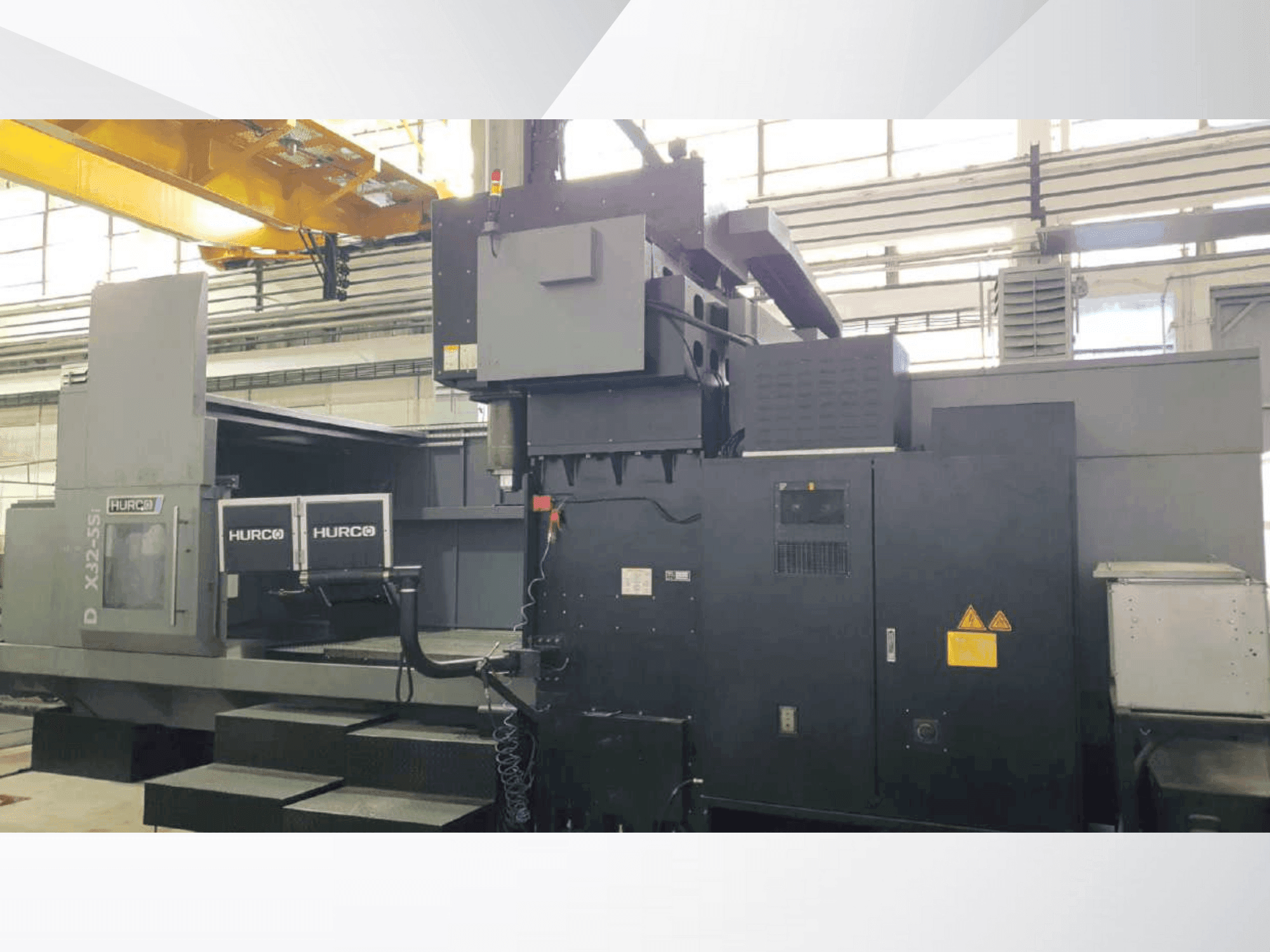

This 3-axis Hurco DCX32-5Si vertical machining centre was manufactured in 2016. It features a large work surface of 3,000x1,700 mm, supports a maximum table load of 11,000 kg, and offers extensive travel distances with X at 3,200 mm, Y at 2,100 mm, and Z at 920 mm. Equipped with a high-speed main spindle capable of 18,000 rpm and a robust 40-position tool magazine, this machine is ideal for complex, large-scale machining tasks. Contact us for more information about this machine.

Overview

brand: Hurco
year: 2016
MODEL: DCX32-5Si
production hours: 27000
application type: Milling
Location: Romania
machine type: Vertical Machining Centre
control unit brand: HURCO

Technical Information - Hurco DCX32-5Si

Control Unit

Control Brand: HURCO
Control Model: WinMax 5

Dimensions

Machine Depth: 9960 mm
Machine Height: 4724 mm
Machine Weight: 35000 kg
Table Length: 3000 mm
Table Load: 11000 kg
Table Width: 1700 mm

Movement

X-axis Travel: 3200 mm
Y-axis Travel: 2100 mm
Z-axis Travel: 920 mm

Technical Specification

Max. Tool Weight: 15 kg
Number of Tools: 40
Spindle Power: 35 kW
Spindle Speed: 18000 RPM

Additional Information

Additional equipment

Oversized linear guides and ultra-rigid roller linear guides
Ball screws with double nut and automatic centralized lubrication system
Screw chip conveyor and chip conveyor with scrapers
Machine interior washing system with emulsion gun/compressed air
Ring with emulsion nozzles in the shaft head
Large side doors for access
LED-illuminated workspace
Heat exchanger in the electrical cabinet
Premium remote control equipped with LCD display
IKZ-20 Spindle cooling CTS20 (20 bar)

Machine Benefits

Qualitative Machine Benefits

Wired remote control
Advanced graphic verification with 3d part model simulation
Conversational pocket and island programming
Ac main spindle motor with double coil
Main shaft cooling system
Automatic tool change
Laser tool length measurement (renishaw nc4)
Synchronized rigid threading without special tool
Part measurement with probe, radio connection (renishaw rmp 40)
Linear scales for x, y, and z axes

Technical Machine Benefits

Work advances: 10 m/min
X/y/z positioning accuracy: 0. 025 mm
Repeatability: 0. 015 mm
T-channels: 7x22x220 mm
Atc tool change time (dry): 5 sec
Advanced graphic verification and simulation features
Extensive material and tool library
Enhanced control and measurement systems
Robust construction and maintenance features

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
