Hurco VMX30Ui + BMO Automation Titanium 50

Photo Gallery

Hurco - VMX30Ui + BMO Automation Titanium 50NL-MIL-HUR-2017-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hurco VMX30Ui + BMO Automation Titanium 50 For Sale

Show in original language

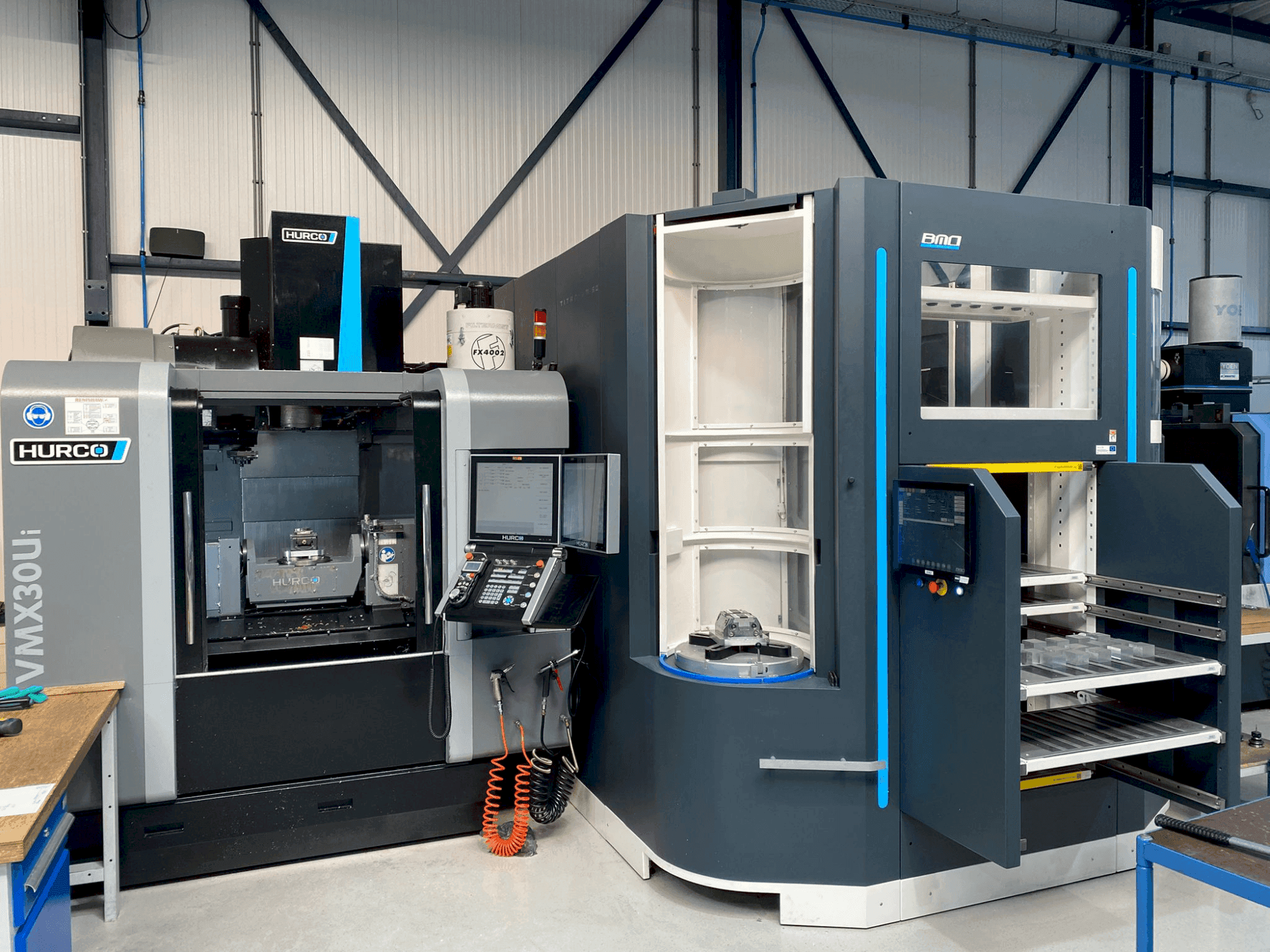

This 5-axis Hurco VMX30Ui + BMO Automation Titanium 50 was manufactured in 2017. Ideal for complex, multi-angle machining with its advanced vertical machining centre design. If you are looking to get high-quality milling capabilities, consider the Hurco VMX30Ui machine we have for sale. Contact us for more information.

Overview

brand: Hurco
year: 2017
MODEL: VMX30Ui + BMO Automation Titanium 50
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
control unit brand: HURCO

Technical Information - Hurco VMX30Ui + BMO Automation Titanium 50

Control Unit

Control Brand: HURCO
Control Model: MAX5

Dimensions

Machine Depth: 2180 mm
Machine Height: 2900 mm
Machine Weight: 5540 kg
Table Load: 200 kg

Movement

A-axis Max: 30°
A-axis Min: -110°
Number of Axes: 5
X-axis Travel: 760 mm
Y-axis Travel: 510 mm
Z-axis Travel: 520 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Central lubrication system: 1 pump (X,Y,Z)
Taper DIN69871 SK-40
Material of machine bed: Cast-iron

Machine Benefits

Technical Machine Benefits

Torque at 1 min rating: 119 nm
Positioning x, y, z per axis: 0. 01 mm
Bmo titanium 50 robot cell dimensions: 2. 5x3. 2 meters, floor area 8 m²
Combination of pallet and product handling possible
96 pallet positions 300x150
Maximum 7 product drawers for product loading
Flexible system due to universal robot and software
Very short changeover times of the workpiece
Product weight up to 50 kg
Max torque: 600rpm

Extra Information

Workpiece Spindle nose to table: 90 - 610 mm Table Table working surface: ∅ 248mm Width of T slots: 12 mm Spacing of T slots: 60° Tools ATC type: Chain magazine Tool ∅, consecutive tools: 76 mm Tool ∅, adjac. sides empty: 150 mm Media Air supply: 7 bar/0.15 cbm/min Content coolant tank: 230 ltr. Power (30 min rating): 13,4 kW (was Power (1 min rating): 35 kW)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
