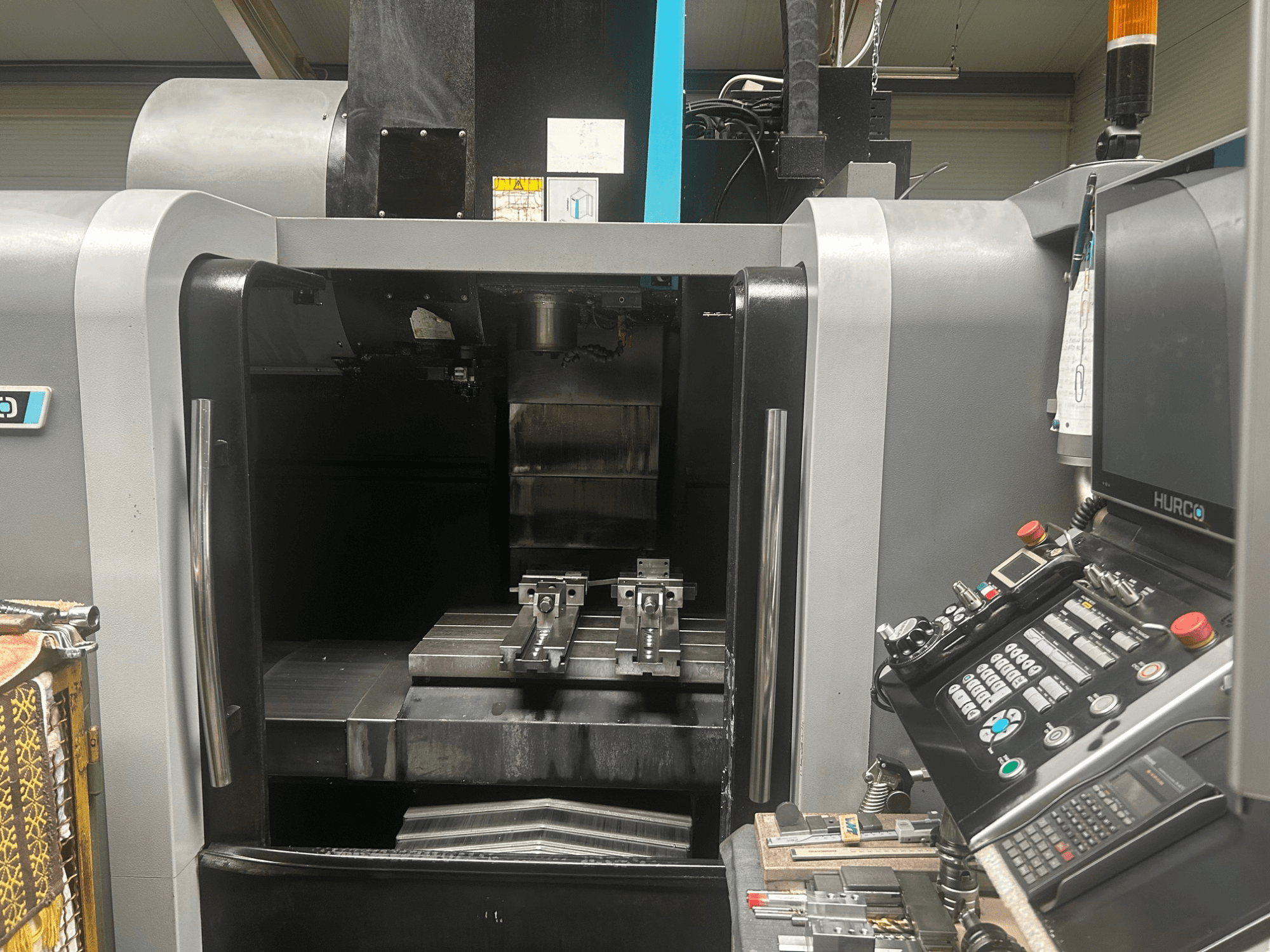

Hurco CNC machining center front view, showing tool holder, metal workpiece, and control panel with buttons and display.
Hurco CNC machining center front view, showing tool holder, metal workpiece, and control panel with buttons and display.

Hurco - VM10iHU-MIL-HUR-2016-00003

Rs. 4,194,937
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Hurco VM10i was manufactured in 2016. It features a robust table size of 760 × 406 mm, capable of handling a maximum load of 500 kg. The spindle can reach speeds up to 10,000 rpm, supported by a 7.5 kW motor. It includes an automatic tool changer with a capacity of 20 tools. Ideal for precision machining with rapid traverse rates of 36 m/min. Contact us for more information about this machine.

Overview

  • brand: Hurco
  • year: 2016
  • MODEL: VM10i
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre

Technical Information - Hurco VM10i

Dimensions

  • Machine Depth: 2100 mm
  • Machine Height: 2600 mm
  • Machine Weight: 3400 kg
  • Table Load: 500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 660 mm
  • Y-axis Travel: 406 mm
  • Z-axis Travel: 508 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Speed: 10000 RPM

Additional Information

  • Table: 760 × 406 mm

  • Through-spindle coolant optional

  • Feed rates: cutting up to 20 m/min

  • Tool changer: Automatic carousel

  • Accuracy: Positioning ±0.005 mm; repeatability ±0.003 mm

  • Control: Hurco WinMax CNC; 19" touchscreen, dual-screen interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
