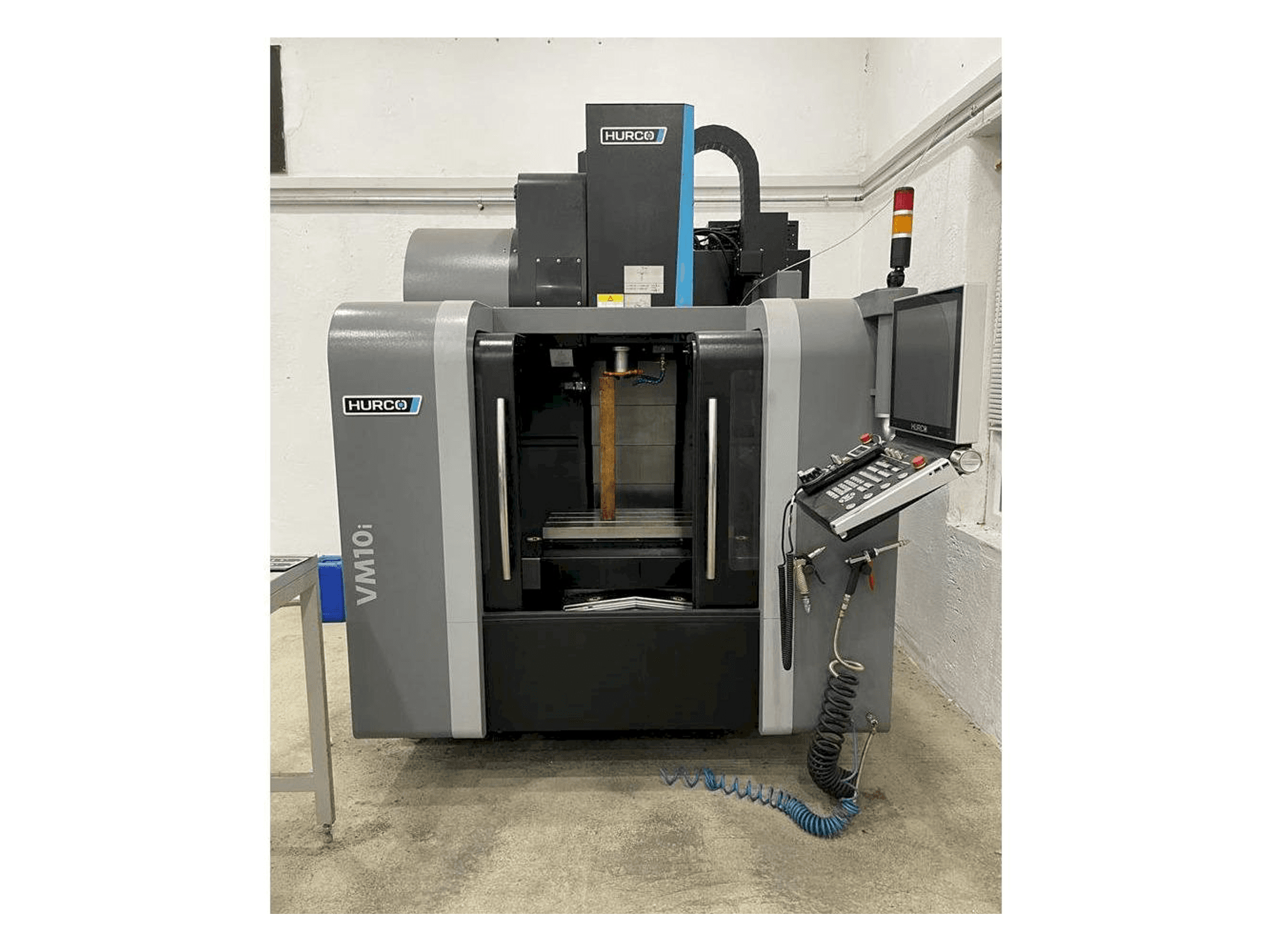

HURCO VM 10 i Vertical Machining center

Show in original language

This HURCO VM 10 i Vertical Machining center was manufactured in the year 2017 and has 500 production hours. It is equipped with a HURCO control unit. The machine has a spindle speed of 12000 rpm, is in perfect condition and well maintained.

Overview

brand: Hurco
year: 2017
MODEL: VM 10 i
production hours: 500
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: HURCO

Technical Information - Hurco VM 10 i

Control Unit

Control Brand: HURCO

Dimensions

Machine Depth: 2931 mm
Machine Height: 2530 mm
Machine Weight: 2818 kg
Table Length: 762 mm
Table Load: 1500 kg
Table Width: 406 mm

Movement

X-axis Travel: 660 mm
Y-axis Travel: 406 mm
Z-axis Travel: 8 mm

Technical Specification

Max. Tool Weight: 7 kg
Number of Tools: 24
Spindle Power: 11 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle torque (peak - 1 min) 54. 3 ft. Lbs @ 1450 rpm (73. 6 nm @ 1450 rpm)
Spindle nose to table min. /max. 4 / 24 in (101. 6 / 609. 6 mm)
T-slot size 3 x 0. 71 in (3 x 18 mm)
Rapid traverse x,y,z axis 1100, 1100, 1100 in/min (28, 28, 28 m/min)
Max programmable feedrate 1102 inches/minute (28 m/minute)
Full load 15 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
