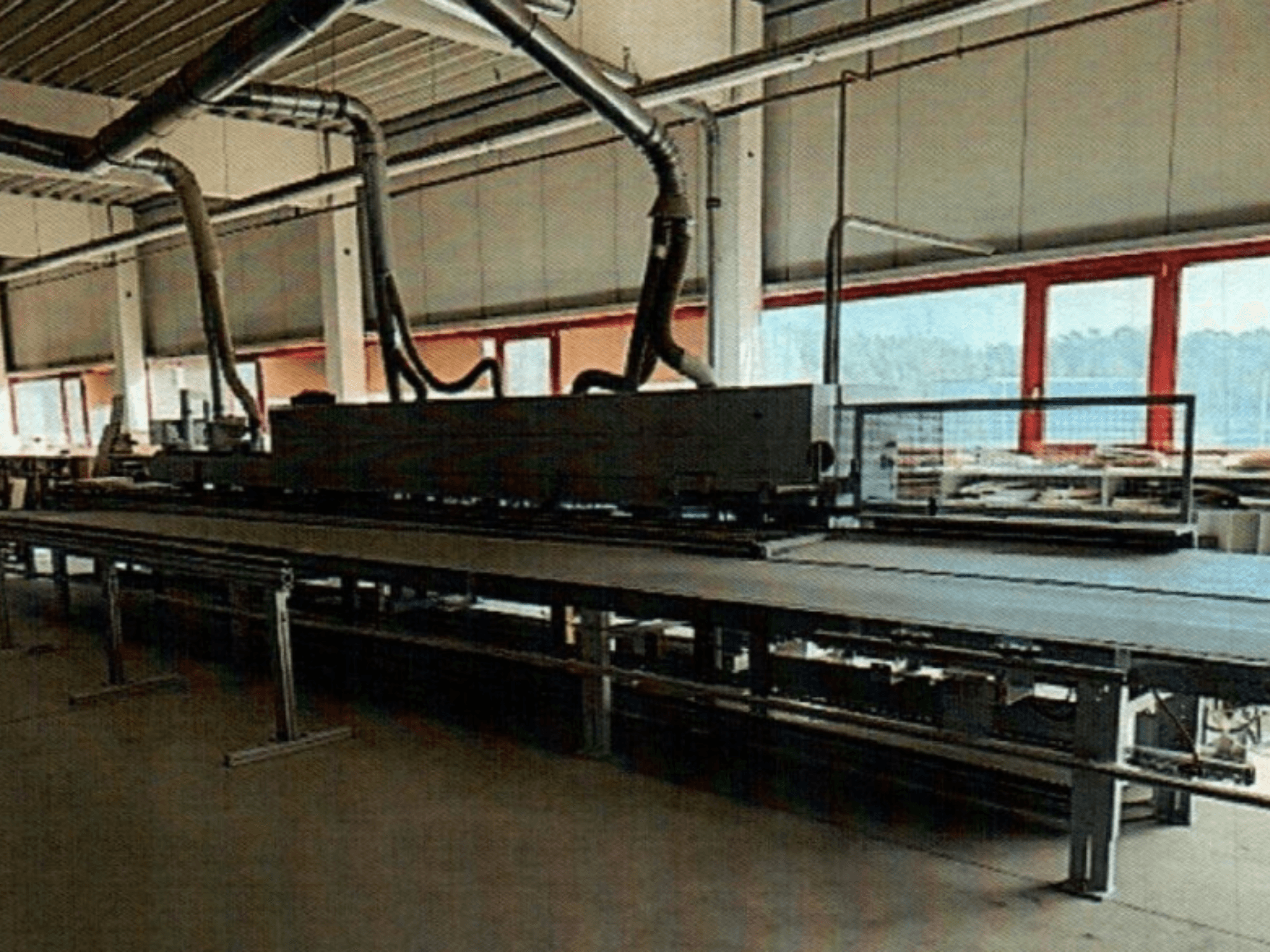

HOMAG - KAL 370DE-EDG-HOM-2016-00001

• Feed speed: Continuously adjustable 18–20 m/min

• Fixed stop side: Left

• Workpiece thickness: 8–60 mm

• Workpiece overhang: 30 mm

• Throughput equipment: Pre-installation for Boomerang TFU140

• Feed lock: Available

• Feature packages: Future-Paket 5; Foil/High-Gloss Package (bottom)

• Infeed features: Sliding carriage; Workpiece alignment at infeed; Workpiece support with roller track; Infeed barrier

• Workpiece transport: Transport device; Top pressure

• Cleaning/Prep: Release agent spraying unit (top/bottom)

• Jointing/Milling: Joint trimming unit; I-System-DIA jointing cutter set WD60; Workpiece pre-heating (up to 60 mm thickness)

• Gluing: Gluing unit; Preparation for Airtec activation unit; Adhesive application system; Application units QA60 and PU60; Pressure tank for PU application unit

• Magazine/Pressure: Edge magazine; Pressure zone

• Spraying: Lubricant spraying unit (top, bottom, side)

• Trimming/Milling: Snipping unit HL81 (bevel/straight, 0.8 kW); Pneumatic adjustment for flush/overhang trimming; Pre-milling unit BF10; HM milling cutter set (straight); Form milling unit FK11

• Tooling/Changeover: I-Exchange head system (automatically adjustable/FK); I-DIA radius cutter set (for FK, R=2 mm, Z=4); Standard milling unit SF21; Multi-profile scraper MN21 (automatic); Profile knife set for MN20/21

• Additional units: Joint scraper FA20 BASIC; Automated scanning for joint FA20; Buffing unit FA06 (top/bottom); Powercontrol PC23 Powertouch

• Control/Software: Software package WoodCommander; Antenna sequence control; Machine data acquisition and evaluation; Error diagnosis; Teleservicenet-soft

• System/Networking: Emergency stop interlock; Network connection (Ethernet); Manual control for setup mode; Language: German

• Documentation: On data carrier and paper

Additional equipment

• Boomerang return system TFU140/20/08-Optimat

• Workpiece detection (sensor-based)

• Basic outfeed return line

• CE for cells (systems)
