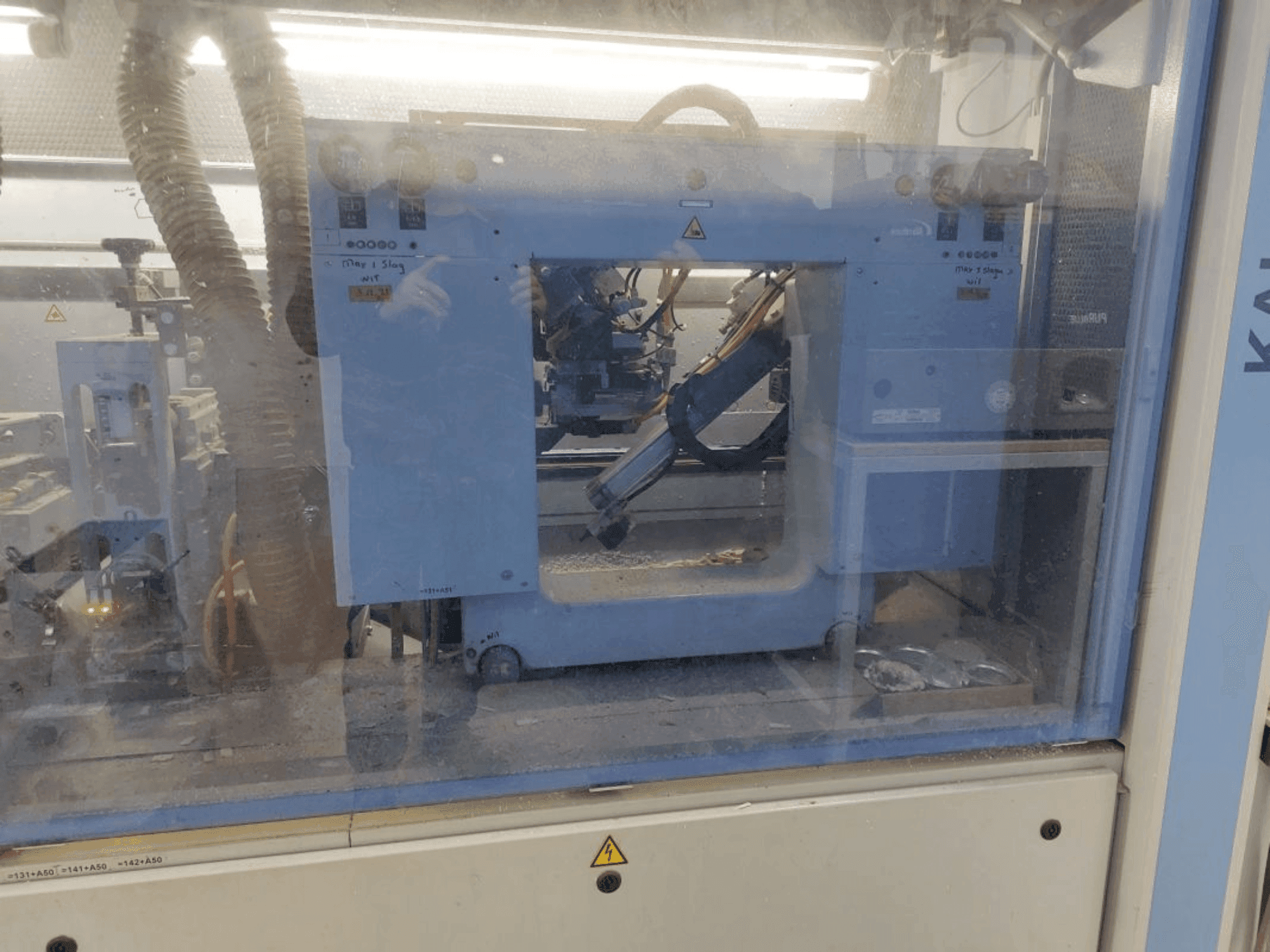

HOMAG - KAL 330/9/A6/LDE-WOO-HOM-2011-00001

Additional equipment

• - Basic machine setup
• - Adjustable infeed ruler
• - Pneumatically controlled infeed lock
• - Workpiece transport device
• - Gluing unit A20 basic
• - Pressure zone C
• - Free space for additional processing units

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Transport chain with rubber pad, 80 mm wide
  • - Workpiece support with roller rail, extendable by approx. 800 mm
  • - Feed rate: 18 m/min (optional; 18-25 / 18-32 m/min)
  • - Working height: 950 mm
  • - Pneumatic connection: 6 bar
  • - Workpiece thickness: 12-22 mm-60 mm, 23-60 mm-100 mm
  • - Workpiece stock: 30 mm
  • - Workpiece thickness: 12-60 mm
  • - Edge material roll: 0. 3-3 mm2
  • - Edge cross-section max: for pvc: 135 mm2. For veneer: 100 mm2
• Qualitative Machine Benefits:
  • - Magnetically braked transport chain
  • - Noise protection for joining and aggregate part with individual extraction
  • - Roll diameter max: 830 mm2
  • - Edge cross-section max. For strips: 900m2
  • - Free space for the installation of a joint trimming unit
  • - Gluing unit a20 basic: workpiece preheating, for heating the edge of the workpiece before glue application and to improve the gluing quality
  • - Quickmelt application unit: electronic temperature control with led display; glue temperature reduction automatically when work is interrupted (time freely selectable); melting capacity up to max. 12 kg / h ; glue roller drive during feed stop ; glue container lift at feed stop ; glue container clamping workpiece-operated
  • - Magazine 1 roll: for solid edges, strips and rolls; automatic strip separation via vacuum suction cup; 1 edge feeder; roll separating device; edge monitoring with feed stop; edge sequence control for preselecting the edge channels in any sequence. If an edge channel is empty, the next selected channel is activated (with multiple magazine)
  • - Pressure zone c: 1 driven pre-press roller diameter 150 mm; 6 holding rollers diameter 70 mm; pneumatic pressure adjustment; central adjustment to different edge thicknesses
  • - Electrical equipment: - operating voltage 400 volt, 50/60hz - mounted switch cabinet - installed in accordance with european standard en 60204 - electronic frequency converter with motor braking function - country-specific operating voltage adjustment via transformer (optional) - rcd protection circuit only permissible in conjunction with an all-current sensitive/selective rcd. If the performance of this device is not sufficient, we recommend using a residual current monitoring device on site - prescribed ambient temperature: + 10 to + 40 ° c

Extra information

• - Machine still under power
