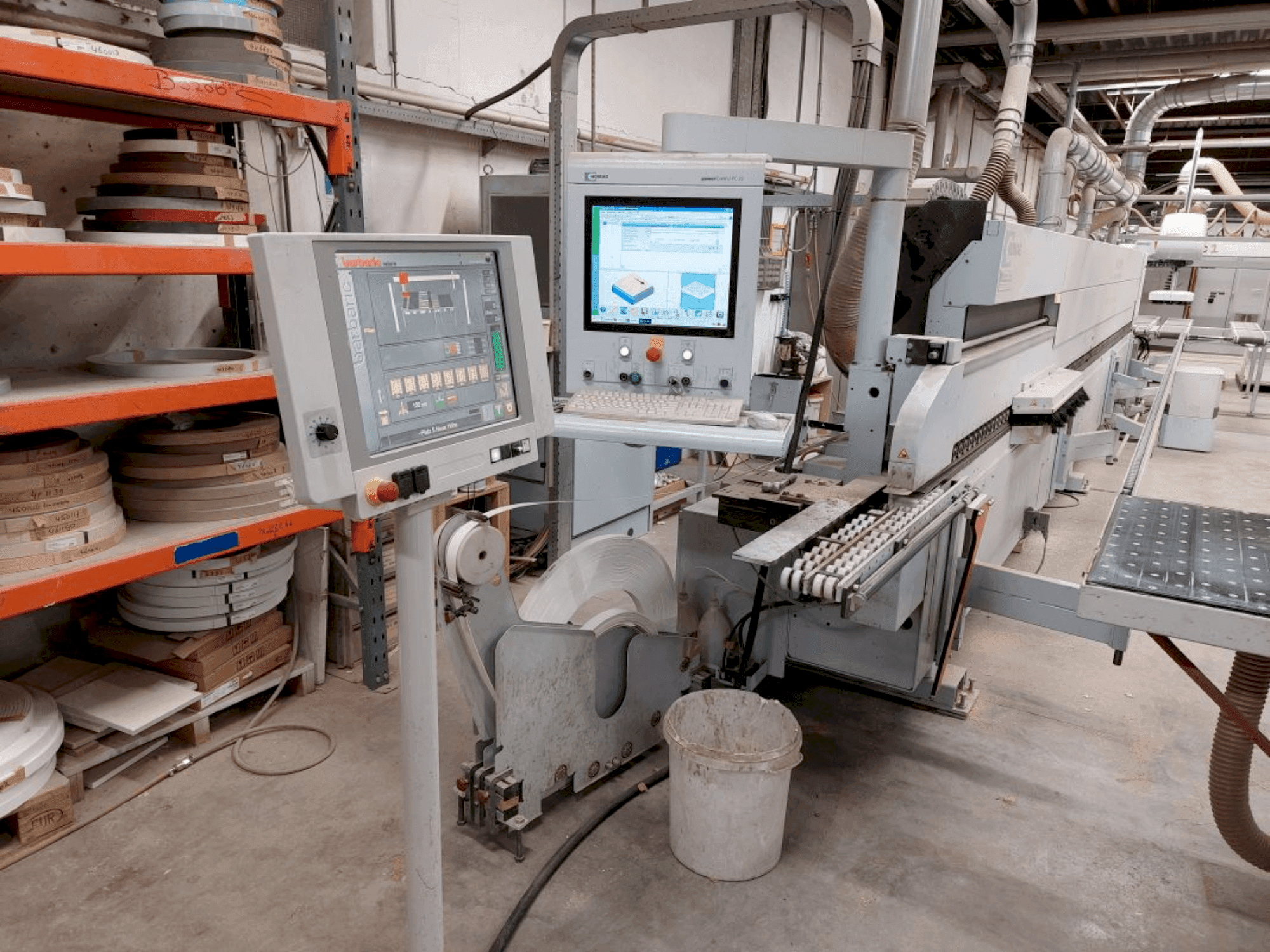

HOMAG - KAL 330/9/A6/LDE-EDG-HOM-2011-00001

Additional equipment

• Pneumatically controlled infeed stop // Pneumatic pressure adjustment with driven pre-press roller and post-pressing rollers
• Top pressure with composite V-belt drive
• Transport chain with rubber pad, magnetically braked
• Workpiece support with extendable roller rail
• Noise protection with individual extraction
• Quickmelt application unit with electronic temperature control
• Magazine for solid edges, strips, and rolls
• Automatic strip separation via vacuum suction cup
• Edge monitoring with feed stop and edge sequence control
• Mounted switch cabinet with electronic frequency converter

Machine Benefits

Qualitative Machine Benefits

• Improved gluing quality, consistent processing

Technical Machine Benefits

• Laser safety device with laser certificate protection class 1
• Portal return barbaric
• Manual changeover from lasertec to pu/eva
• Enhanced glue application, efficient material handling
• Basic machine design includes a continuous machine stand for mounting processing units.
• Fixed stop side left, painted gray rds 240 80 05.
• Adjustable infeed fence, with noise protection for joining and aggregate part.
• The machine is designed for straight workpiece edges and not for softforming.
• Includes an oscillating laser beam for melting the laser activation layer on the edgeband material.
• The laser beam wavelength is 980 nm.

Extra Information

Specific ground conditions must comply with the foundation plan. The machine comes with documentation on CD-ROM, with operating and maintenance instructions also available in printed form. Electrical equipment operates at a voltage of 400 Volt, 50/60Hz and includes a mounted switch cabinet. The prescribed ambient temperature is from 10 to + 40 °C. Speed setting on the input unit with an infinitely variable feed rate controlled by frequency.
