HERMLE - C 32 UDE-MIL-HER-2017-00004

Rs. 33,983,189
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

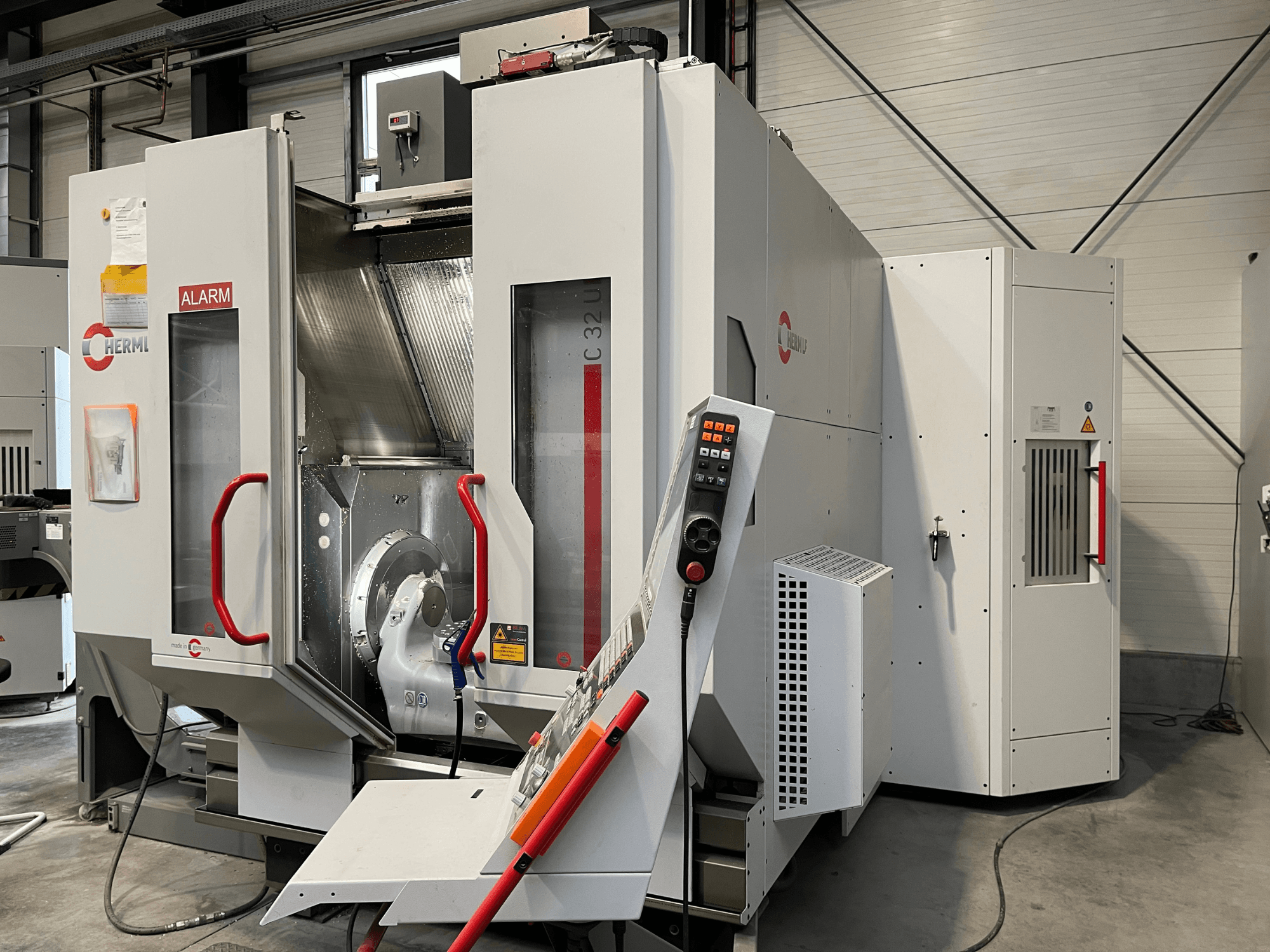

This 5-axis HERMLE C 32 U was manufactured in 2017. It features a maximum X-axis travel of 650 mm, Y-axis travel of 650 mm, and Z-axis travel of 500 mm. The machine is equipped with a spindle speed range of 20 - 18,000 rpm and a tool magazine capacity of 36 positions. If you are looking to get high-quality machining capabilities, consider the HERMLE C 32 U universal machining centre we have for sale. Contact us for further details.

Overview

  • brand: HERMLE
  • year: 2017
  • MODEL: C 32 U
  • production hours: 27660
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • Available from: 01/10/2026
  • control unit brand: HEIDENHAIN

Technical Information - HERMLE C 32 U

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 640

Dimensions

  • Machine Weight: 10500 kg
  • Table Load: 1000 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 650 mm
  • Y-axis Travel: 650 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Power: 20 kW
  • Spindle Speed: 18000 RPM
  • Taper Size: HSK 63
  • Tool Stations: 36

Additional Information

- Spindle Power (100%/20% ED): 10 / 20 kW

- Spindle Torque (100%/20% ED): 87 / 180 Nm

- Swivel Rotary Table Diameter: 650 x 540 mm

- Swivel Range (A-Axis): +/- 130°

- Swivel Range (C-Axis): 360°

- Tool Magazine Capacity: 36 positions (standard) + 50 positions (additional magazine)

- Rapid Traverse (X-Y-Z): 45 - 45 - 40 m/min

- Max Acceleration: 6 m/s²

- Internal Coolant Supply: 80 bar

- Coolant Tank Capacity: Main tank 100 L, IKZ tank 1100 L

- Power Consumption: 37 kVA (Nominal: 45 kVA)

- Supply Voltage: 400 V / 3PH / 50 Hz

- Nominal Current: 60 A

- Control Voltage: 24 V DC

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
