DECKEL MAHO DMU 80P hi-dyn

Photo Gallery

DECKEL MAHO - DMU 80P hi-dynDE-MIL-DEC-2005-00006

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DMU 80P hi-dyn For Sale | gindumac.com

Show in original language

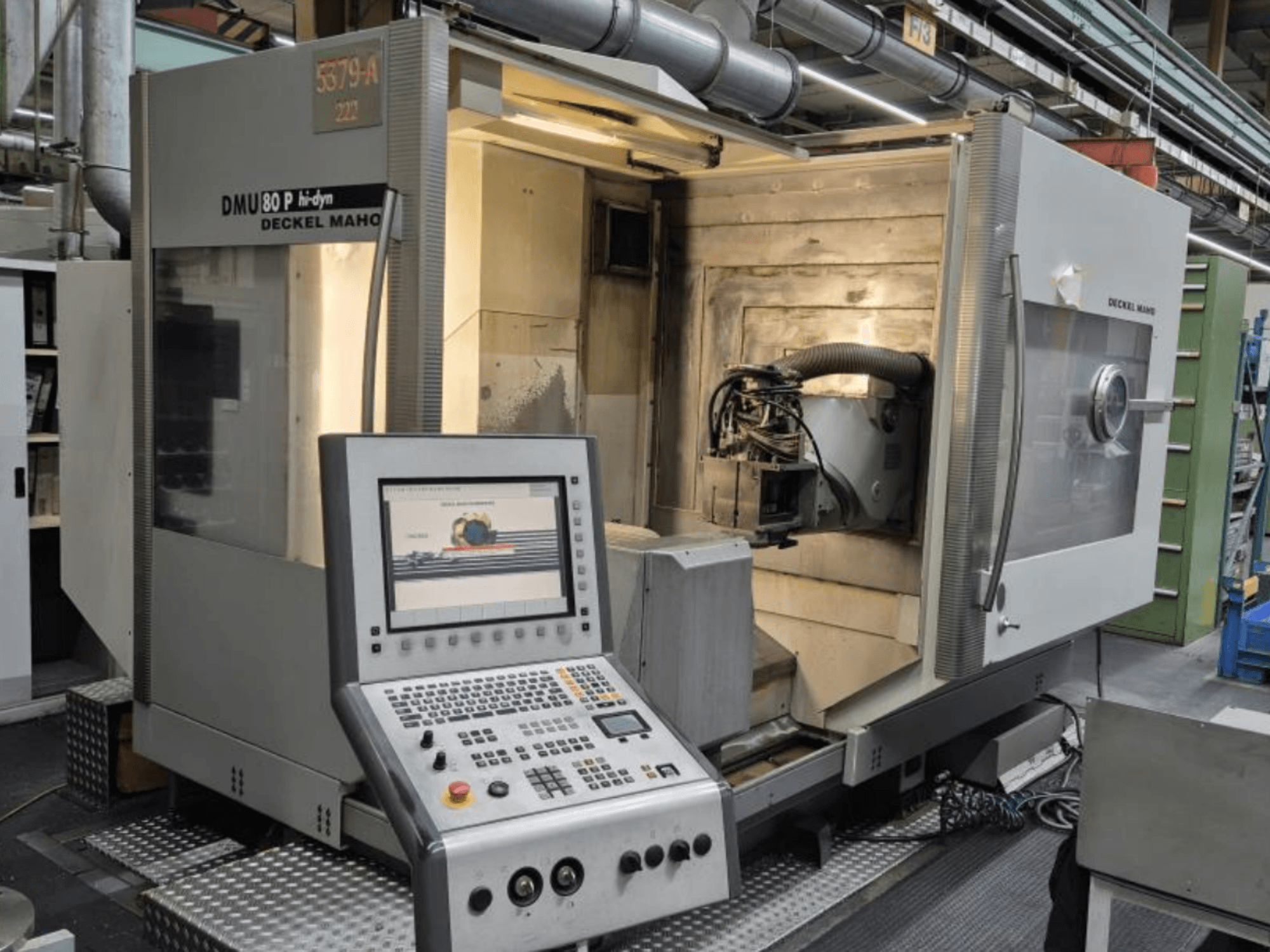

This 5-axis DECKEL MAHO DMU 80P hi-dyn was manufactured in 2005. It features impressive travels of 800 mm in X, 700 mm in Y, and 600 mm in Z. The machine is equipped with a Heidenhain iTNC 530 control and a maximum spindle speed of 6,300 rpm. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMU 80P hi-dyn universal machining centre we have for sale. Contact us for further details.

Overview

brand: DECKEL MAHO
year: 2005
MODEL: DMU 80P hi-dyn
production hours: 16700
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 80P hi-dyn

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Height: 2750 mm
Machine Length: 6600 mm
Machine Weight: 10200 kg
Table Load: 600 kg

Movement

Number of Axes: 5
X-axis Travel: 800 mm
Y-axis Travel: 700 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Power: 16 kW
Spindle Speed: 6300 RPM
Taper Size: SK 40

Additional Information

Spindle torque: 475 Nm (40% DC)
Tool changer: 60 positions (chain magazine)
Rapid traverse (X/Y/Z): 50 m/min
Feed rate (X/Y/Z): 50,000 mm/min
Table: NC swivel rotary table (d 630 mm)
Swivel range: -45° to +30°
Cooling: 40 bar internal coolant supply (IKZ) through spindle center
Power consumption: 50 kVA
Defect: Transmission damage

Additional equipment

Chip conveyor: Scraper belt type, discharge height 956 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
