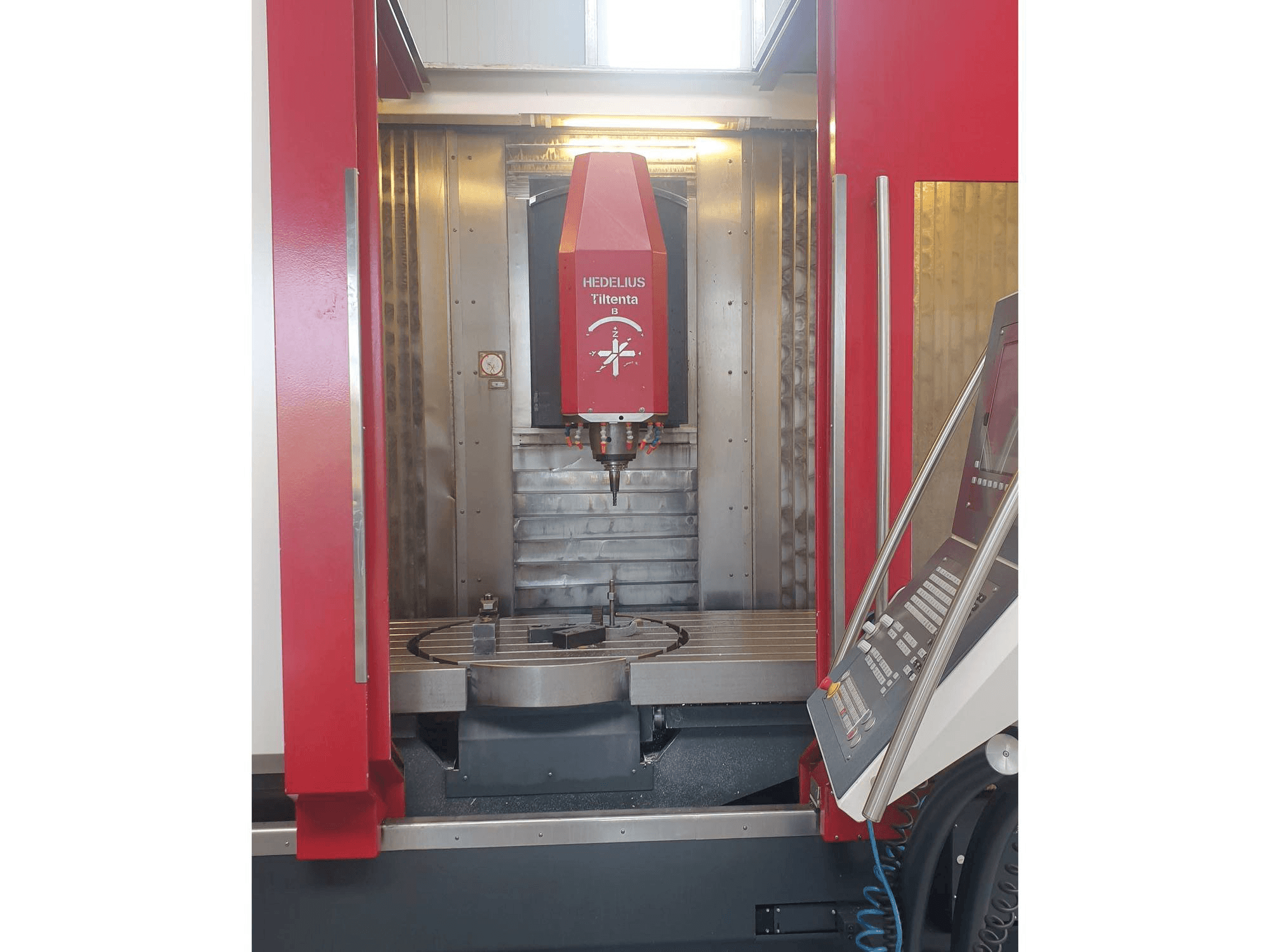

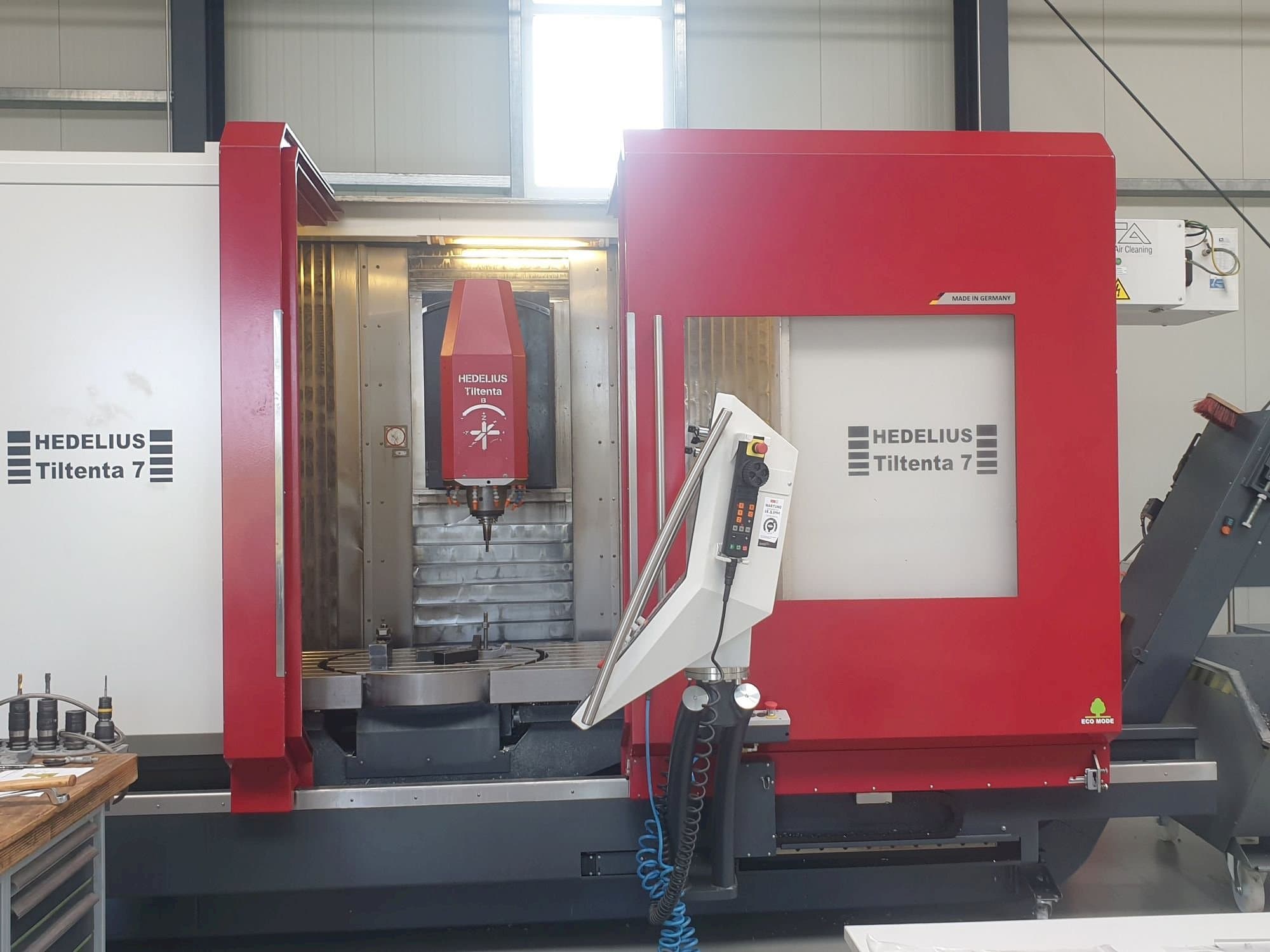

Front view of HEDELIUS Tiltenta 7 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HEDELIUS Tiltenta 7

HEDELIUS - Tiltenta 7DE-MIL-HED-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hedelius Tiltenta 7 Universal Machining center

Show in original language

This Hedelius Tiltenta 7 Universal Machining Center was manufactured in the year 2016 in Germany and has 17720 hours, of which 8236 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit. The machine has a spindle speed of 14000 rpm.

Overview

brand: HEDELIUS
year: 2016
MODEL: Tiltenta 7
production hours: 17720
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HEDELIUS Tiltenta 7

General Data

Measurements width: 6000 mm
Measurements depth: 3800 mm
Measurements height: 3400 mm
Machine weight: 12000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 14000 1/MIN
Tool taper: SK 40

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 695 / 800 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 1900 mm
Outer width: 750 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotary table: 750 mm
- - Spindle swivel range: -5/+98 º
- - Blown air through the spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
