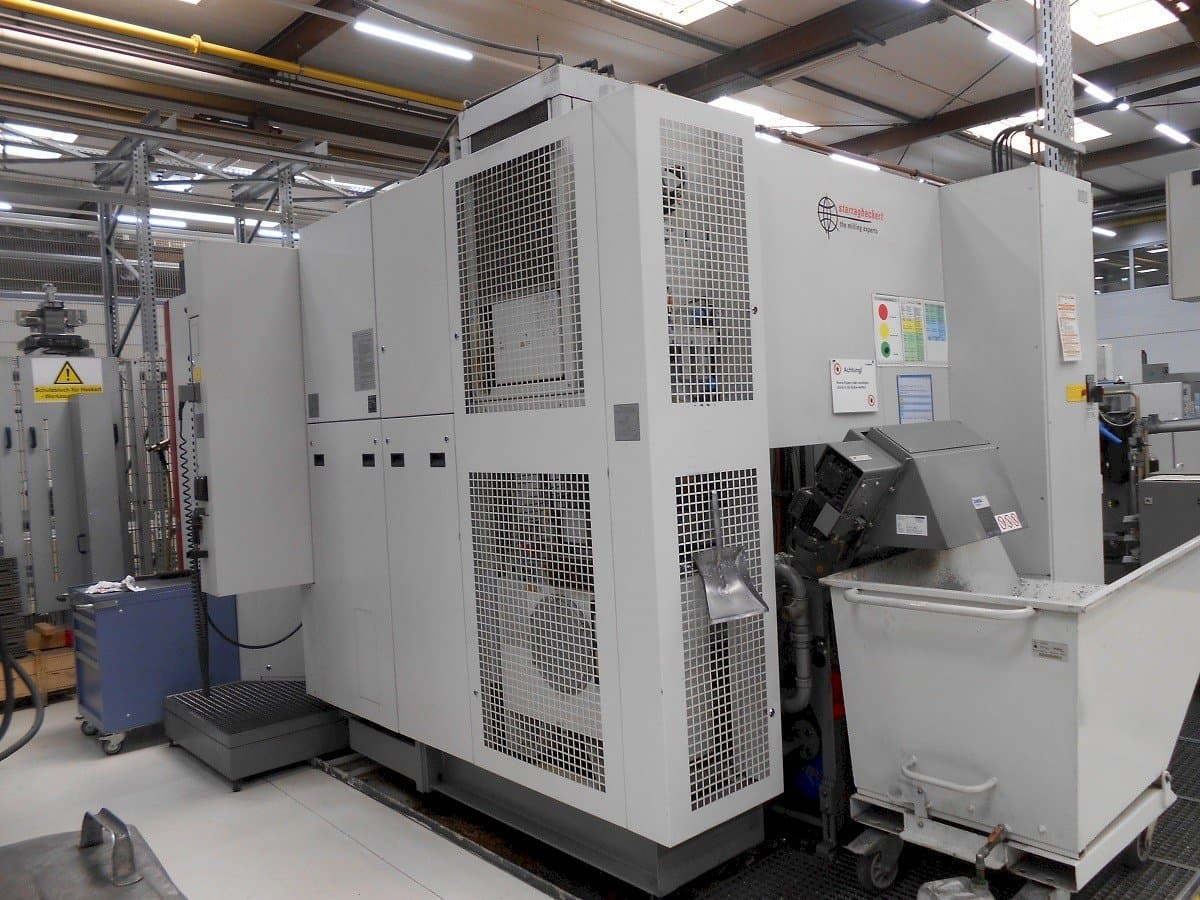

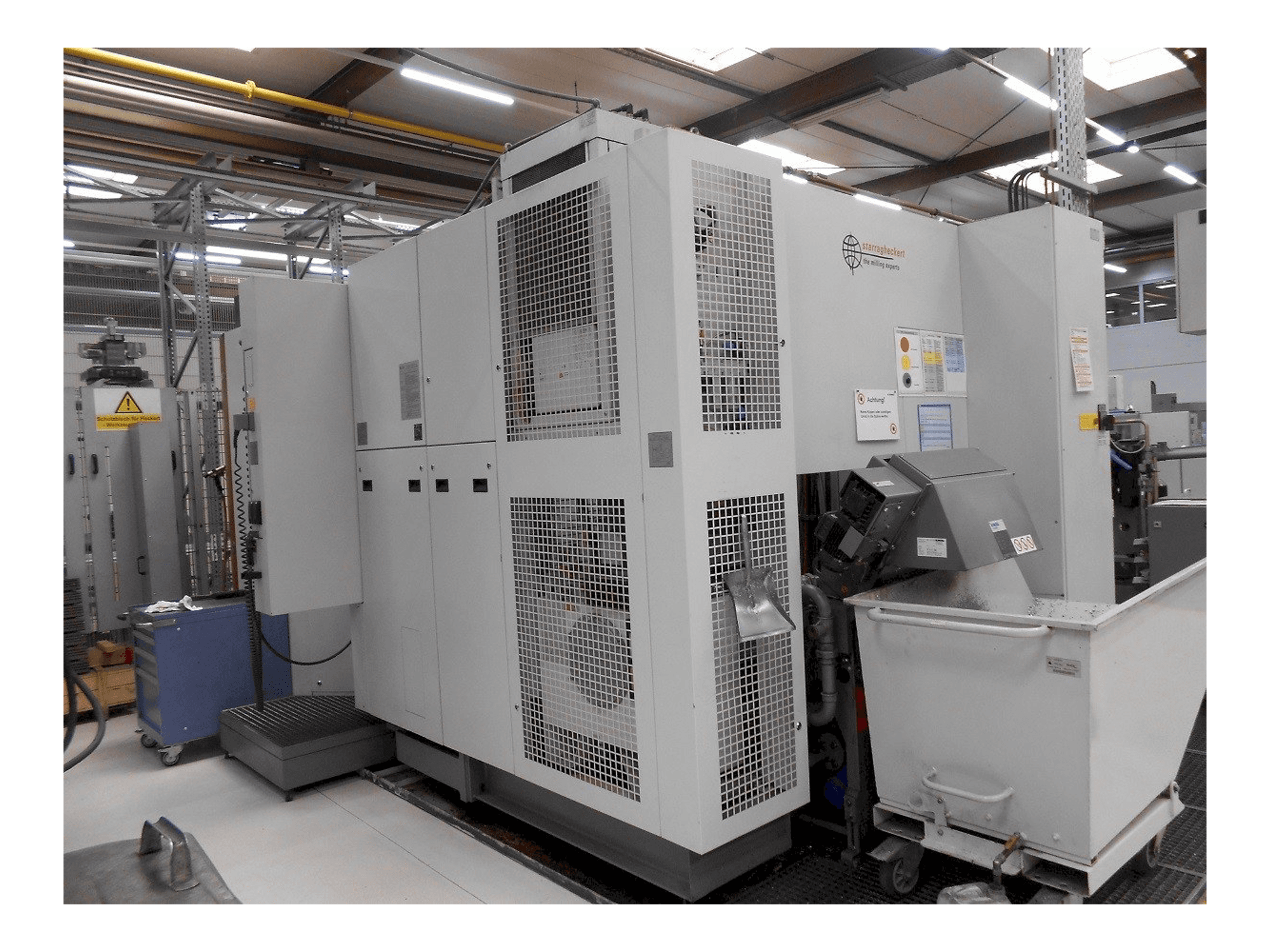

Left side view of Heckert HEC 500 D XXL machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Heckert HEC 500 D XXL

Heckert - HEC 500 D XXLDE-MIL-HEC-2007-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Heckert HEC 500 D XXL Horizontal Machining center

Show in original language

This Heckert HEC 500 D XXL Horizontal Machining Center was made in the year 2007 and has 23032 production hours. It is equipped with a SIEMENS Sinumerik 840 D control unit. It is equipped with increased drive power of up to 37 kW with max. spindle speed of 10000 rpm for heavy machining, (primarily for steel and cast iron) with reinforced column and hollow shaft motor.

Overview

brand: Heckert
year: 2007
MODEL: HEC 500 D XXL
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Heckert HEC 500 D XXL

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 10000 1/MIN
Tool taper: HSK-A63
Number of axis: 4

Table

Outer length: 500 mm
Outer width: 500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Additional pallets, 500x500mm
- - Increased drive power up to 37 kw
- - Row chain magazine, 320 storage locations
- - Coolant unit fleece gravity filter
- - Coolant temperature control including
- - Temperature compensation
- - Increase of coolant pressure to 80 bar
- - Emission extraction working chamber
- - Visiport electrical
- - Measuring probe renishaw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
