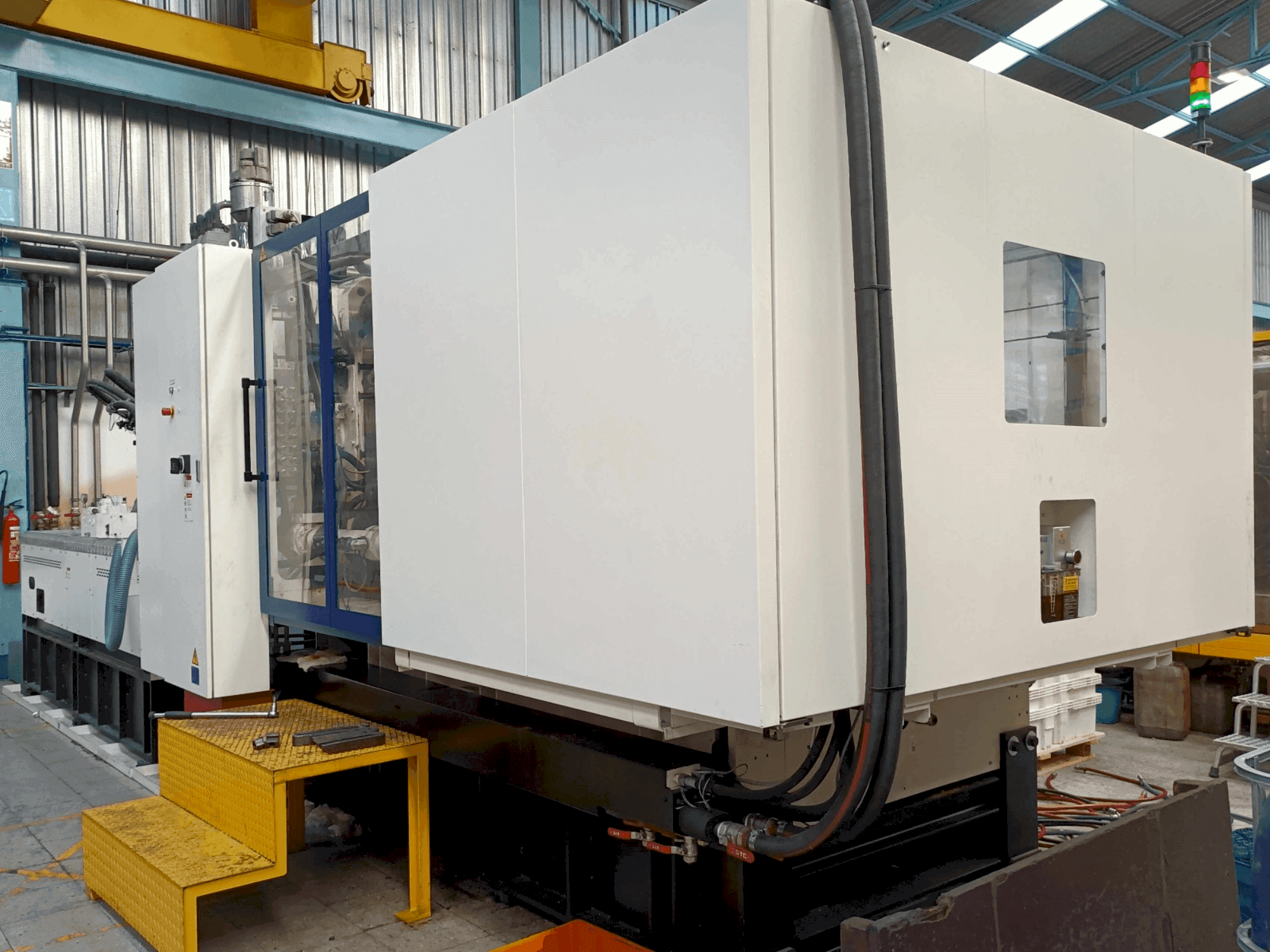

HAITIAN JU650II Injection moulding machine

Show in original language

This HAITIAN JU650II Injection moulding machine was manufactured in the year 2018 in China. The machine has a clamping force of 6500 kN and a screw diameter of 80 mm.

Overview

brand: HAITIAN
year: 2018
MODEL: JU650II
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine

Technical Information - HAITIAN JU650II

General Data

Measurements width: 9500 mm
Measurements depth: 2690 mm
Measurements height: 2990 mm
Machine weight: 28000 KG

Injection Unit

Screw diameter: 80 mm

Clamping unit

Clamping force: 6500 KN
Ejector force for / back: 110 KN

Additional Information

Machine Benefits

Qualitative Machine Benefits

Direct ejector 250 mm
Screw speed 0-135 r/min
Oil tank capacity 1130 l
Movement direct from the mold 600/1350
Direct injection 450 mm
Ejector number 21 pc
Minimum mold dimension (lxw) 728 x 637 mm

Technical Machine Benefits

Calculated injection volume 2262 cm3
Plasticization capacity (ps) 70. 9 g/s
Available die height (min:) 400 mm
Injection capacity (ps) 2058 g
Tie rod spacing (hxv) 1040 x 910 mm
Heating input power 50. 7 kw
Injection rate or frequency 498 g/s
Injection pressure 220 mpa
Available die height (max. ) 1150 mm
Daylight opening 1750 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
