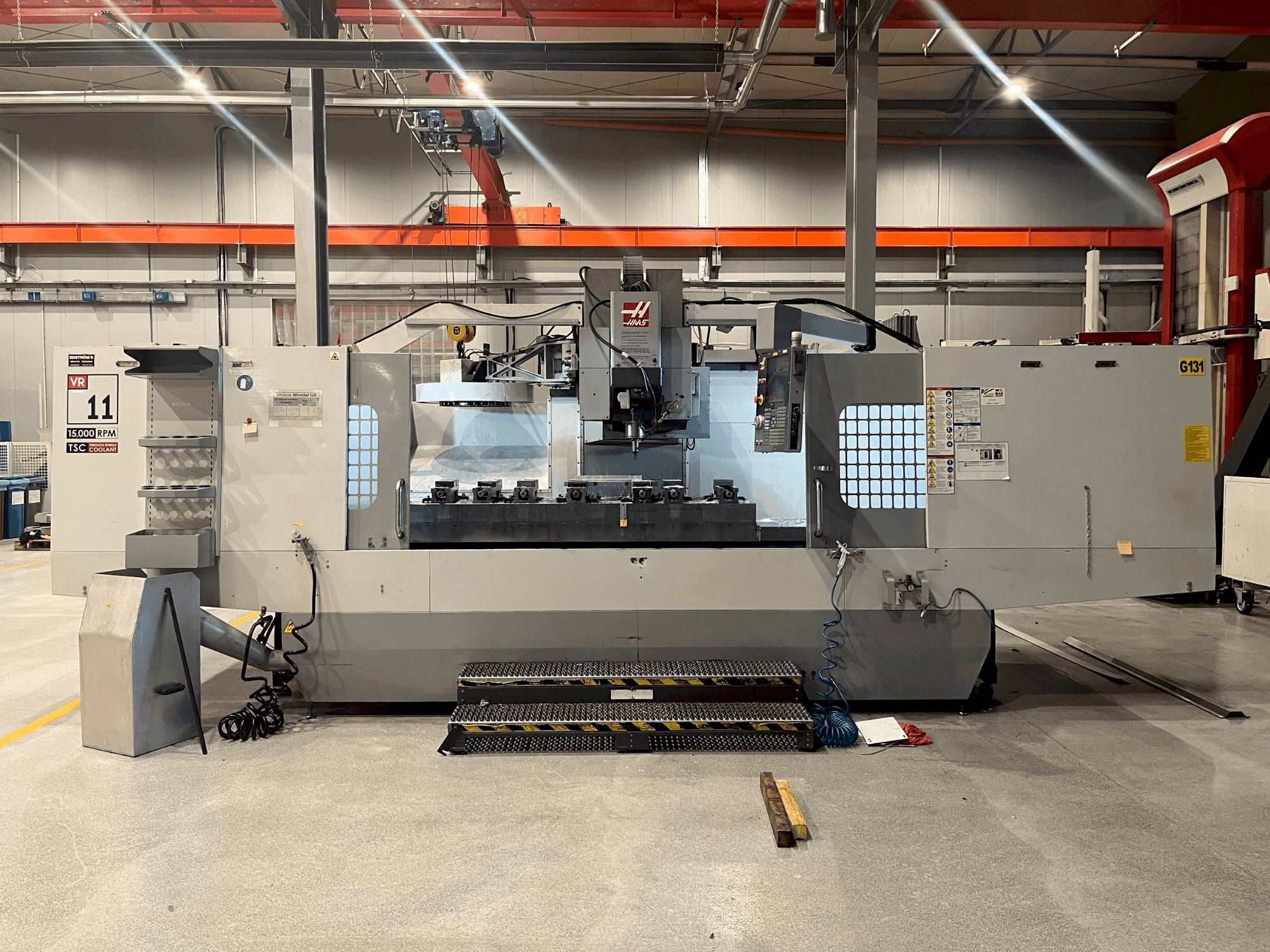

Front view of HAAS VR-11B  machine

HAAS VR-11B

HAAS - VR-11B

2003

Rs. 6,330,300
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis vertical machining center was manufactured in 2003. The HAAS VR-11 features extensive travel capabilities with 3050 mm in the X-axis, 1016 mm in the Y-axis, and 762 mm in the Z-axis, ensuring large-scale precision. It's equipped with a HAAS-based control unit for intuitive operation, a 15,000-rpm spindle for high-speed machining, and through-spindle coolant to enhance tool life and chip removal. Consider the HAAS VR-11 machine we have for sale for its advanced features and versatility. For more details, please contact us.

Overview

  • brand: HAAS
  • year: 2003
  • MODEL: VR-11B
  • application type: Milling
  • Location: Serbia
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: Haas
  • GINDUMAC ID: RS-MIL-HAA-2003-00001

Technical Information

Control Unit

  • Brand: Haas

Main drive

  • Spindle speed range: 15000 rpm 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 3050 MM
  • Y-AXIS Movement: 1016 MM
  • Z-AXIS Movement: 762 MM
  • A-AXIS Movement: ± 32° MM
  • B-AXIS Movement: ± 32° MM

Table

  • Outer length: 3050 mm
  • Outer width: 710 mm

    Additional equipment

    • - Additional Feature: Equipped with internal cooling.
    • - VR-118-5-Axis VMC 120" x 40" x 30" // 15K-VR11- 40 Taper, 30 hp
    • - 2010 VMC // 30-0496-SHIPPING KIT VF6-11
    • - 30-106998-95-Gallon Coolant Tank // 30-30090B-COMPLETE CLNT LVL FLOAT 2010
    • - 30-3117-TOTE KIT VF/VR-11 // 30-9158C-PLATFORM ASSY
    • - 8M-8 Spare M Functions // 91-0053-BARRIER BAG 431 X 504 //
    • - RTAP-3-Rigid Tapping
    • - TSC-Through-Spindle Coolant. 300 psi
    • - VR-118-SAP-VMC LARGE

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle taper: sk 40
        • - 8m-8 spare m functions
        • - Af-auxiliary coolant filter
        • - Expanded-memory-750 mb expanded memory
        • - Home second home position
        • - Hsm-high-speed machining
        • - Pcool-o-programmable coolant nozzle
        • - Rjh-c-remote log handle. Color lcd

      Extra information

      • - MACHINE STILL UNDER POWER

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
