HAAS VM-6

Photo Gallery

HAAS - VM-6FR-MIL-HAA-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HAAS VM-6 Vertical machining center

Show in original language

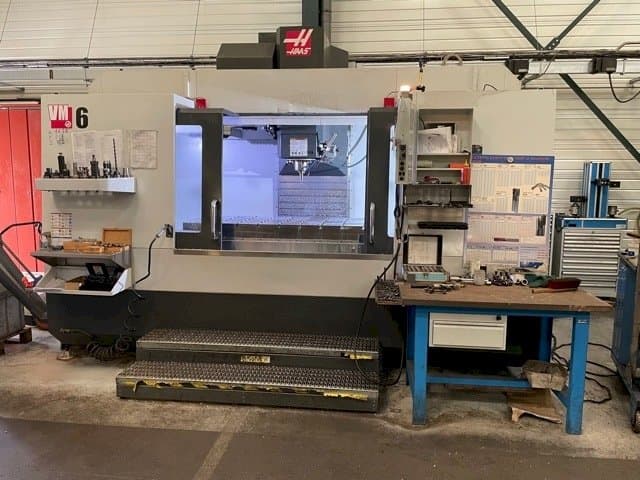

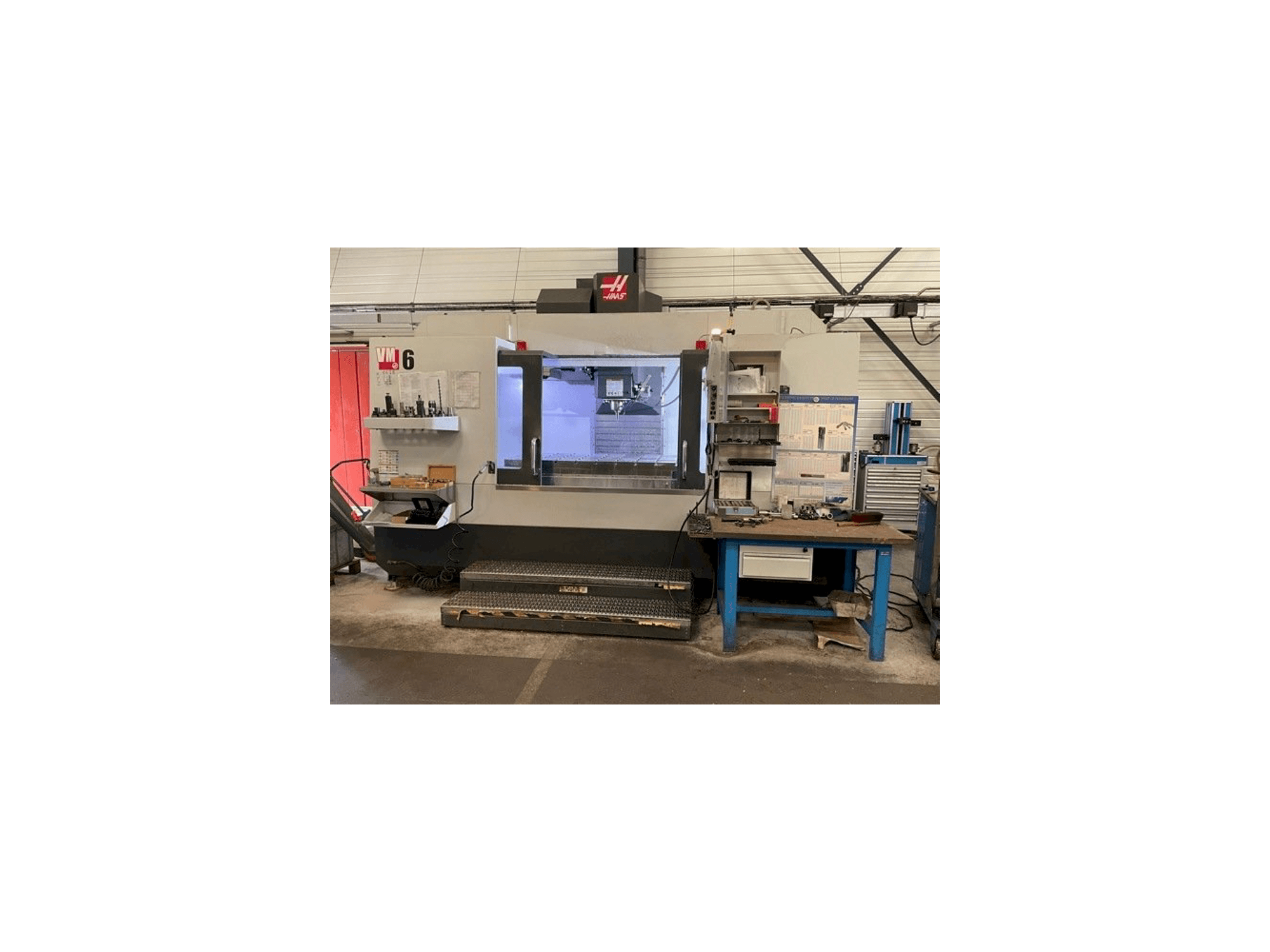

This HAAS VM-6 Vertical machining center was manufactured in the United States in the year 2015. This 3 axis machine is operated through a control unit of the same brand. It has a spindle speed up to 12000 rpm. It has a 1620 x 710 mm table with a capacity of 1800 kg of table load. Machine in very good condition.

Overview

brand: HAAS
year: 2015
MODEL: VM-6
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VM-6

Control Unit

Control Brand: HAAS

Dimensions

Machine Weight: 11000 kg
Table Length: 1620 mm
Table Load: 1800 kg
Table Width: 710 mm

Movement

Number of Axes: 3
X-axis Travel: 1620 mm
Y-axis Travel: 810 mm
Z-axis Travel: 760 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in perfect working order

Technical Machine Benefits

Tapered spindle: bt 40
Cooling through the spindle: yes
Spindle nose / table distance 860 mm
Longitudinal travel 1620 mm
Cross travel y 810 mm, vertical travel z 760 mm
Rotary table (4th axis) no

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
