HAAS - VM-3PL-MIL-HAA-2012-00003

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

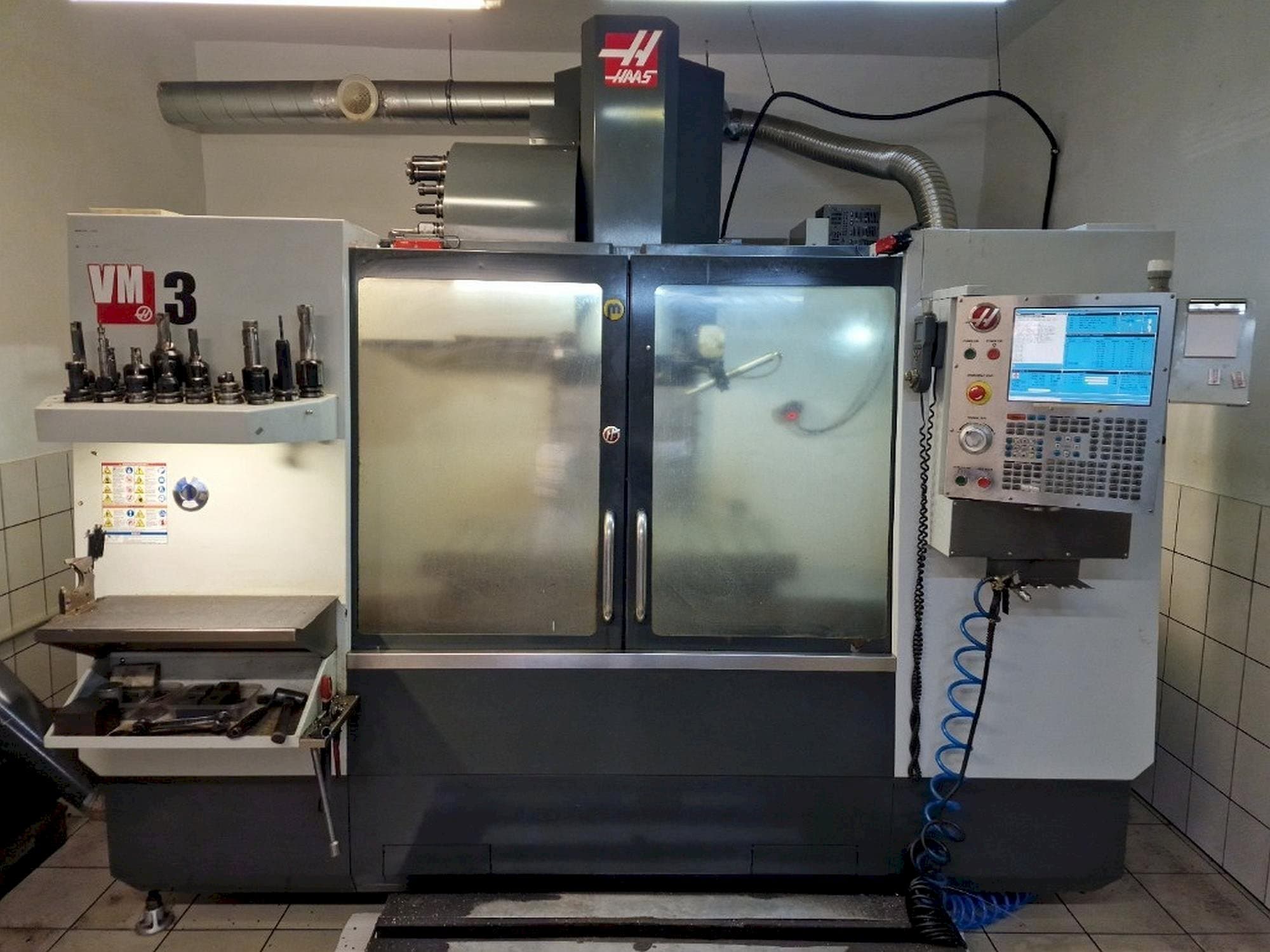

This HAAS VM-3 Vertical machining center was made in the United States in the year 2012. It is operated through a Haas control unit and has 3 axis. The machine has a spindle speed of 12000 rpm, is in very good condition.

Overview

  • brand: HAAS
  • year: 2012
  • MODEL: VM-3
  • production hours: 11157
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: HAAS

Technical Information - HAAS VM-3

Control Unit

  • Control Brand: HAAS

Dimensions

  • Machine Depth: 2600 mm
  • Machine Height: 2670 mm
  • Machine Weight: 7077 kg
  • Table Length: 1372 mm
  • Table Load: 1814 kg
  • Table Width: 610 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1016 mm
  • Y-axis Travel: 660 mm
  • Z-axis Travel: 742 mm

Technical Specification

  • Spindle Power: 22.4 kW
  • Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

  • Hsm and rigid tapping functions
  • The machine in working condition, ready for test
  • Full documentation available

Technical Machine Benefits

  • Spindle mount: sk40
  • Number of tool stations: 24 tools
  • Applications: for molds
  • Spindle type: in-line
  • Cooling trough the spindle: 20 bar
  • Max tool dim. : 330 mm
  • Max tool weight: 5. 4 kg
  • Tool-changing time: 2. 8 s
  • Programmable air and coolant nozzle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
