HAAS UMC-750

Photo Gallery

HAAS - UMC-750DE-MIL-HAA-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS UMC-750 - 2016 - Vertical Machining Center

Show in original language

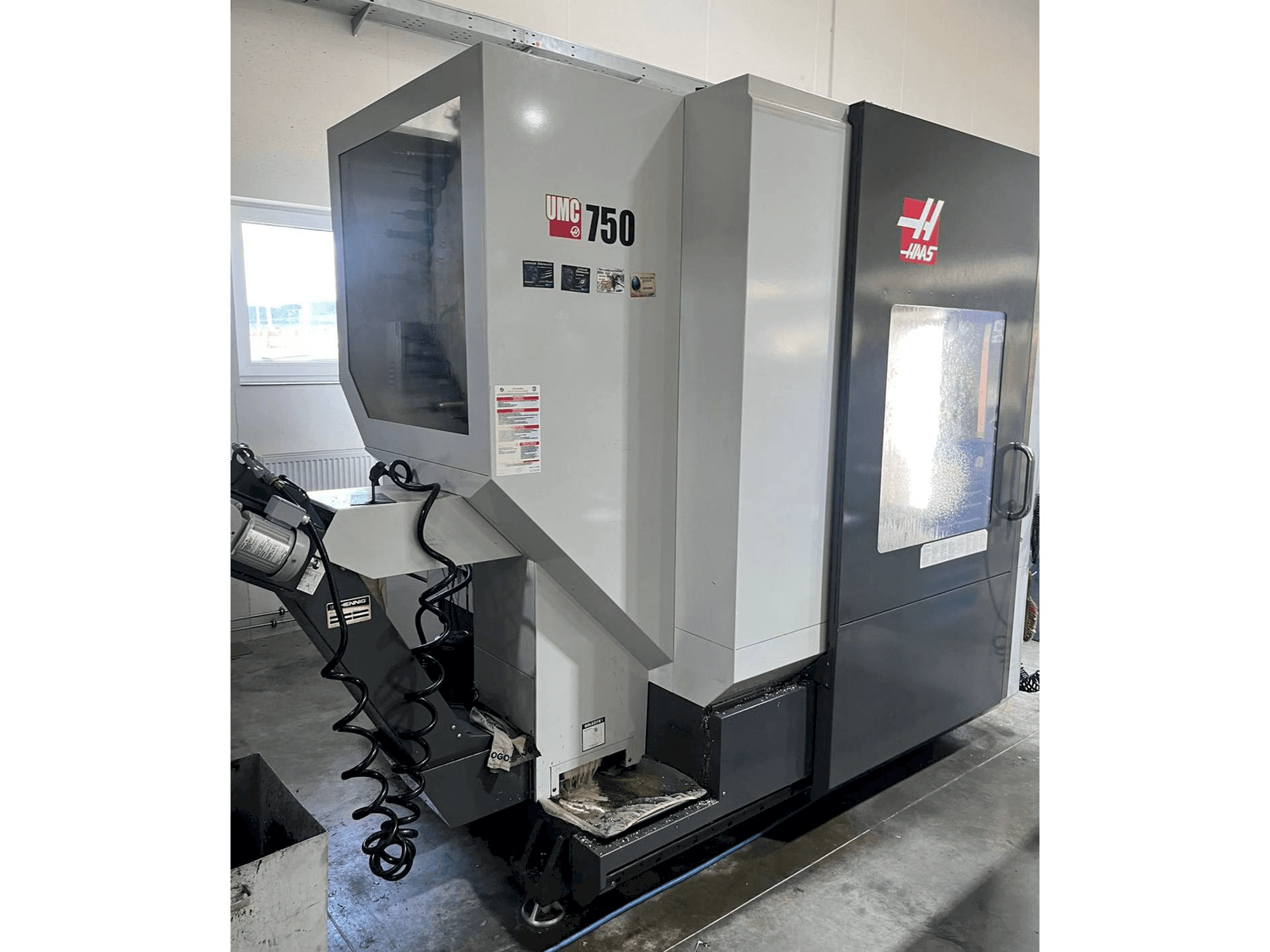

This HAAS UMC-750 Vertical Machining center was manufactured in the year 2016 in the United States. It is equipped with a HAAS control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: HAAS
year: 2016
MODEL: UMC-750
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC-750

Control Unit

Control Brand: HAAS

Dimensions

Machine Depth: 2387 mm
Machine Height: 2565 mm
Machine Weight: 8200 kg
Table Length: 500 mm

Movement

Number of Axes: 5
X-axis Travel: 762 mm
Y-axis Travel: 508 mm
Z-axis Travel: 508 mm

Technical Specification

Spindle Speed: 12000 RPM
Tool Stations: 40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition!
Programmable coolant nozzle

Technical Machine Benefits

C axis 360 degrees
B axis +110 degrees/-35 degrees
Min. -max. Height under spindle 102-610 mm
Feedrate 16. 5 m/min.
Spindle motor power 22. 4 kw
Rapid feedrate 30. 5 m/min.
Probing system
Usb port
High-speed machining
Extended memory 750 mb

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
