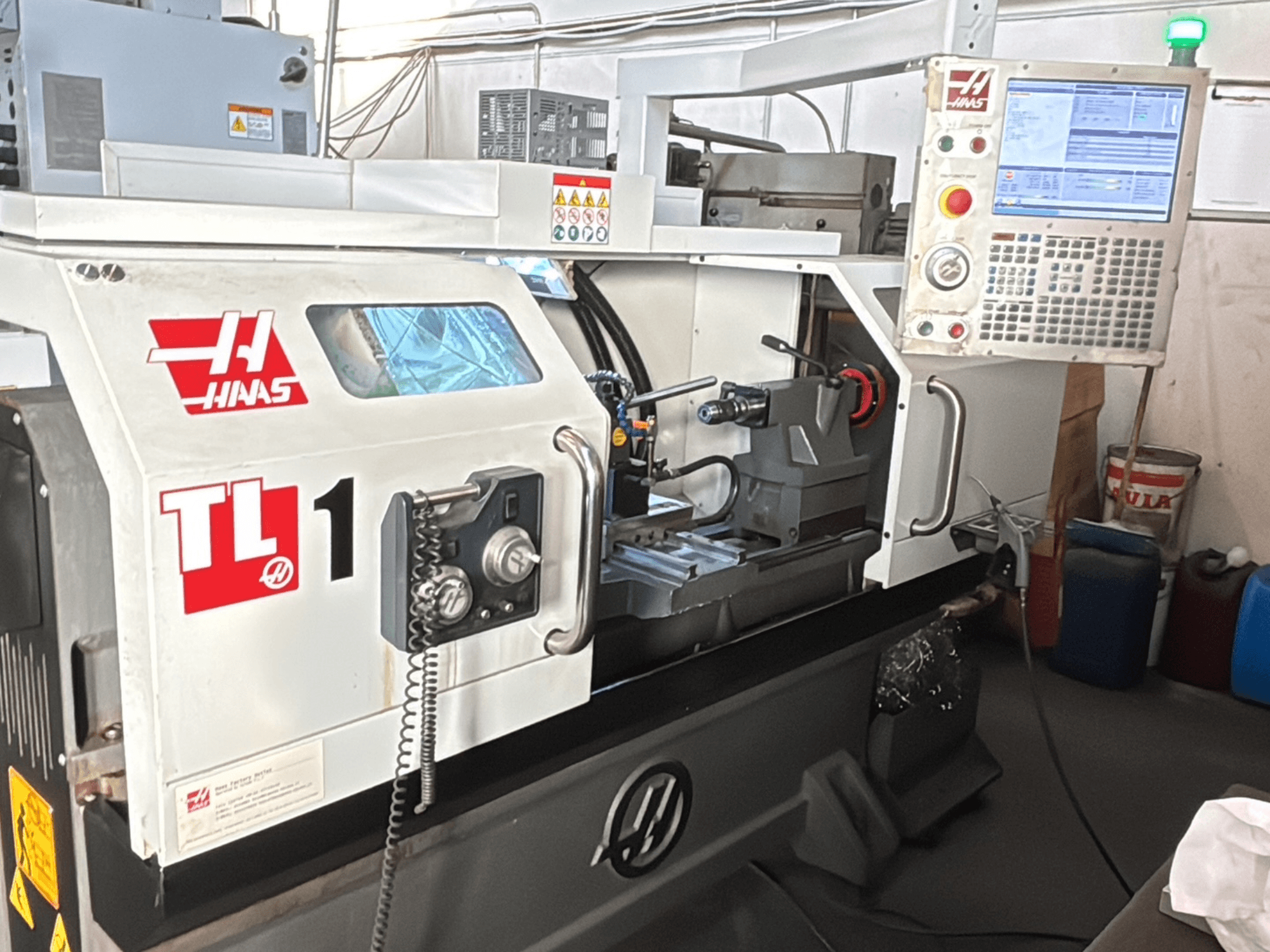

HAAS - TL1 IT-TUR-HAA-2020-00001

Swing diameter:

• Over front apron: 508 mm

• Over cross slide: 279 mm

Capacities:

• Chuck (optional): 203 mm

• Max cutting diameter (varies with turret): 406 mm

• Max cutting length (varies with workholding): 762 mm

• Between centers: 762 mm

Feedrates:

• Rapids X: 11.4 m/min

• Rapids Z: 11.4 m/min

Axis motor thrust:

• Max thrust X: 17,321 N

• Max thrust Z: 8,661 N

Spindle:

• Spindle nose: A2-5

• Spindle bore: 58 mm

• Max torque: 146 Nm @ 355 rpm

Air requirements:

• Inline air hose: 3/8 in

• Coupler: 3/8 in

• Minimum pressure: 5.5 bar

Electrical requirements:

• Drive system: Direct speed, belt drive

• Input AC voltage (1‑phase): 220 VAC; Full load amps: 40 A

• Input AC voltage (3‑phase, low): 220 VAC; Full load amps: 25 A

• Input AC voltage (3‑phase, high): 440 VAC; Full load amps: 13 A

Shipping:

• Pallet size (domestic & export): 234 × 176 × 211 cm
