HAAS TL-2

Photo Gallery

HAAS - TL-2ES-TUR-HAA-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

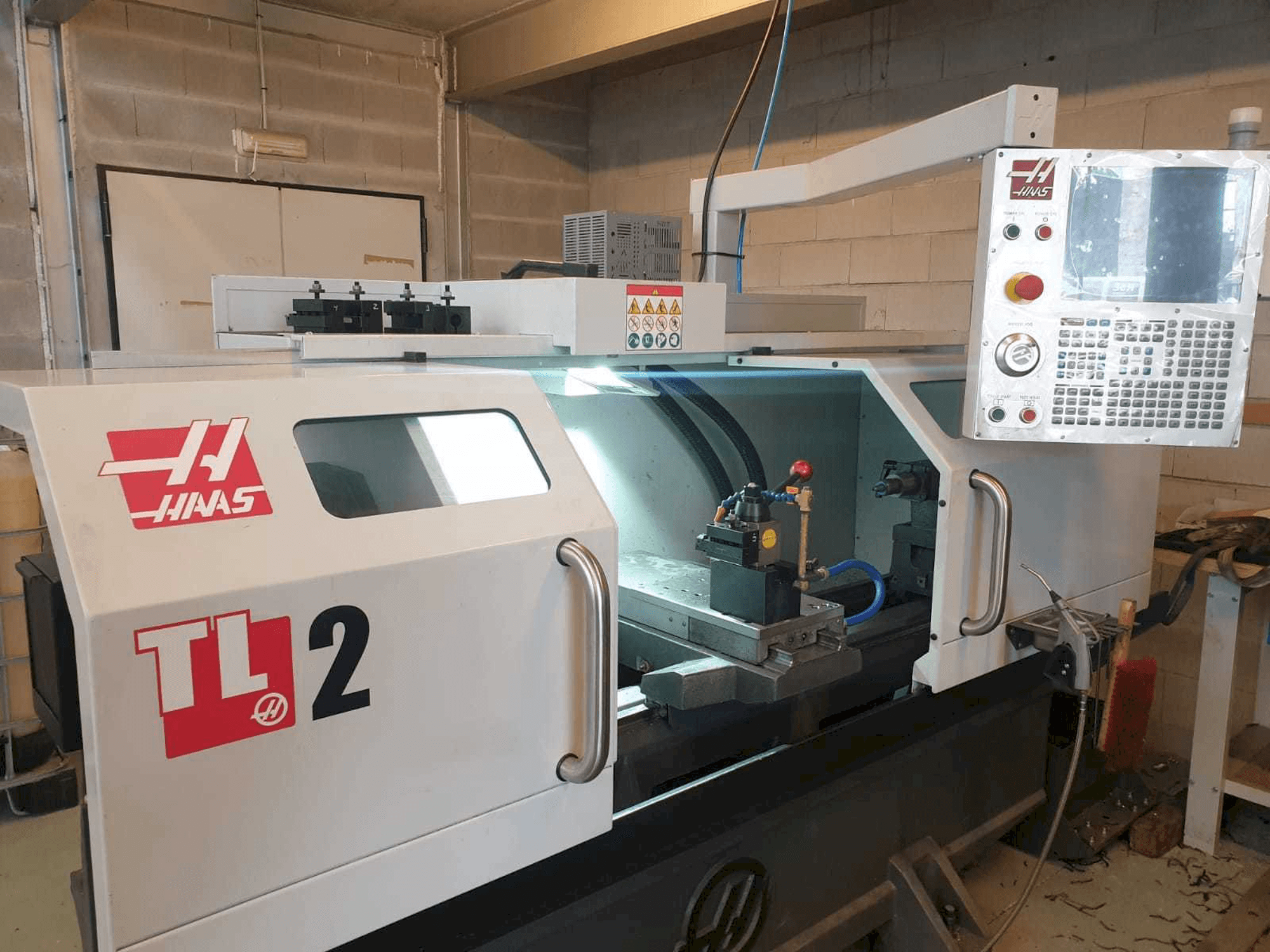

This HAAS TL-2 Lathe was built in the United States in 2019. It has a record of only 411 power on hours. This 2 axis machine is operated through a control unit of the same brand. It works with a spindle speed up to 1800 rpm and a bar hole 58 mm. Several additional equipment is included in the delivery of this machine.

Overview

brand: HAAS
year: 2019
MODEL: TL-2
production hours: 411
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS TL-2

General Data

Measurements width: 2760 mm
Measurements depth: 1740 mm
Measurements height: 2110 mm
Machine weight: 2677 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 1800 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 203 MM
Z-AXIS Movement: 1219 MM

Workpiece

Workpiece drm: 406 MM
Workpiece z: 1219 MM

Media

Main electronic connection: 400 V 50/60 HZ

Additional Information

Additional equipment

5 Tool holders
Manual steady rest, max. diameter 127 mm (SR-5)
Manual tailstock, shank MT4 (MTS)
Quik Changue tool post
Self-centring 3-jaw manual chuck 203 mm

Machine Benefits

Qualitative Machine Benefits

Very good condition
Little working hours (411 hours power on)

Technical Machine Benefits

Visual programming system vps
Bar hole 58 mm
Maximum working capacity Ø 406 mm x 1219 mm
Swing Ø 508 mm
A2-5 spindle nose
Intuitive programming system
