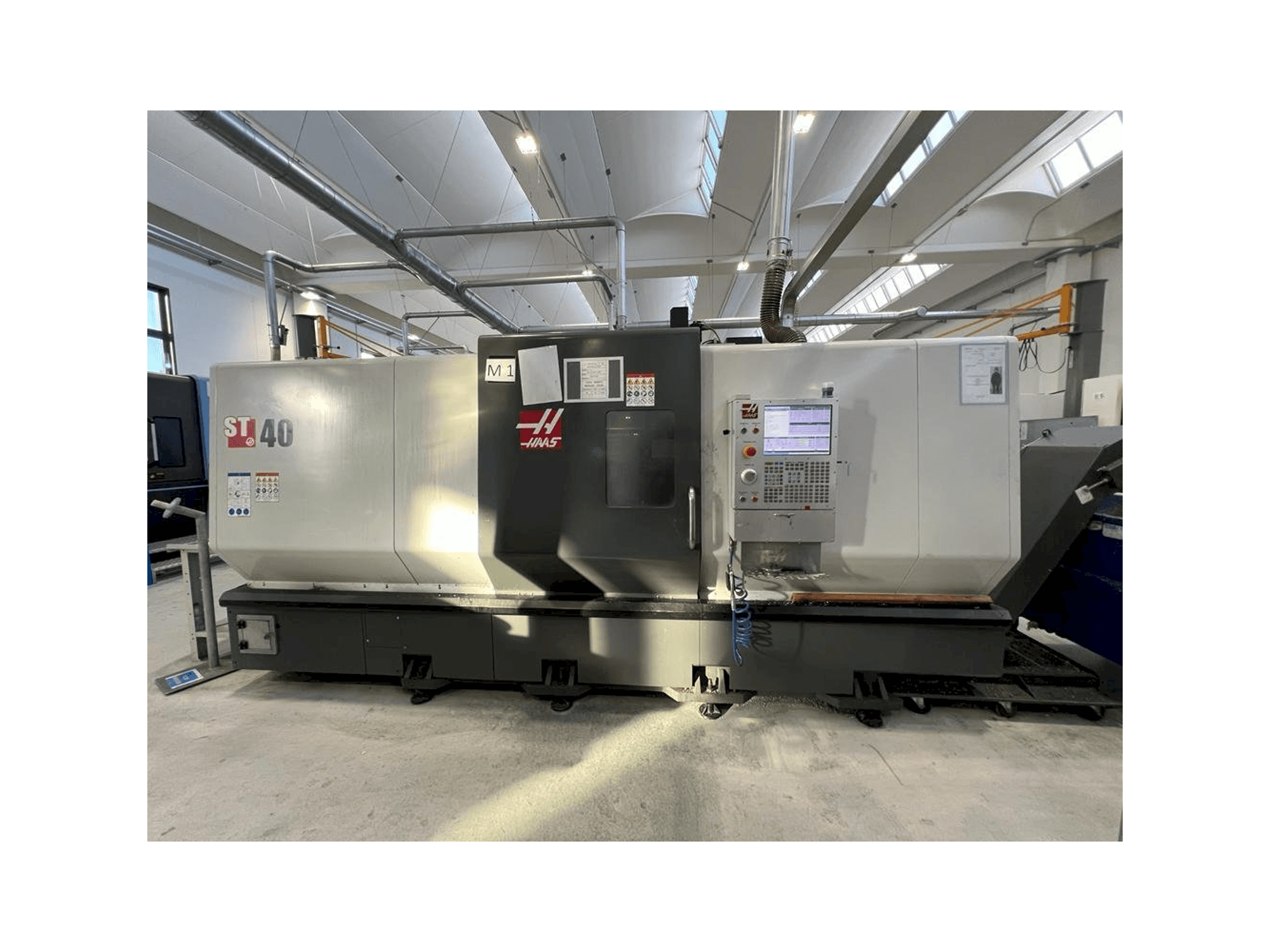

Front view of HAAS ST-40  machine

HAAS ST-40

HAAS - ST-40

2019

Rs. 7,097,150

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

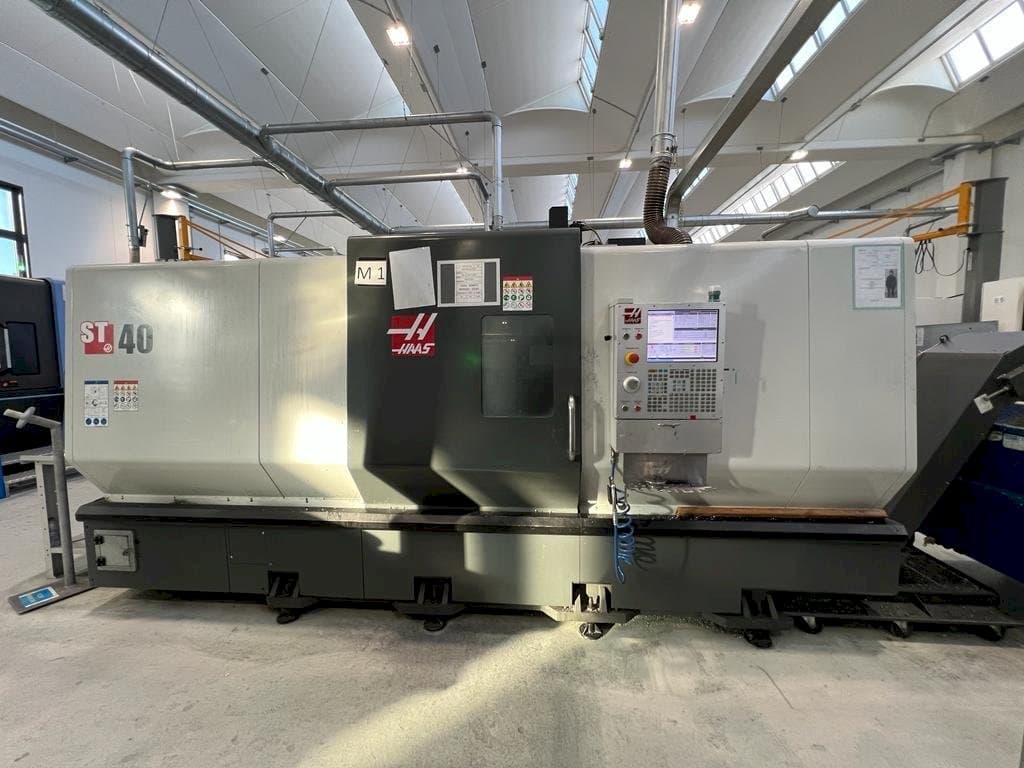

This HAAS ST-40 Lathe was manufactured in the year 2019 in the United States. It is equipped with a HAAS control unit. The machine has a spindle speed of 2400 rpm.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: ST-40
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: IMMEDIATELY
  • GINDUMAC ID: IT-TUR-HAA-2019-00003

Technical Information

General Data

  • Machine weight: 11749 kg

Main drive

  • Spindle speed range: 2400 1/MIN
  • Spindle motor power: 29.8 kW
  • Tool taper: A2-8

Movement

  • X-AXIS Movement: 432 mm
  • X-AXIS Rapid traverse: 18.0 m/min
  • Z-AXIS Movement: 1118 mm
  • Z-AXIS Rapid traverse: 18.0 m/min

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 15” cnc monitor
      • - 2-speed range gearbox
      • - Spindle hole 117. 3 mm
      • - Through hole 102 mm
      • - Chuck diameter 381 mm
      • - Vault 876 mm
      • - Diameter to be machined 648 mm
      • - 12-position tool turret
      • - Usb port
      • - Rigid tapping
    • Qualitative Machine Benefits:
      • - Conveyor belt chip conveyor
      • - Automatic presetting
      • - High pressure refrigeration 21 bar
      • - Std. Tool holder kit (2)
      • - Machine maintained perfectly working

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
