➤ Used HAAS ST-25Y For Sale | gindumac.com

Show in original language

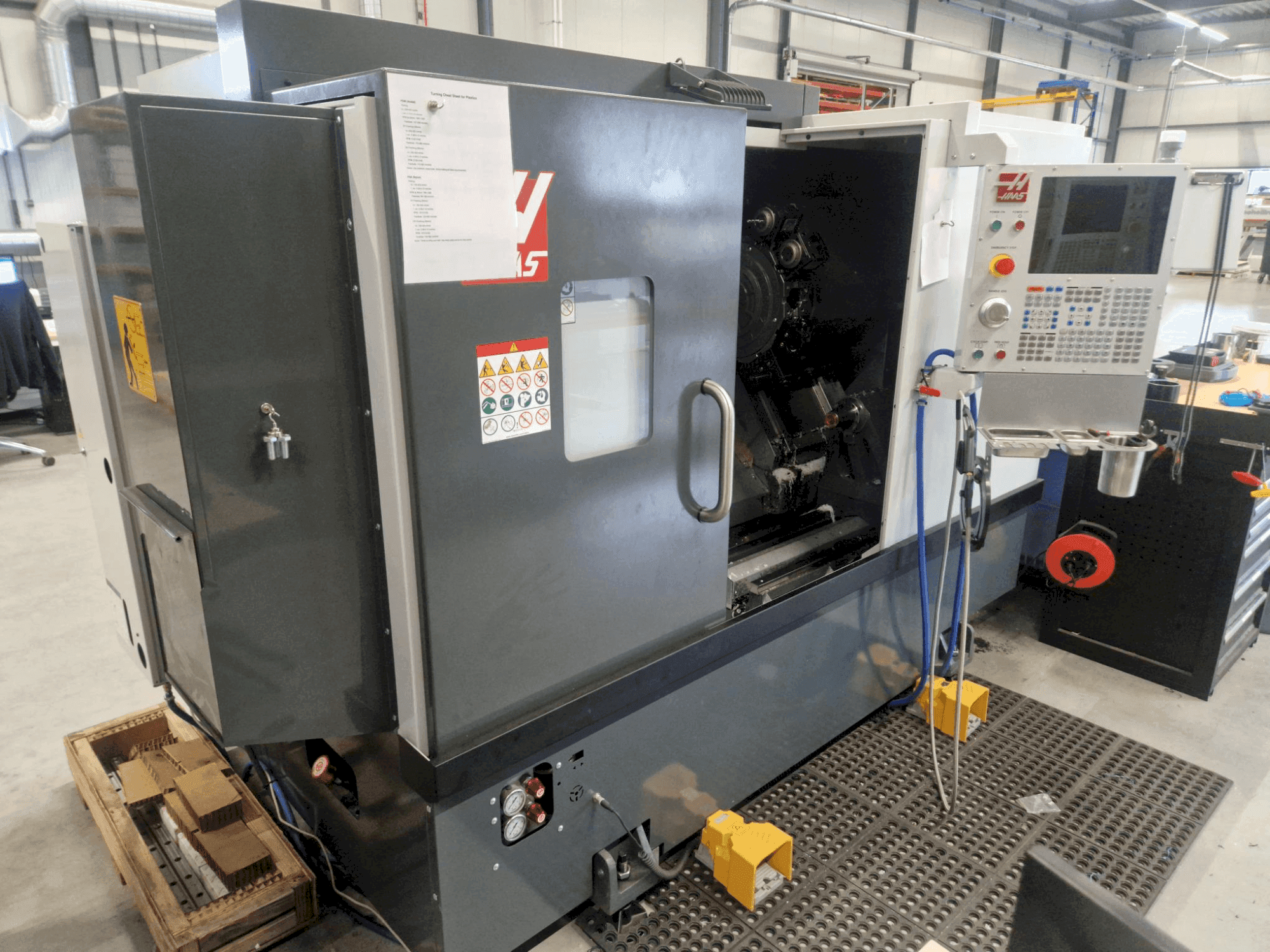

This 3-axis HAAS ST-25Y horizontal turning machine was manufactured in 2024. It features a 254 mm hydraulic chuck, a BMT65 turret with 12 positions, and live tooling capabilities up to 4,000 rpm. The machine includes a 1 GB standard program memory, a coolant tank of 208 liters, and an Ethernet interface. If you are looking to get high-quality turning capabilities, consider the HAAS ST-25Y machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2024
MODEL: ST-25Y
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine

Technical Information - HAAS ST-25Y

Main drive

Spindle speed range: 3400 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 213 mm
Y-AXIS Movement: ±51 mm
Z-AXIS Movement: 572 mm

Additional Information

Spindle orientation

Turret/Tooling:
- BMT65 turret, 12 positions on C-axis
- Live tooling up to 4,000 rpm
- BMT65 metric standard toolholder
- BMT65 driven toolholder kit
Workholding:
- 254 mm hydraulic chuck, A2-6
Coolant:
- Coolant tank: 208 liters
- Variable-speed coolant pump
- High-efficiency coolant filter
Control/Software:
- Visual Programming System for workpieces
- Standard program memory: 1 GB
- User-definable macros
- Synchronized tapping
- Spindle orientation
- Overload protection
- M-code for media display: M130
- Early Power-Failure Detection Module
- Touchscreen control
- Metric measurement units
Connectivity:
- Ethernet interface
- WIFI connection for Haas control
- HaasConnect: Remote monitoring
- HaasDrop

Additional equipment

ATP: Automatic Tool Presetter
CONVEYOR: Chip conveyor for the lathe
PTS: Programmable Tailstock (hydraulic)
EWS BMT ER3 driven toolholders (used):
- 2× Axial drill/milling holders with BMT65 ER, internal coolant
- 2× Radial drill/milling holders with BMT65 ER, external coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
