HAAS ST-20Y

Photo Gallery

HAAS - ST-20YPL-TUR-HAA-2022-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS ST-20Y For Sale | gindumac.com

Show in original language

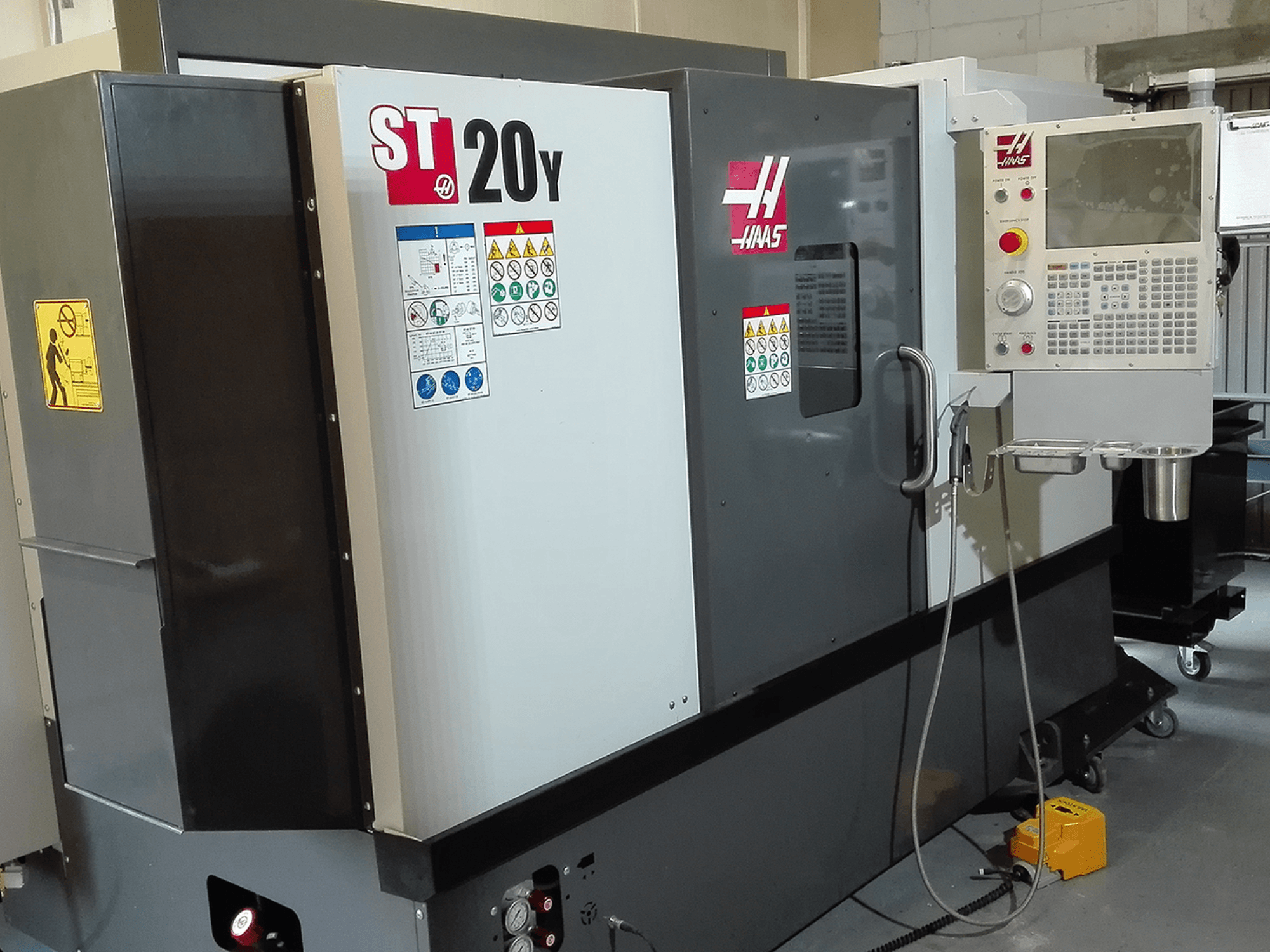

This 3-axis HAAS ST-20Y was manufactured in 2022, featuring X-axis travel of 213 mm, Y-axis travel of ±50 mm, and Z-axis travel of 571 mm. It includes a spindle bore of 64 mm and a three-jaw chuck diameter of 210 mm. The machine offers a maximum spindle speed of 4000 rpm and comes equipped with a chip conveyor, tool measuring probe, and a hydraulic tailstock. Consider the opportunity to buy this HAAS ST-20Y horizontal turning machine. Contact us for more information.

Overview

brand: HAAS
year: 2022
MODEL: ST-20Y
production hours: 119
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-20Y

Control Unit

Control Brand: HAAS
Control Model: NGC

Movement

Number of Axes: 3
X-axis Travel: 213 mm
Y-axis Travel: 50 mm
Z-axis Travel: 571 mm

Technical Specification

Driven Tools: Yes
Spindle Power: 14.9 kW
Spindle Speed: 4000 RPM

Additional Information

Spindle bore: 64 mm
Three-jaw chuck diameter: 210 mm
Spindle clearance above tailstock bed: 533 mm
Maximum turning diameter for BMT65 turret: 298 mm
Spindle nose: A2-6
Maximum speed of driven tools: 4000 rpm
Rapid feed (X/Y): 12 m/min
Rapid feed (Z): 24 m/min
Number of turret tool positions: 12
Positioning accuracy: ±0.005 mm
Repeatability: ±0.003 mm
Coolant tank capacity: 208 l
Compressed air consumption: 113 l/min
Hydraulic tailstock (programmable)

Additional equipment

Chip conveyor
Tool measuring probe (with macro programming capability)
Fixed BMT65 turret holders for drills and boring bars – 3 pcs
Fixed BMT65 turret holders for external turning tools – 3 pcs
Straight driven tool holder – 1 pc
Angle driven tool holder – 1 pc

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
