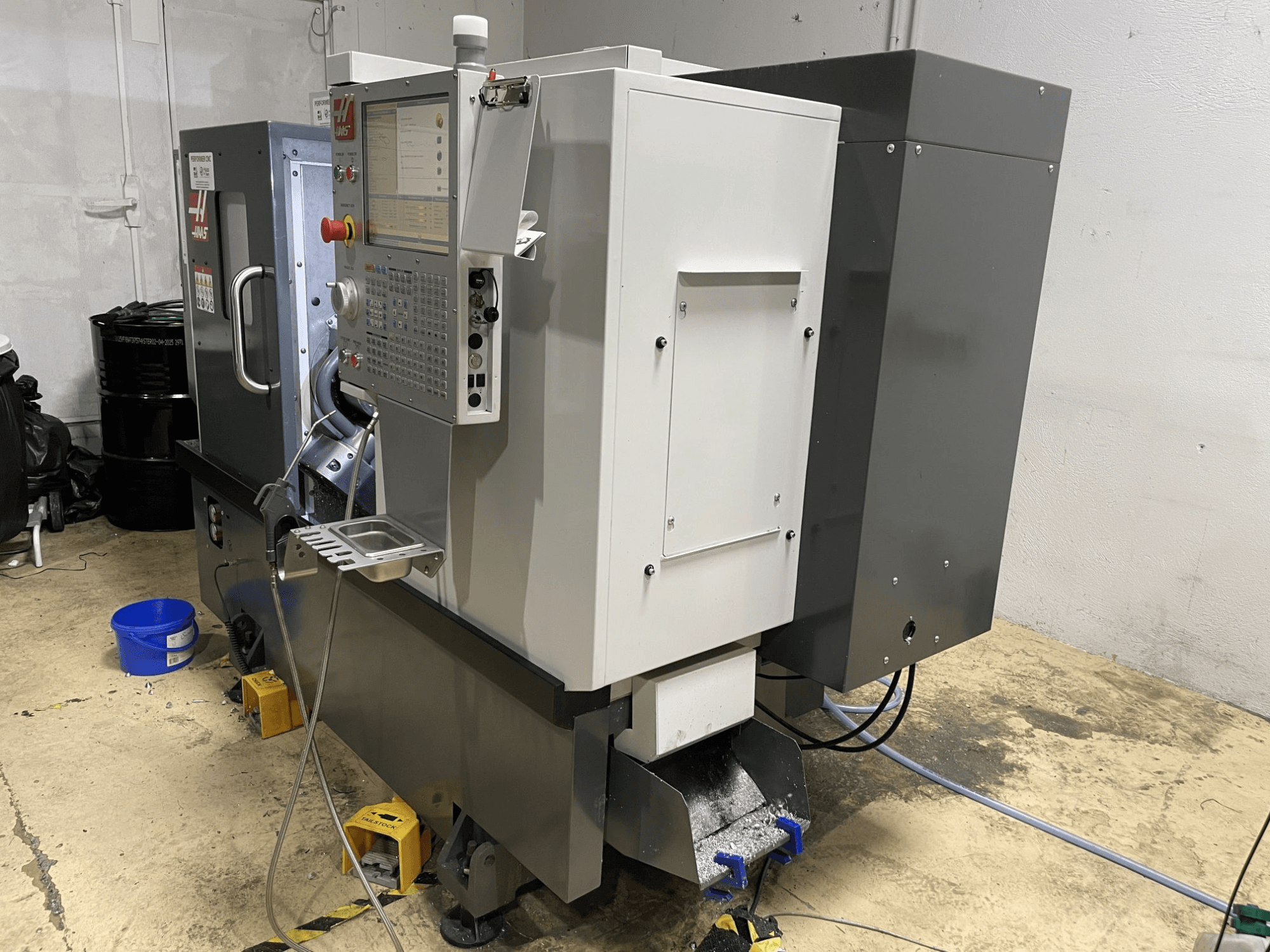

HAAS - ST-15Y FR-TUR-HAA-2020-00001

Capacities

• Chuck size: 210 mm

• Max part swing: 419 mm

• Max cutting diameter (BOT or VDI turret): 305 mm

• Max cutting length: 406 mm

• Bar capacity: 64 mm

Feedrates (rapid)

• X-axis: 12.0 m/min

• Y-axis: 12.0 m/min

• Z-axis: 30.5 m/min

Axis motors (max thrust)

• X-axis: 10,676 N

• Y-axis: 10,231 N

• Z-axis: 16,458 N

Spindle

• Spindle nose: A2-6

• Spindle bore: 88.9 mm

• Max spindle torque: 203 Nm at 500 rpm

Main spindle C-axis

• C-axis power: 3.7 kW

• Max speed: 60 rpm

• Positioning accuracy: ±0.02°

• Brake clamp force: 4448 N

• Brake diameter: 366 mm

• Brake holding torque: 190 Nm

• Control: Interpolated motion and positioning

Turret and tooling

• Number of turrets: 1

• Number of tool slots: 12

• Tool taper: VDI40

• Rotating tools: Yes

• Live tooling speed: 4000 rpm

• Turret configuration: 12-position VDI turret

Tailstock

• Type: Hydraulic tailstock

• Quill travel: 95 mm

• Manual body positioning: 508 mm

• Thrust range: 623–5027 N

Coolant and air

• Coolant capacity: 114 L

• Air required: 113 L/min at 6.9 bar

Electrical

• Input AC voltage (3-phase high): 440 VAC

• Full load amps (3-phase high): 20 A

• Full load amps (3-phase low): 40 A

Configuration notes

• C-axis: Yes

• Y-axis: Yes

• Driven tools: Yes

• Counter spindle: No

Power-on hours: 4,500 h
