➤ Used HAAS DS-30Y For Sale | gindumac.com

Show in original language

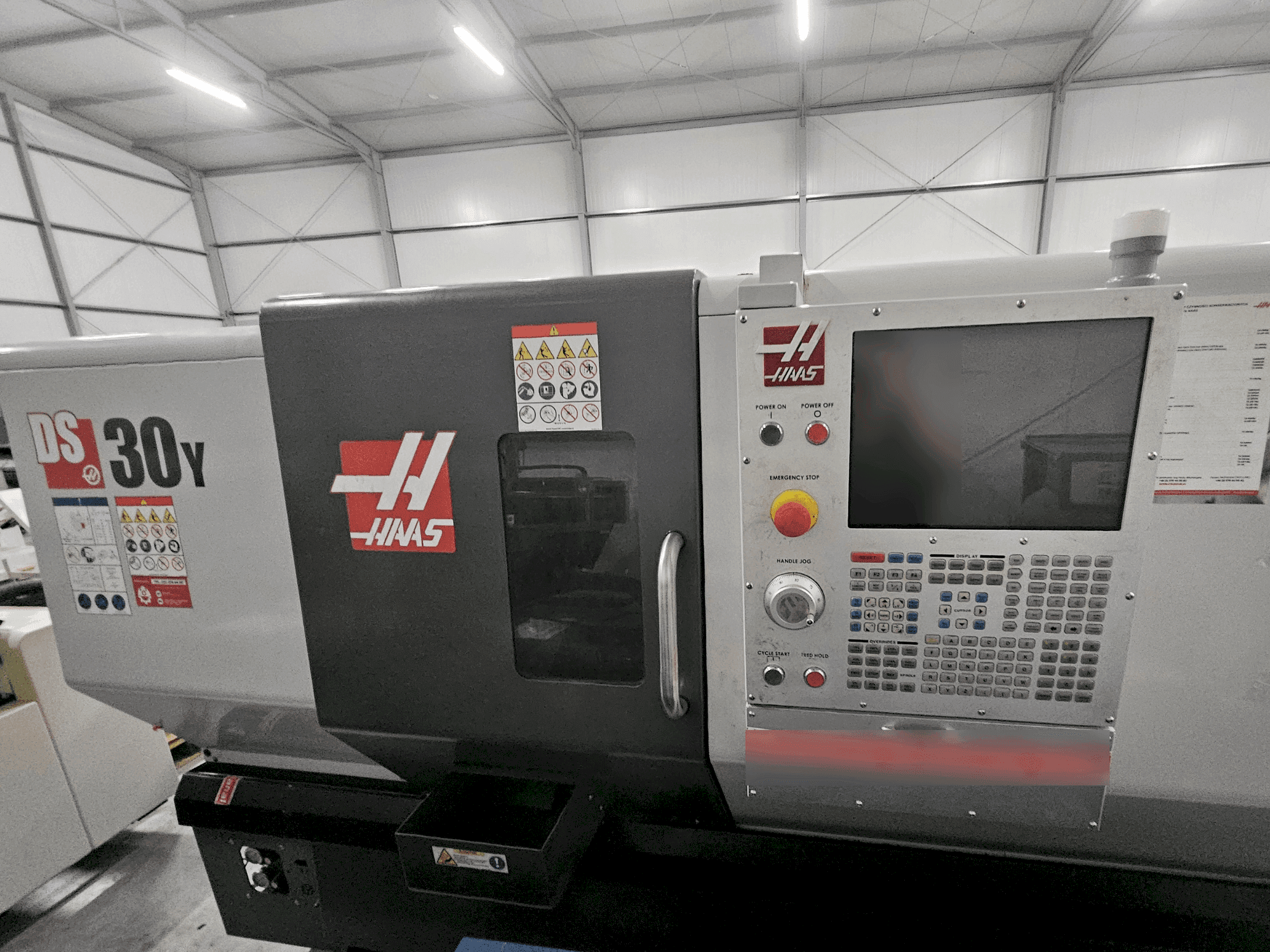

This 4-axis HAAS DS-30Y horizontal turning machine was manufactured in 2023. It features a spindle speed of up to 4500 RPM, a main motor power of 22.4 kW, and a bar feeder for efficient material handling. The machine includes a high-pressure cooling system and a belt chip conveyor for enhanced performance. Ideal for precision machining with its robust 5540 kg frame and comprehensive tooling options. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: HAAS
year: 2023
MODEL: DS-30Y
production hours: 2347
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS DS-30Y

General Data

Measurements width: 2290 mm
Measurements depth: 4340 mm
Measurements height: 2490 mm
Machine weight: 5540 kg

Control Unit

Brand: HAAS
Model: NGC

Main drive

Number of spindles: 1
Spindle speed range: 4500 RPM 1/MIN
Spindle motor power: 22.4 kW
Spindle bore: 51 mm
Number of axis: 4

Movement

X-AXIS Movement: 239 mm
Y-AXIS Movement: 51 mm
Z-AXIS Movement: 826 mm

Media

Chip conveyor: Yes

Additional equipment

- ACF: Additional 25 µm filtration system
- ATP: Automatic tool probe (includes MACRO and VPS)
- CONVEYOR: Belt chip conveyor
- HPC: High-pressure cooling system up to 21 bar (ACF included)
- JET: M-code activated air blast system for the chuck
- PCAT: Programmable, pneumatically operated finished part collection system, maximum part dimensions: 108 mm x 54 mm, weight: 2.27 kg
- HAAS BARFEEDER V2-A: Bar feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter: 349 mm
- - Turning length: 584 mm
- - Tool magazine: yes
- - Number of tool positions in the magazine: 12
- - Number of tool positions (driven): 6
- - High-pressure cooling system, automatic tool probe, driven tools
Qualitative Machine Benefits:
- - Disconnected and disassembled by haas factory service, additional inspection may be required for reconnection, check if some parts would be recommended to be replaced. Extra information:

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
