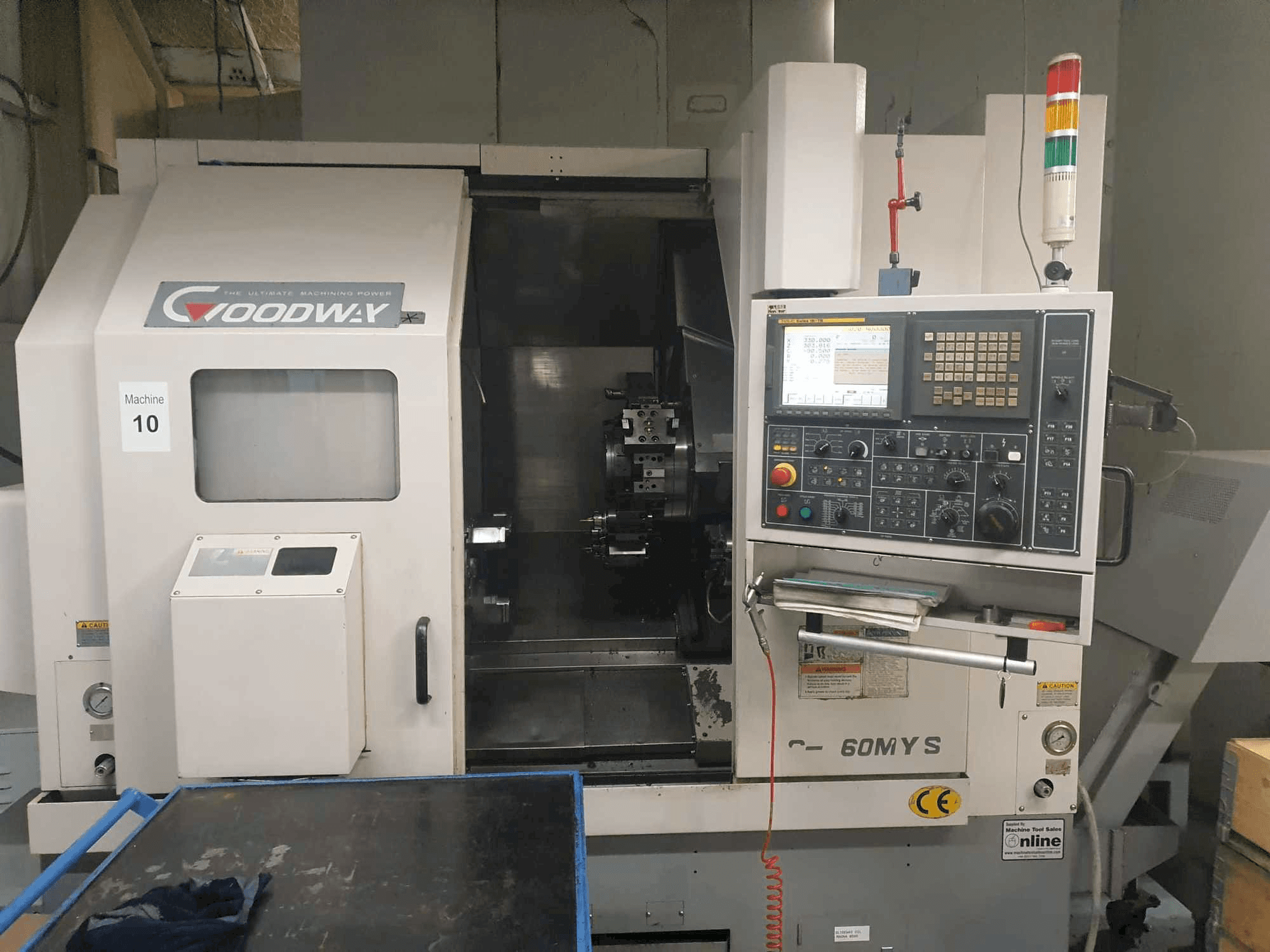

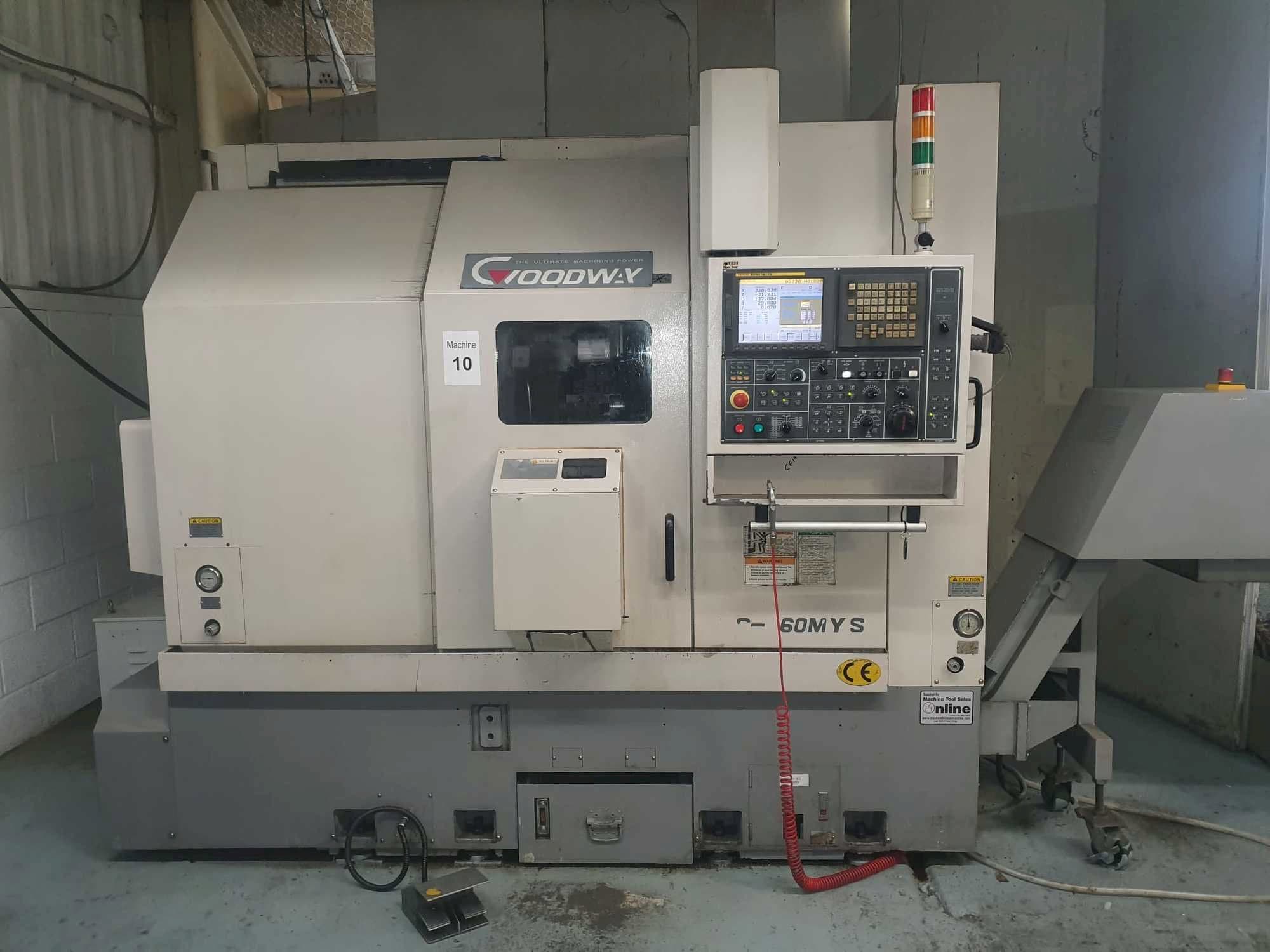

Goodway GS-260MYS Lathe

Show in original language

This Goodway GS-260MYS Lathe was manufactured in 2006 in Taiwan. It has a production record of only 5480 hours. It is operated through a FANUC Series 18i-TB control unit. This machine can work with a spindle speed up to 4000 rpm. It includes a Kitagawa B210 chuck, and an Auto Sirona N206 Chuck as additional equipment. It presents low hours.

Overview

brand: Goodway
year: 2006
MODEL: GS-260MYS
production hours: 5480
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Goodway GS-260MYS

General Data

Measurements width: 2670 mm
Measurements depth: 1920 mm
Measurements height: 2260 mm
Machine weight: 5800 kg

Control Unit

Brand: FANUC
Model: Series 18i-TB
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 2
Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 200 mm
Y-AXIS Movement: 110 mm
Z-AXIS Movement: 570 mm
C-AXIS Movement: 360 Deg MM

Workpiece

Workpiece drm: 420 mm
Workpiece weight: 230 kg

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: ER32

Media

Main electronic connection: 400 V
Power consumption: 38 kva

Additional Information

Machine history

Material type: Mild steel
End product: Sub contract machined parts

Machine Benefits

Technical Machine Benefits:
- - Machine with sub spindle
- - Machine with driven tool turret
- - Machine with y axis
Qualitative Machine Benefits:
- - Low machining hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
