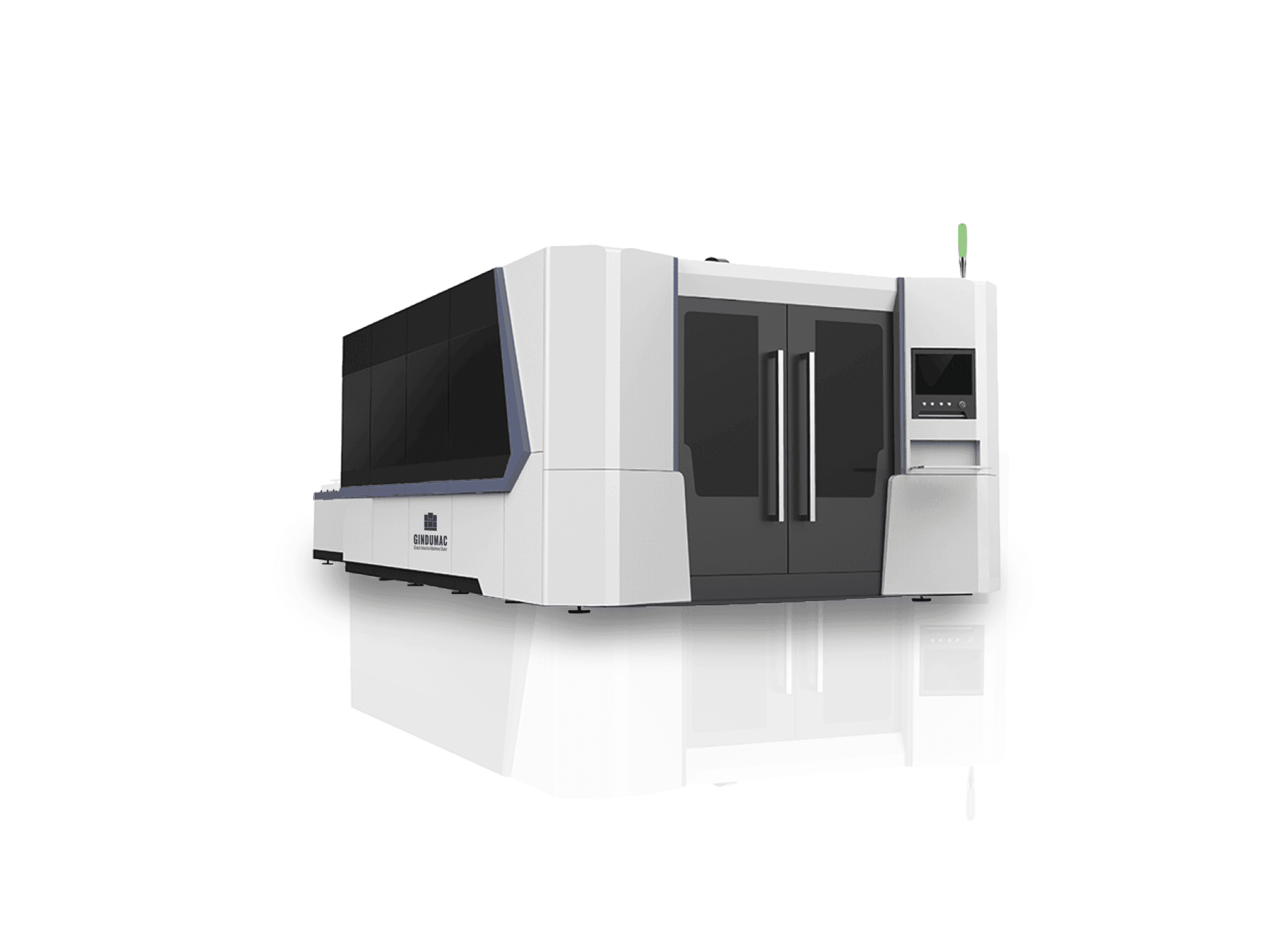

Left view of GINDUMAC ULTRA 3015-4000SF Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

GINDUMAC ULTRA 3015-4000SF

Photo Gallery

GINDUMAC - ULTRA 3015-4000SFIN-LAS-GIN-2018-00016

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
GINDUMAC ULTRA 3015-4000SF Fiber Laser Cutting Machine

Show in original language

Under the GINDUMAC brand, GINDUMAC offers new high-efficient Fiber Laser Cutting Machines in three different product lines - TREND, EDGE and ULTRA - fitting your demands and needs. The GINDUMAC ULTRA models are our ultimate range machines with up to 4kW of laser power, allowing precise and easy industrial machining of heavy sheets with up to 24 mm material thickness. A closed cutting area ensures high security during operation. All ULTRA models feature a dual line proportional valve to control nitrogen pressure and can be equipped with an automatic pallet changer system to achieve higher productivity and meet your individual targets.

Overview

brand: GINDUMAC
year: 2018
MODEL: ULTRA 3015-4000SF
production hours: 0
application type: Cutting
Location: India
machine type: Fiber Laser Cutting Machine
availability: Sold

Technical Information - GINDUMAC ULTRA 3015-4000SF

General Data

Measurements width: 8400 mm
Measurements depth: 3000 mm
Measurements height: 2000 mm
Machine weight: 7300 kg

Main drive

Laserpower: 4.0 kW
Laser type: Fiber
Laser brand: IPG YLS

Movement

X-AXIS Movement: 3000 mm
X-AXIS Rapid traverse: 120 m/min
X-AXIS Accuracy: ± 0.03 mm
Y-AXIS Movement: 1500 mm
Y-AXIS Rapid traverse: 120 m/min
Y-AXIS Accuracy: ± 0.03 mm
Z-AXIS Movement: 120 mm

Workpiece

Workpiece weight: 800 kg

Table

Outer length: 3000 mm
Outer width: 1500 mm

Max Material thickness

Steel: 24 mm
Stainless steel: 12 mm

Machine specific data

Laser Cutting Head: Raytools BM114

Media

Main electronic connection: 380 V
Power consumption: 15 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
