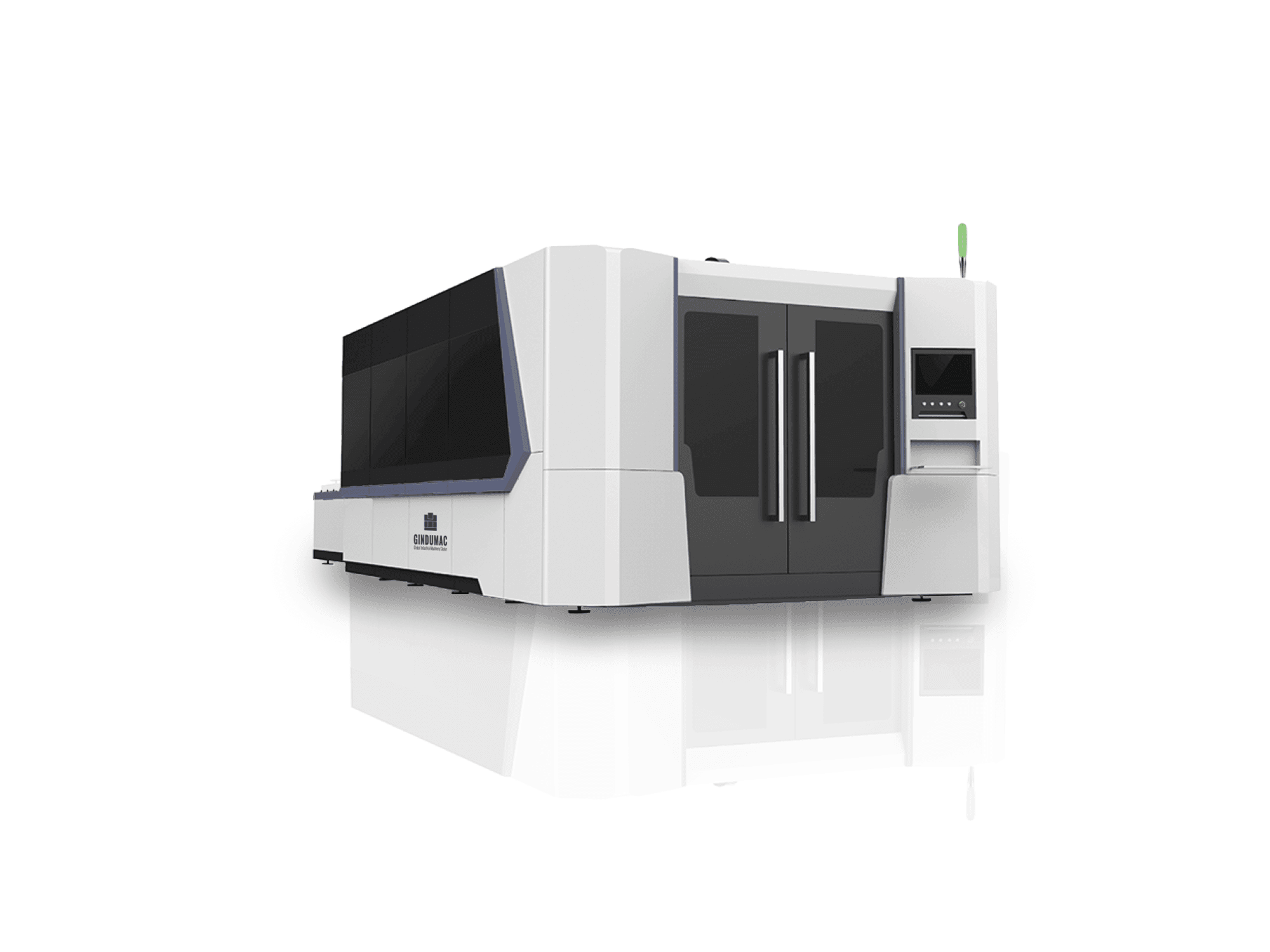

Left view of GINDUMAC ULTRA 3015-3000SF Machine
Left view of GINDUMAC ULTRA 3015-3000SF Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

GINDUMAC - ULTRA 3015-3000SFIN-LAS-GIN-2018-00015

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Under the GINDUMAC brand, GINDUMAC offers new high-efficient Fiber Laser Cutting Machines in three different product lines - TREND, EDGE and ULTRA - fitting your demands and needs. The GINDUMAC ULTRA models are our ultimate range machines with up to 4kW of laser power, allowing precise and easy industrial machining of heavy sheets with up to 24 mm material thickness. A closed cutting area ensures high security during operation. All ULTRA models feature a dual line proportional valve to control nitrogen pressure and can be equipped with an automatic pallet changer system to achieve higher productivity and meet your individual targets.

Overview

  • brand: GINDUMAC
  • year: 2018
  • MODEL: ULTRA 3015-3000SF
  • production hours: 0
  • application type: Cutting
  • Location: India
  • machine type: Fiber Laser Cutting Machine

Technical Information - GINDUMAC ULTRA 3015-3000SF

General Data

  • Measurements width: 8400 mm
  • Measurements depth: 3000 mm
  • Measurements height: 2000 mm
  • Machine weight: 7300 kg

Main drive

  • Laserpower: 3.0 kW
  • Laser type: Fiber
  • Laser brand: IPG YLS

Movement

  • X-AXIS Movement: 3000 mm
  • X-AXIS Rapid traverse: 120 m/min
  • X-AXIS Accuracy: ± 0.03 mm
  • Y-AXIS Movement: 15000 mm
  • Y-AXIS Rapid traverse: 120 m/min
  • Y-AXIS Accuracy: ± 0.03 mm
  • Z-AXIS Movement: 120 mm

Workpiece

  • Workpiece weight: 800 kg

Table

  • Outer length: 3000 mm
  • Outer width: 1500 mm

Max Material thickness

  • Steel: 18 mm
  • Stainless steel: 10 mm

Machine specific data

  • Laser Cutting Head: Raytools BM111

Media

  • Main electronic connection: 380 V
  • Power consumption: 15 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
