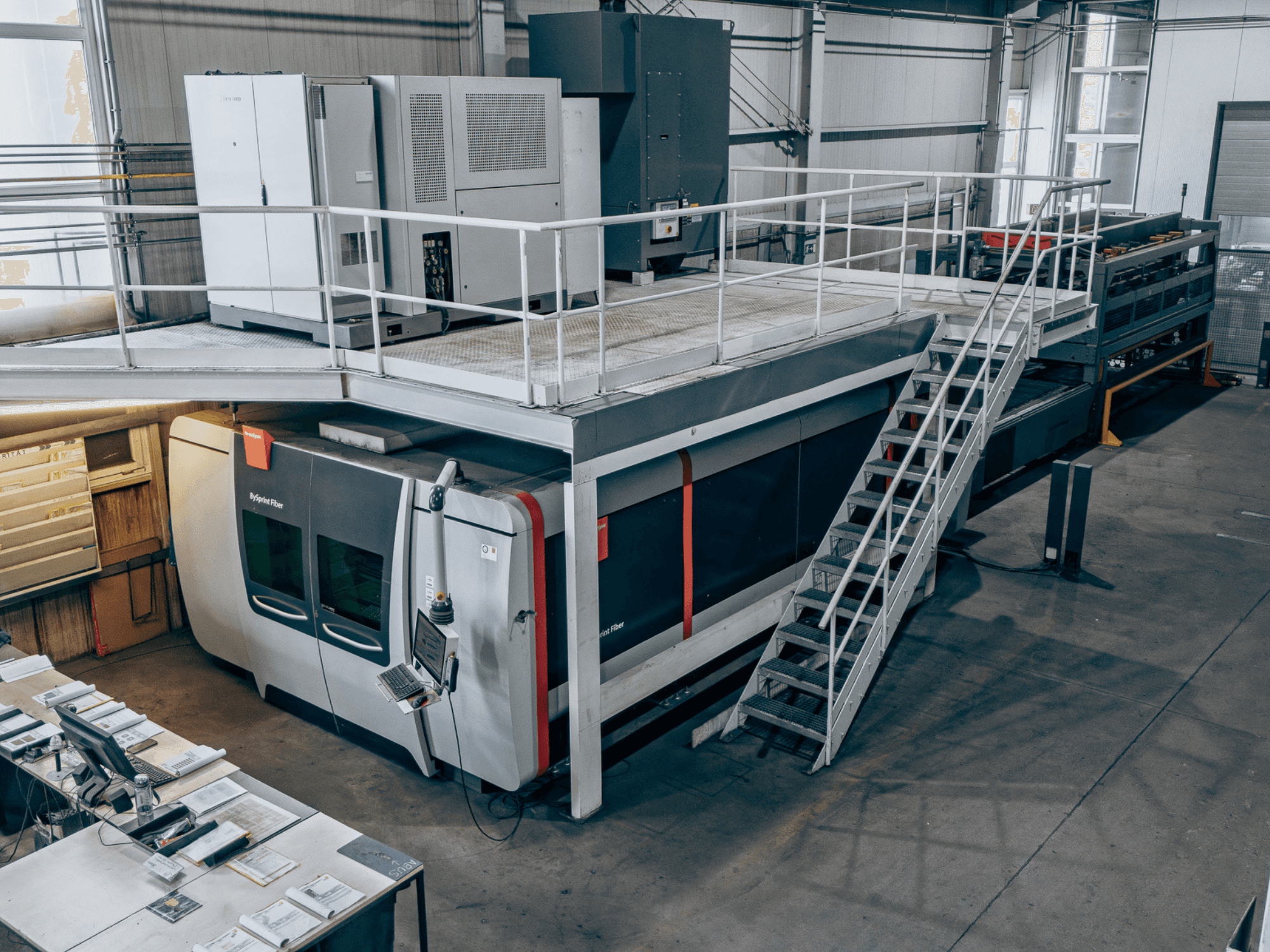

This 3-axis Bystronic BySprint Fiber 4020 + optional ByTrans Extendend 4020 was manufactured in 2018. It features a powerful 6 kW fiber laser with a working area of 4,000 × 2,000 mm. The machine includes an automatic loading and unloading system for enhanced efficiency. If you are looking to get high-quality fiber laser cutting capabilities, consider the Bystronic BySprint Fiber 4020 + optional ByTransExtendend 4020 machine we have for sale. Contact us for further details.
Overview
- brand: Bystronic
- year: 2018
- MODEL: BySprint Fiber 4020
- production hours: 19032
- application type: Cutting
- Location: Austria
- machine type: Fiber Laser Cutting Machine
Technical Information - Bystronic BySprint Fiber 4020
Movement
- Number of Axes: 3
- X-axis Travel: 4000 mm
- Y-axis Travel: 2000 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
BySprint Fiber 4020
Laser Source: Fiber Laser
Laser Power: 6 kW
Maximum Laser Power: 6000 W
Working Area / Table Size: 4,000 × 2,000 mm
Overall Dimensions: Approx. 12 × 3 m (including ByTrans Loading System)
Machine Weight: Approx. 14,250 kg
Laser Wavelength: 1060–1080 nm
Operating Hours: 36,725 h
Cutting Hours: 19,032.02 h
Machine Condition: Used, Fully Functional, Currently in Production
Documentation: Included
Operating Manual: Included
Spare Parts: Small Quantity of Wear Parts Included
Optional – ByTrans Extended 4020
Automation System: ByTrans Extended 4020
Number of Cassettes: 2
Maximum Sheet Size: 4,064 × 2,080 mm
Nominal Sheet Size: 4,000 × 2,000 mm
Sheet Thickness (Loading/Unloading): 0.8–20 mm
Maximum Sheet Weight: 1,300 kg
Maximum Raw Material Stack Weight: 3,000 kg
Maximum Raw Material Stack Height: 240 mm
Maximum Cut Parts Stack Height: 350 mm
Standard Cycle Time: 75 s
Module Weight: 7,200 kg
Maximum Electrical Consumption: 6 kW
Maximum Compressed Air Consumption: 10 m³/h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
