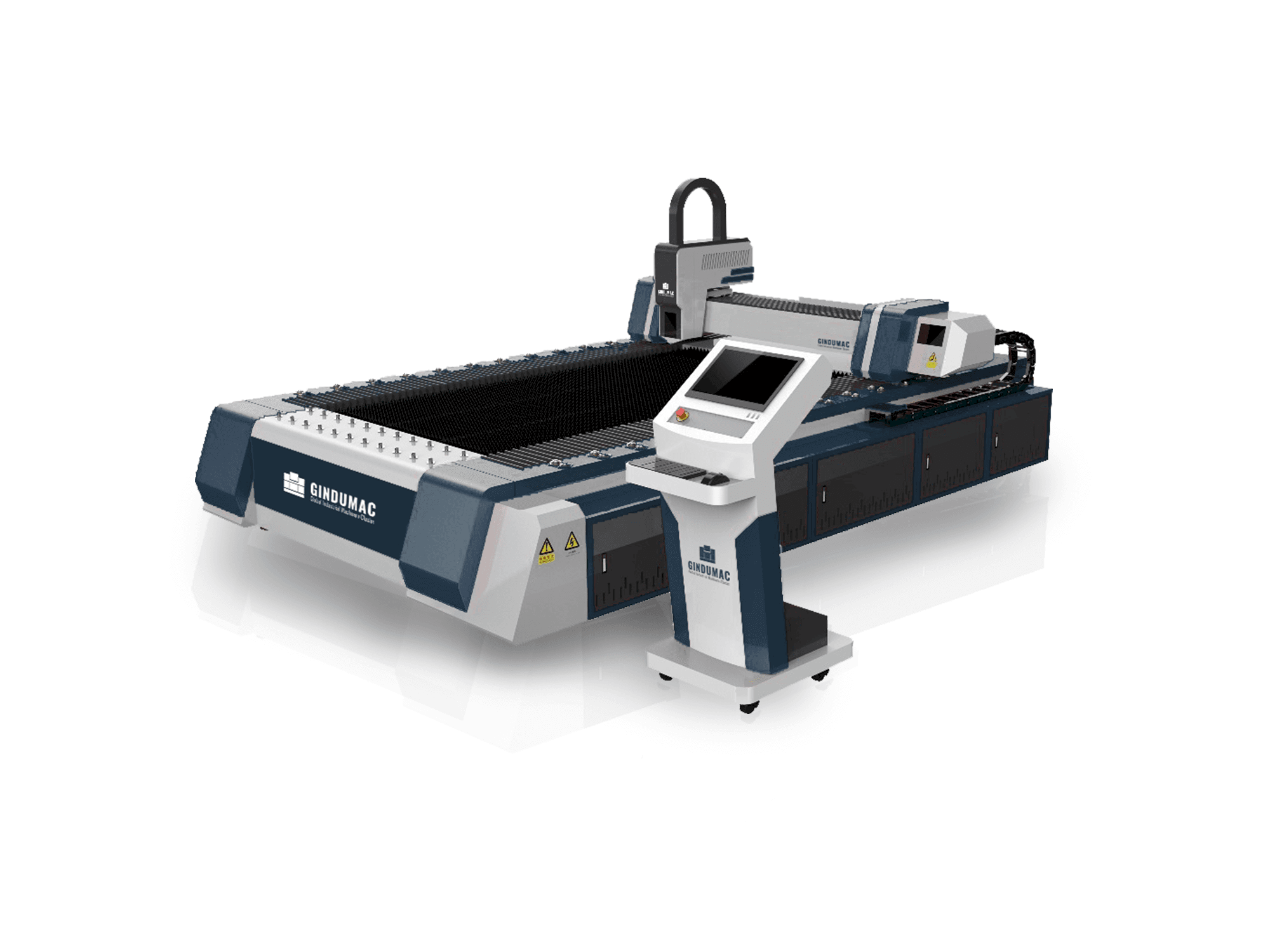

GINDUMAC TREND 3015-1000R
GINDUMAC - TREND 3015-1000R
2018
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- GINDUMAC TREND 3015-1000R Fiber Laser Cutting Machine
Under the GINDUMAC brand, GINDUMAC offers new high-efficient Fiber Laser Cutting Machines in three different product lines - TREND, EDGE and ULTRA - fitting your demands and needs. The GINDUMAC TREND models are our affordable entry level machines combining high speed and reliability for lower sheet thicknesses. The TREND models are great machines for inhouse fabrication, OEM-product manufacturers and entry-level subcontractors. With their small ecological foot print, easy installation and operation, the TREND models are a realistic alternative to turret punching machines.
Overview
- brand: GINDUMAC
- year: 2018
- MODEL: TREND 3015-1000R
- production hours: 0
- application type: Laser Cutting
- Location: India
- machine type: Fiber laser cutting machines
- availability: Sold
- GINDUMAC ID: IN-LAS-GIN-2018-00007
Technical Information
General Data
- Measurements width: 4650 mm
- Measurements depth: 3600 mm
- Measurements height: 2000 mm
- Machine weight: 4700 kg
Main drive
- Laserpower: 1.0 kW
- Laser type: Fiber
- Laser brand: IPG YLR
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Rapid traverse: 120 m/min
- X-AXIS Accuracy: ± 0.03 mm
- Y-AXIS Movement: 1500 mm
- Y-AXIS Rapid traverse: 120 m/min
- Y-AXIS Accuracy: ± 0.03 mm
- Z-AXIS Movement: 120 mm
Workpiece
- Workpiece weight: 600 kg
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Max Material thickness
- Steel: 10 mm
- Stainless steel: 5 mm
Machine specific data
- Laser Cutting Head: Raytools BT240
Media
- Main electronic connection: 380V
- Power consumption: 15 kW
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
