Gildemeister - NEF520DE-TUR-GIL-2005-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Gildemeister NEF520 For Sale | gindumac.com

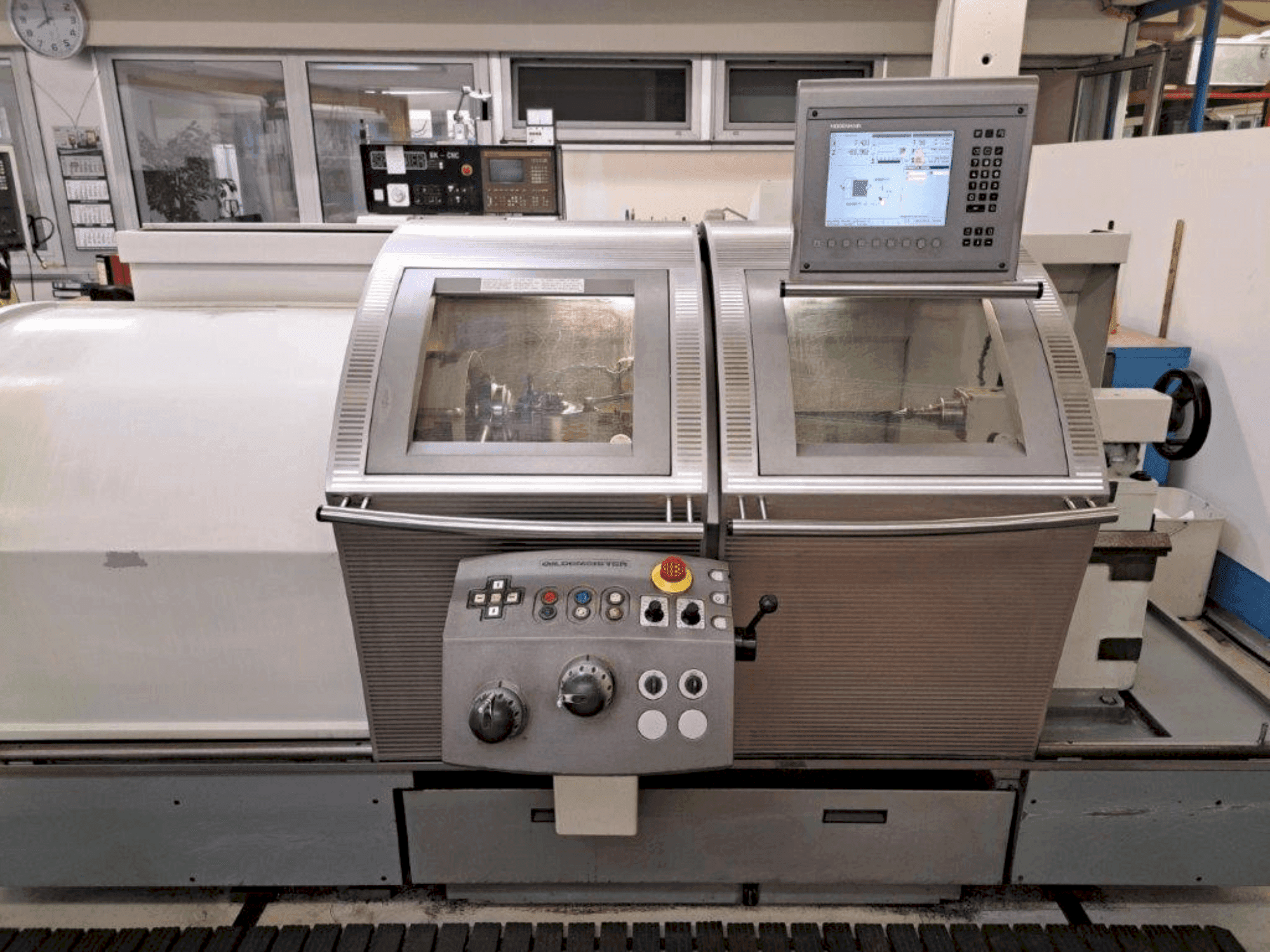

This Gildemeister NEF520 was manufactured in 2005. A reliable horizontal turning machine, it offers robust performance for various machining tasks. Ideal for those looking to enhance their turning capabilities. Contact us for more information.
Overview
- brand: Gildemeister
- year: 2005
- MODEL: NEF520
- production hours: 34661
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: HEIDENHAIN
Technical Information - Gildemeister NEF520
Control Unit
- Control Brand: HEIDENHAIN
Additional Information
Additional equipment
- A traveling steady rest.
- A ROTA-S plus 250-71 wedge bar chuck from Schunk.
- Approximately 30 sets of clamping jaws, hard and soft.
- Ten "Multifix" size C tool holders.
Machine Benefits
Technical Machine Benefits
- Max chuck: 315 mm
- Max torque: 900 nm
- Center height: 250 mm
- Center width: 1000/1500 mm
- Max circulation bed: 500 mm
- Max rotation of cross slide: 290 mm
- Longitudinal stroke: 850/1350 mm
- Facing stroke: 260 mm
Extra Information
Workpiece Support: Multifix-C tool system Number of Bed Slides: 1 MK5 Quill Taper Main Drive Main Drive: Siemens 57 Nm 23 A 1500 1/min Feed Flat: Siemens 3.2 Nm 2.4 A 3000 1/min Feed Longitudinal: Siemens 6 Nm 3.1 A 3000 1/min Lubrication: Beka 0.1 Kw 0.25 A 2700 1/min Coolant: EMP 155 W 0.74 A Tools Feed Speed (Longitudinal Slide): 5000 mm/min Feed Speed (Cross Slide): 5000 mm/min Rapid Traverse: 8 m/min Feed Force: 6000 N Spindle Speeds: I 4-1000 1/min stepless, II 4-4000 1/min stepless
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
