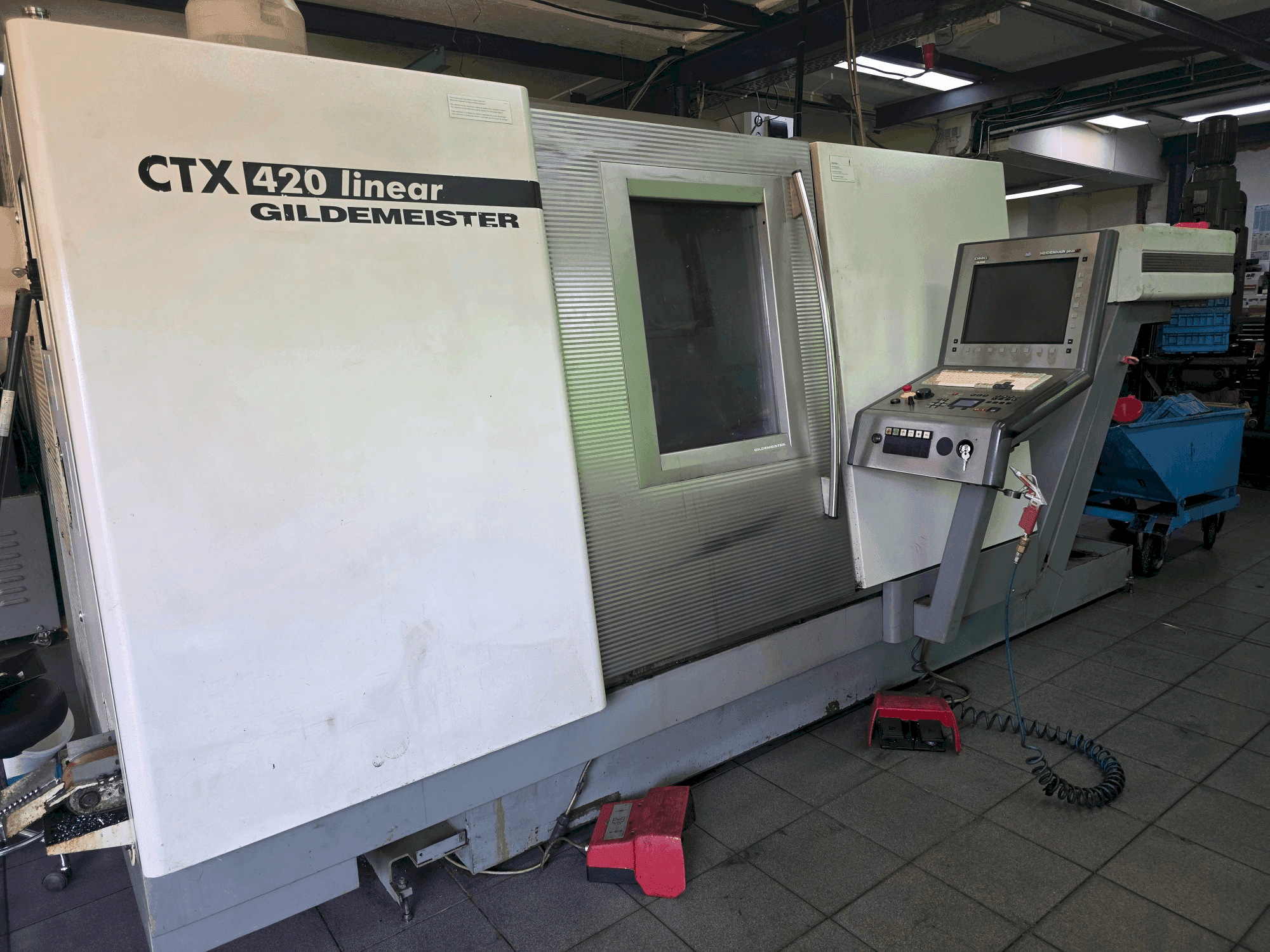

Gildemeister - CTX 420 linearDE-TUR-GIL-2008-00003

• C-axis

• Y-axis

• Partially hollow clamping device

• Differential pressure clamping for the main spindle

• Workpiece collection facility, pneumatically operated, with conveyor belt, for parts d 65 mm x 200 mm long

• Tool turret completely overhauled

• Tail stock included

• Tool measuring device in the work area, automatically swivels in (limitations: clamping jaws of clamping device must not exceed 280 mm

• CNC Control: HEIDENHAIN Plus iT

• Clamping: Partial hollow clamping device

• Support: Tailstock

• Condition: Machine completely ready for turning


Core Add-ons and Features

• Control Extension (B-A0111): TurnPlus control extension for CTX 420/520 Linear 8

• Spindle Clamping (B-B0030): Differential pressure clamping for the main spindle 9

• Tool Measurement (B-H2305): Tool measuring device in the work area, automatically swiveling in 10 Note: The swing circle of the clamping jaws of the clamping device must not exceed 280 mm when using the measuring device11.

• Oil Mist Separator (B-H2310): Oil mist separator via mechanical industrial filter, $1500\ m^{3}/h$ 12

Bar Stock Machining Package (B-E2302)

This package consists of: 13 - Hollow clamping device, Ø 68 mm 14 - Workpiece removal device, pneumatically operated, with conveyor belt 15 For parts up to: $\text{\O 65 mm}\times\text{200 mm}$ long 16 - Connection for bar feeder or bar loading magazine 17 - Signal lamp 4-colored 18

Services and Documentation

• Chucking Device Service (B-Z0010): Assembly/functional test of a (provided) power chuck at the delivery plant, possibly including chuck flange adjustment19. Note: Connecting piece and any necessary chuck flange must also be provided20.

Additional equipment

• Chip conveyor

• Oil mist separator via mechanical industrial filter, 1500 m³/h

• Package bar processing G

• Signal light 4-color

• Hollow clamping device, Ø 68 mm

• Lifting beam included

• 10x AGW axial

• 10x AGW radial

• 39x boring bar holders

• 29x turning bar holders

• 2x rolling tools

• 3x cut-off sword holders

• 1x Berg power chuck type KH 200

• 93x jaw set for 3-jaw chuck

• 1 set of machine documentation
