Gildemeister CTX 400 Twin

Photo Gallery

Gildemeister - CTX 400 TwinIT-TUR-GIL-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

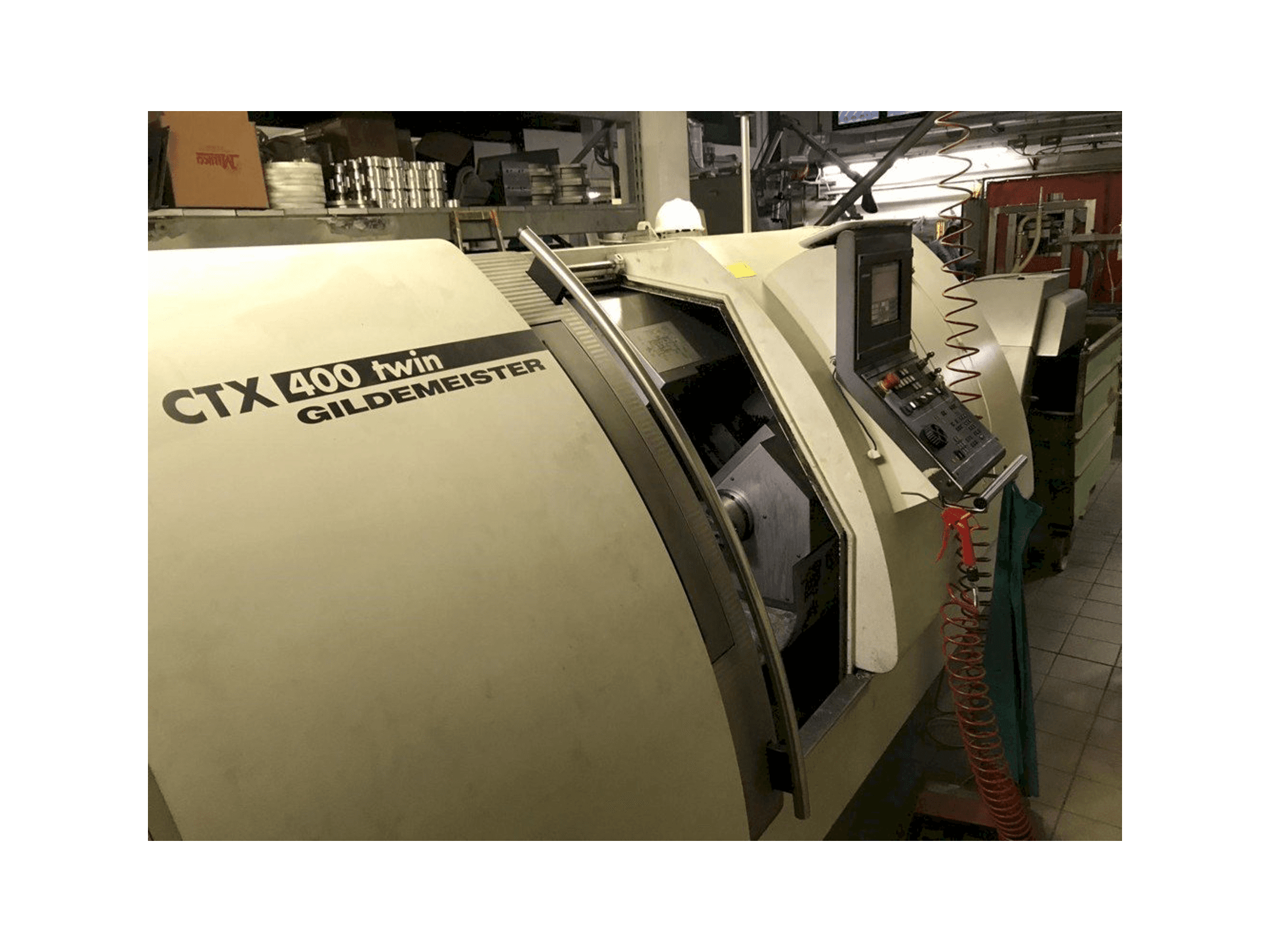

Gildemeister CTX 400 Twin Lathe

Show in original language

This Gildemeister CTX 400 Twin Lathe was made in Germany in 2001 and has been operative for 29940 hours. Equipped with a HEIDENHAIN 4290 Control unit, this machine can operate with a spindle speed up to 5000 rpm.

Overview

brand: Gildemeister
year: 2001
MODEL: CTX 400 Twin
production hours: 29940
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 400 Twin

Control Unit

Control Brand: HEIDENHAIN
Control Model: 4290

Dimensions

Machine Depth: 1750 mm
Machine Height: 3570 mm
Machine Weight: 5700 kg

Movement

X-axis Travel: 220 mm
Y-axis Travel: 80 mm
Z-axis Travel: 635 mm

Technical Specification

Spindle Power: 21 kW
Spindle Speed: 25.5 RPM

Additional Information

Additional equipment

chip conveyor

Machine Benefits

Qualitative Machine Benefits

Machine comes with driven tools
Sub-spindle
Recent maintenance by dmg technicians

Technical Machine Benefits

Motorized turret: 12 positions
-axis fast forward speed: 20 mt
Z-axis fast forward speed: 24 mt
Asa 1st spindle taper: 6
Asa 2nd spindle taper: 5
Turning bar diameter 65 mm
6 motorized tool holders: 2 vertical and 2 horizontal + 2 double (1 v - 1 h)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
