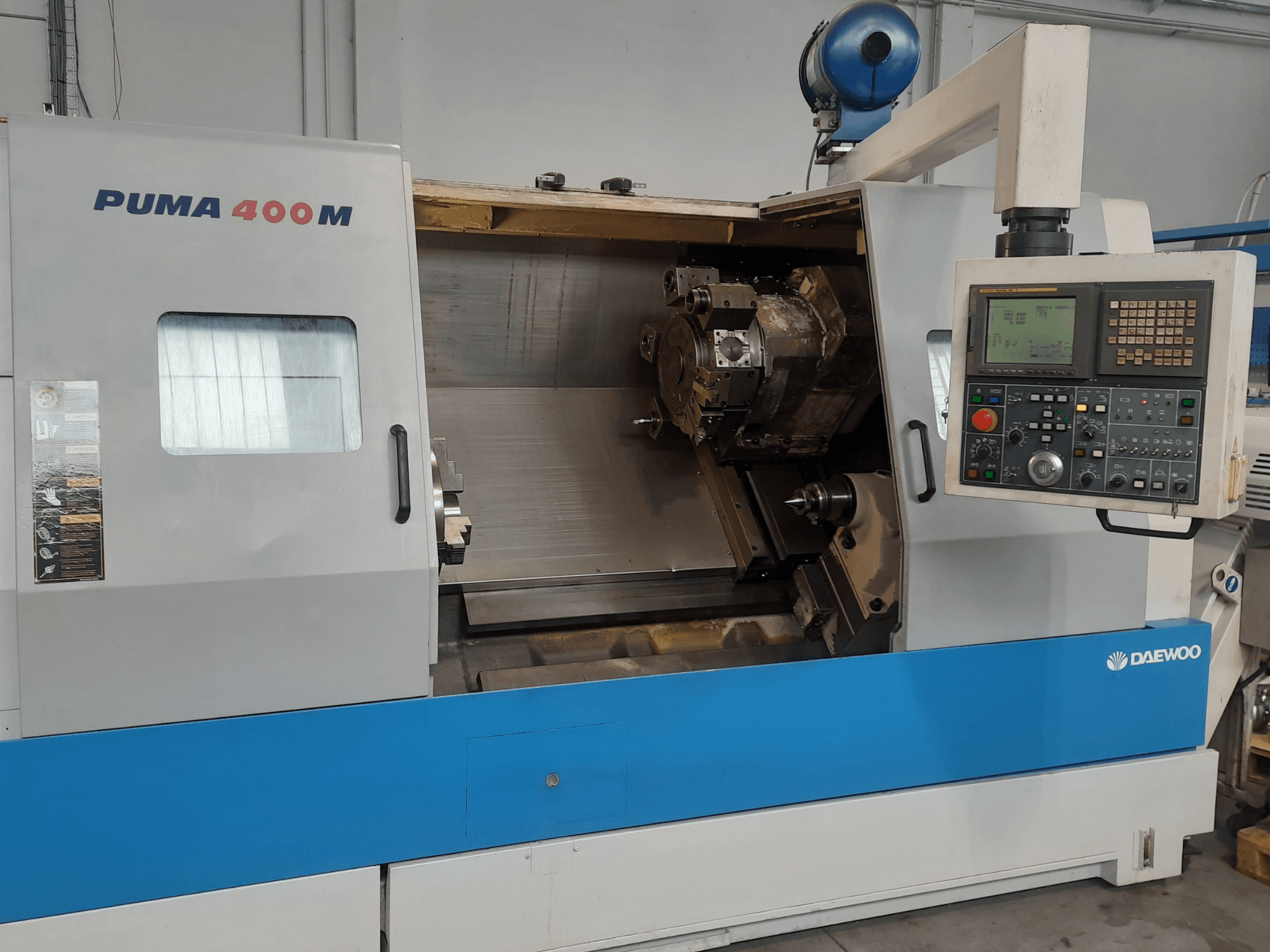

This 3-axis DAEWOO PUMA 400MB was manufactured in 2002. It features a maximum machining diameter of 460 mm and a maximum machining length of 1,050 mm. The machine is equipped with a spindle speed range of 30–3,000 rpm and a tool turret with 12 stations. If you are looking to get high-quality CNC turning and milling capabilities, consider the DAEWOO PUMA 400MB machine we have for sale. Contact us for further details.
Overview
- brand: DAEWOO
- year: 2002
- MODEL: PUMA 400MB
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DAEWOO PUMA 400MB
Control Unit
- Control Brand: FANUC
- Control Model: Series 18T-C / 16T-C
Dimensions
- Machine Height: 2240 mm
- Machine Weight: 9000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 362 mm
- Z-axis Travel: 1105 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 30 kW
- Spindle Speed: 3000 RPM
- Tool Stations: 12
Additional Information
Working capacity:
Swing over bed: 700 mm
Swing over saddle: 480 mm
Recommended machining diameter: 315 mm
Maximum machining diameter: 460 mm
Maximum machining length: 1,050 mm
Draw tube diameter: 91 mm
Axis travel:
C: 360° (indexing increment 0.001°)
Main spindle:
Chuck diameter: 304 mm
Spindle nose: ASA A2-8
Spindle bore: 102 mm
Front spindle bearing diameter: 160 mm
Spindle motor power: 22/30 kW
Tool turret:
Tool holder type: VDI 50
External tool height: 25 mm
Maximum boring bar diameter: 50 mm
Turret indexing time: 0.25 s
Driven tools:
Speed range: 30–3,000 rpm
Motor power: 3.7/5.5 kW
Maximum collet capacity: 25 mm
Maximum tapping capacity: M20
Feed rates:
X-axis rapid traverse: 16,000 mm/min
Z-axis rapid traverse: 20,000 mm/min
X-axis feed motor power: 3.8 kW
Z-axis feed motor power: 5.0 kW
Tailstock:
Quill diameter: 120 mm
Quill taper: MT6
Quill travel: 120 mm
Electrical data:
Power requirement: 50 kVA
Coolant pump power: 0.24 kW
Floor space: 3,890 × 2,390 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
