GILDEMEISTER CTX 400 Serie 2 Lathe

Show in original language

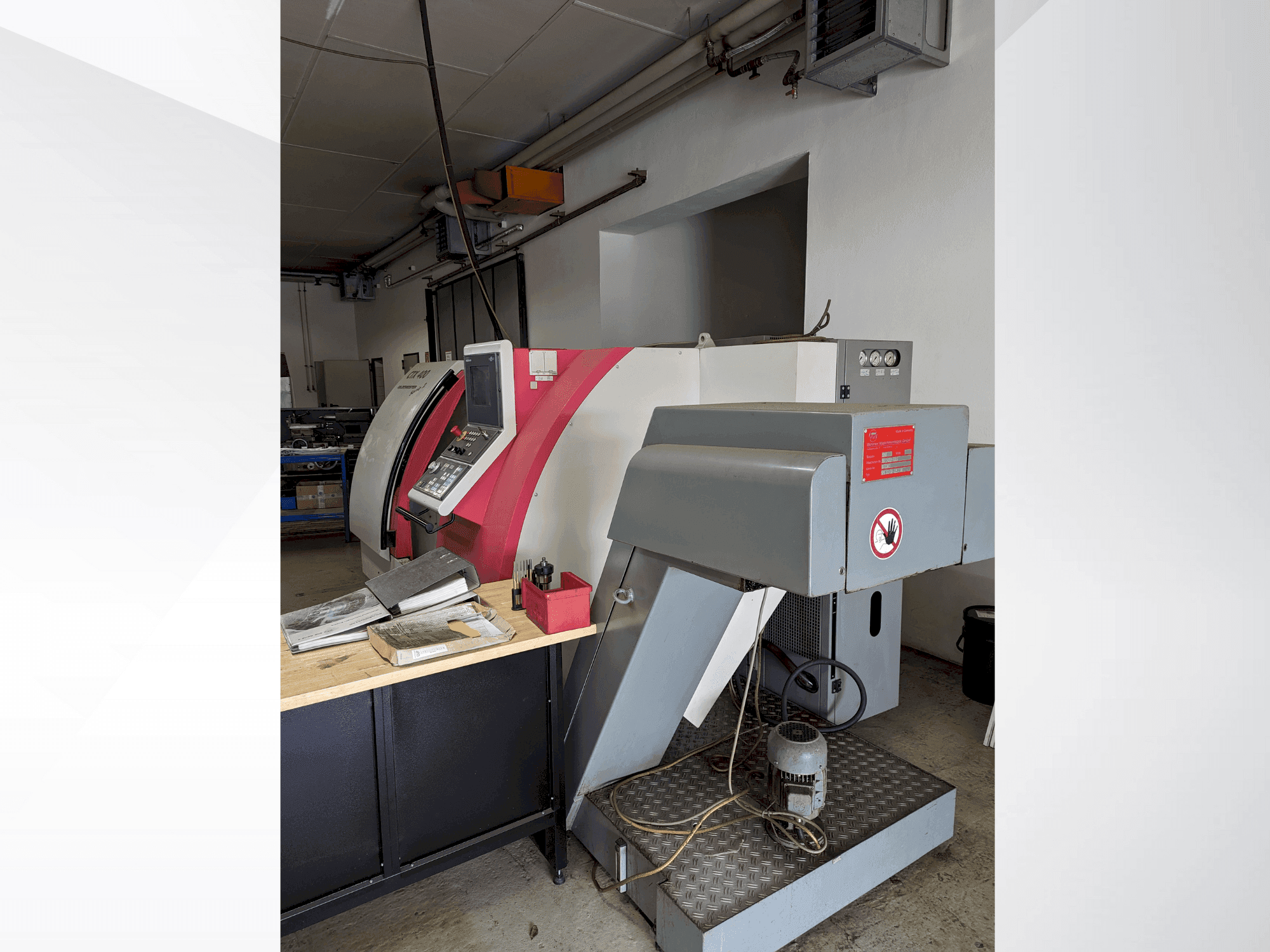

This GILDEMEISTER CTX 400 Serie 2 Lathe was manufactured in the year 1998. It is equipped with a DIN Plus Turn Plus control. It disposes of a turret with 12 tool positions and a tailstock.

Overview

brand: Gildemeister
year: 1998
MODEL: CTX 400 Serie 2
application type: Turning
Location: Germany
machine type: Lathe
availability: Sold
control unit brand: DIN

Technical Information - Gildemeister CTX 400 Serie 2

General Data

Machine weight: 5500 kg

Control Unit

Brand: DIN
Model: Plus Turn Plus

Main drive

Number of spindles: 1
Spindle speed range: 25-5000 1/MIN
Spindle motor power: 21 kW
Spindle bore: 79mm
Number of axis: 2

Movement

X-AXIS Movement: 220 mm
Z-AXIS Movement: 635 mm

Turret

Number of turrets: 1
Number of tool slots: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter: max. 400mm, turning length: max. 600mm, standard turning diameter: 200mm
- - Main spindle: max. Torque 240 nm, usable bar diameter 68mm, chuck diameter 200mm
- - Spindle head 170h5
- - Tool holder vdi 30 / (vdi 40)
- - Shank diameter 20x20mm
- - Tailstock displacement 550mm
- - Tailstock holder mk 4
- - Tailstock max. Suction pressure 4000n
- - Total power requirement: 44 kw
- - Space requirement approx. 6. 0 x 2. 8 x 2. 3 m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
