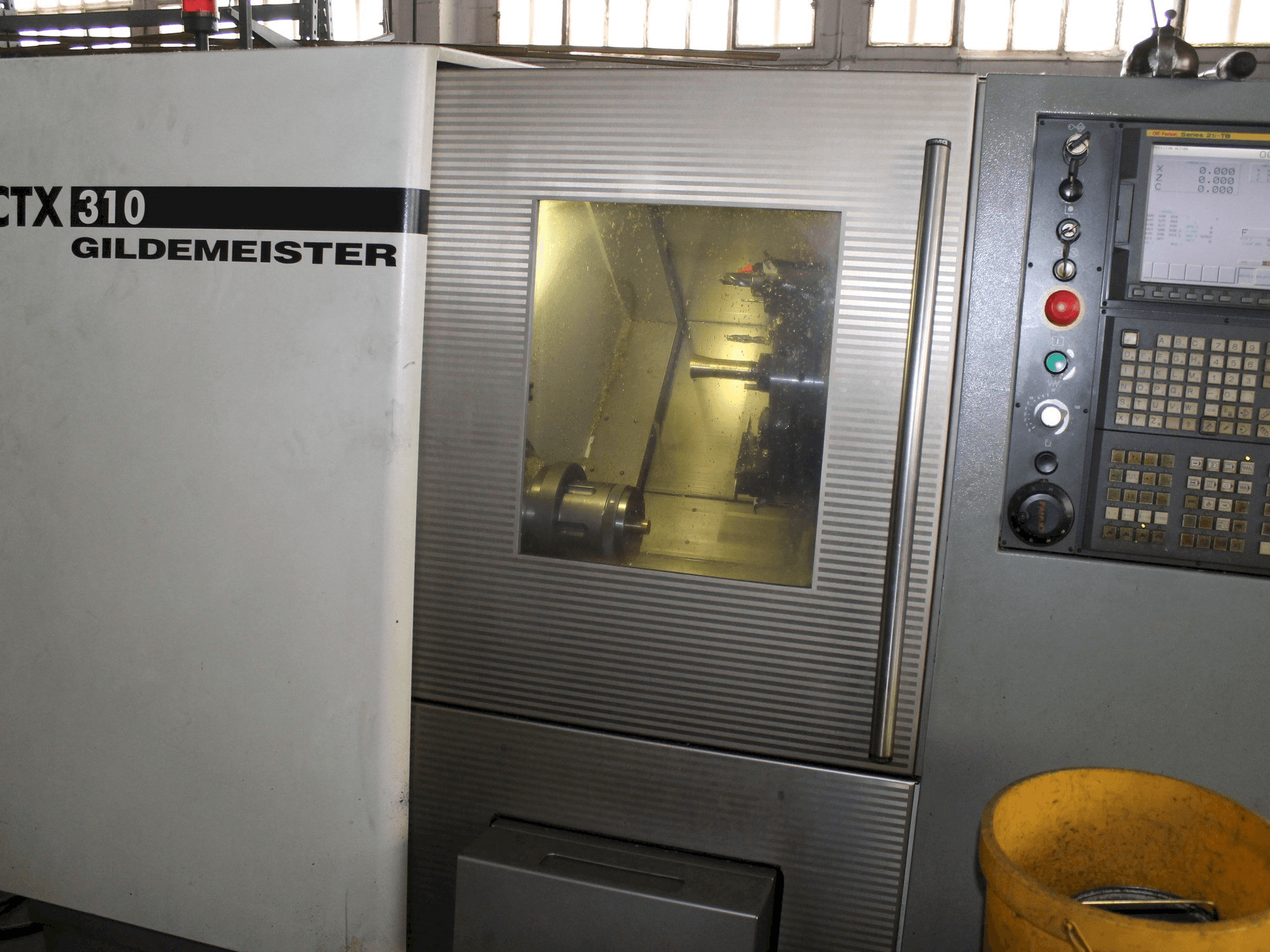

Front view of Gildemeister CTX - 310 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX - 310

Photo Gallery

Gildemeister - CTX - 310ES-TUR-GIL-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister CTX - 310 Lathe

Show in original language

This Gildemeister CTX - 310 Lathe was made in Italy in the year 2003. It has been on for 15015 hours of which 8042 are production hours. It is operated through a Fanuc Series 21i-TB control unit. It has a spindle speed up to 5000 rpm. Included bars charger.

Overview

brand: Gildemeister
year: 2003
MODEL: CTX - 310
production hours: 8042
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Gildemeister CTX - 310

General Data

Measurements width: 3075 mm
Measurements depth: 1594 mm
Measurements height: 1730 mm
Machine weight: 3200 KG

Control Unit

Model: Series 21i-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Spindle bore: 68.5 mm
Number of axis: 2

Movement

X-AXIS Movement: 160 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece x: 160 mm
Workpiece z: 450 mm

Tools

Slots in storage: 12

Media

Main electronic connection: 400V
Power consumption: 21 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

Low production hours

Technical Machine Benefits

Included bars charger
Distance between points: 581 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
