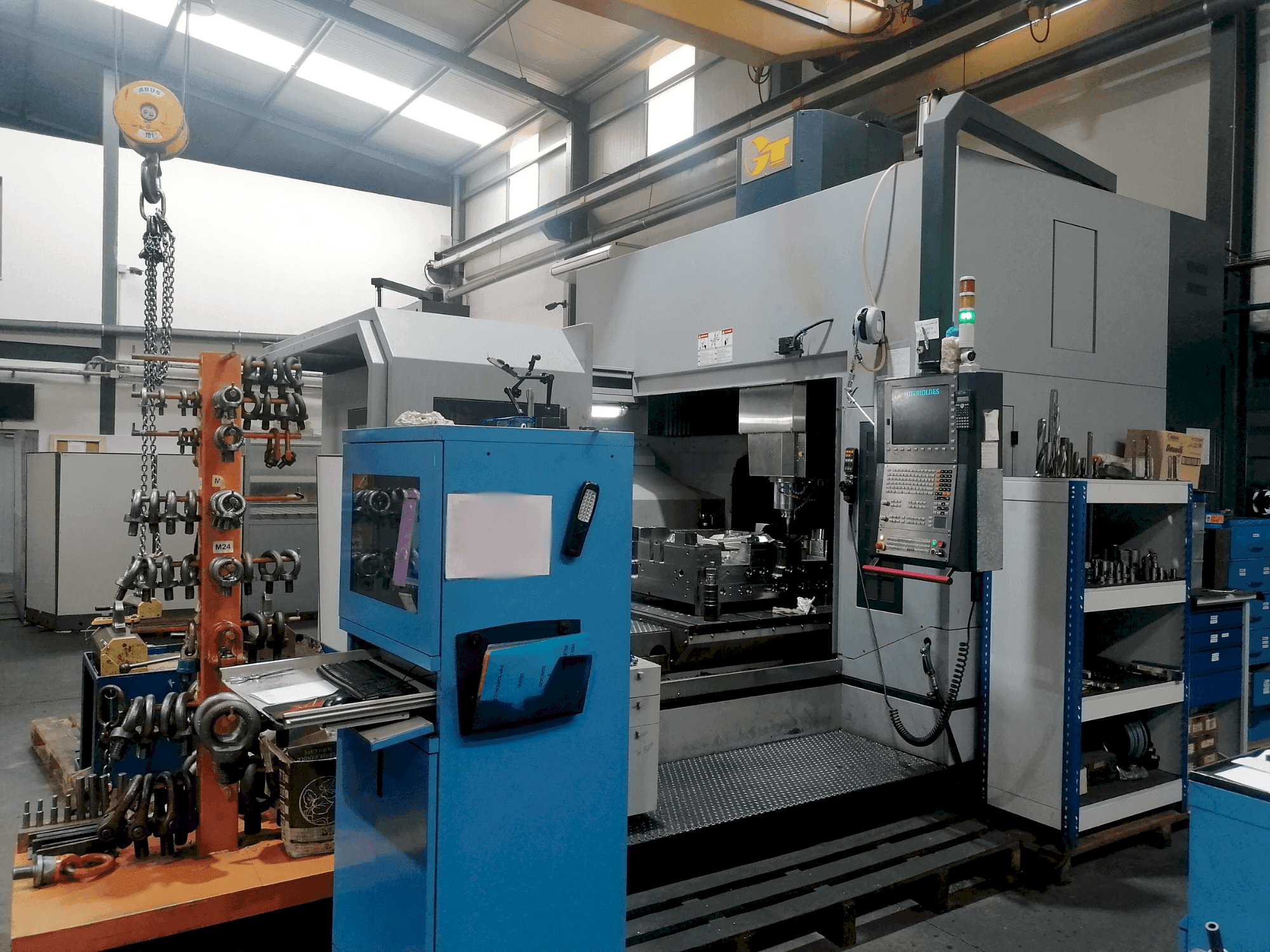

Front view of GENTIGER GT1614V  machine

GENTIGER - GT1614VPT-MIL-GEN-2017-00001

Rs. 12,669,700
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis GENTIGER GT1614V vertical machining centre was manufactured in 2017. It features a robust table area of 1,500 x 1,600 mm, a maximum spindle speed of 10,000 rpm, and a direct drive spindle motor rated at 22 kW. The machine supports a maximum load of 5,000 kg and includes a 20-tool ATC capacity. Ideal for heavy-duty machining, the GENTIGER GT1614V represents a significant asset for any production line. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: GENTIGER
  • year: 2017
  • MODEL: GT1614V
  • application type: Milling
  • Location: Portugal
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: siemens

Technical Information - GENTIGER GT1614V

General Data

  • Measurements width: 4285 MM
  • Measurements depth: 4665 MM
  • Measurements height: 3830 MM
  • Machine weight: 25200 KG

Control Unit

  • Brand: siemens

Main drive

  • Spindle speed range: 10,000 1/MIN
  • Spindle motor power: 22 kw
  • Tool taper: BT / BBT-50

Movement

  • X-AXIS Movement: 1400 mm
  • X-AXIS Working Feed: 20 m/min
  • X-AXIS Rapid traverse: 20 m/min
  • Y-AXIS Movement: 1600 mm
  • Y-AXIS Working Feed: 18 m/min
  • Y-AXIS Rapid traverse: 18 m/min
  • Z-AXIS Movement: 700 mm
  • Z-AXIS Working Feed: 20 m/min
  • Z-AXIS Rapid traverse: 20 m/min

Workpiece

  • Workpiece x: 1600 mm
  • Workpiece y: 1800 mm
  • Workpiece z: 850 mm

Table

  • Outer length: 1500 mm
  • Outer width: 1600 mm
  • TSlots size: 22 x 200 x 8 mm
  • Min distance between vertical spindle and table: 320 mmm
  • Max distance between vertical spindle and table: 1020 mm
  • Table load: 5000 kg

Tools

  • Max weight: 15 kg
  • Max tool diameter: 133 mm
  • Max tool length: 300 mm

    Additional equipment

    • - ATC with 20 tools
    • - Coolant tank capacity: 400 liters

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle bearing ins. Diameter: 90 mm
        • - Total power consumption (max. ): 58 kw
        • - Servo motor for 3 axes: x: 15. 7 kw / y: 7 kw / z: 10 kw
        • - Packing dimension: 5,350 x 4,000 x 3,700 mm
        • - High spindle speed, direct drive motor, rapid feedrates.
      • Qualitative Machine Benefits:
        • - Grease lubrication, oil-cooling system, high table load capacity.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
