➤ Used Geminis GTH 6 G2-1300 x 3000 | Horizontal Lathe

Show in original language

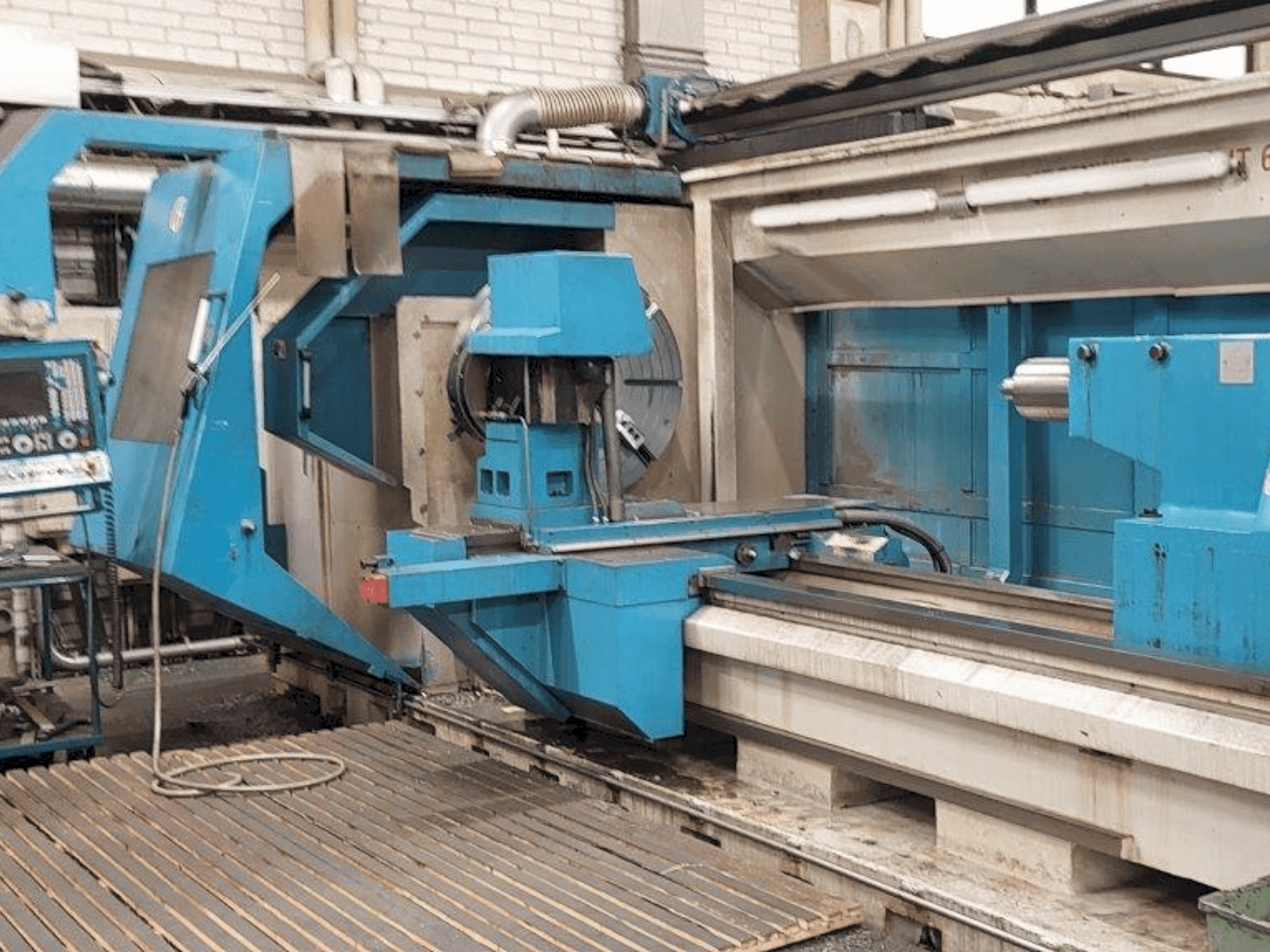

This Geminis GTH 6 G2-1300 x 3000 was manufactured in 2008. A robust horizontal turning machine featuring a FAGOR 8055 TC control system, 37 kW spindle motor, and a maximum turning diameter of 1300 mm. It supports a turning length and center-to-center distance of 3000 mm, with spindle speeds up to 1400 U/min. Includes a chip conveyor. Contact us for more information about this machine.

Overview

brand: Geminis
year: 2008
MODEL: GTH 6 G2-1300 x 3000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - Geminis GTH 6 G2-1300 x 3000

General Data

Measurements width: 3000 mm
Measurements depth: 1200 mm
Measurements height: 2000 mm

Control Unit

Brand: FAGOR

Main drive

Spindle speed range: 1400 1/MIN
Number of axis: 2

Additional Information

Max. turning diameter over bed: 1300 mm
Max. cutting diameter: 1330 mm
Turning length: 3000 mm
Center-to-center distance: 3000 mm
Spindle nose: 11"
Rapid feed (longitudinal/cross/transversal): 10,000 mm/min
C-axis

Additional equipment

Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
