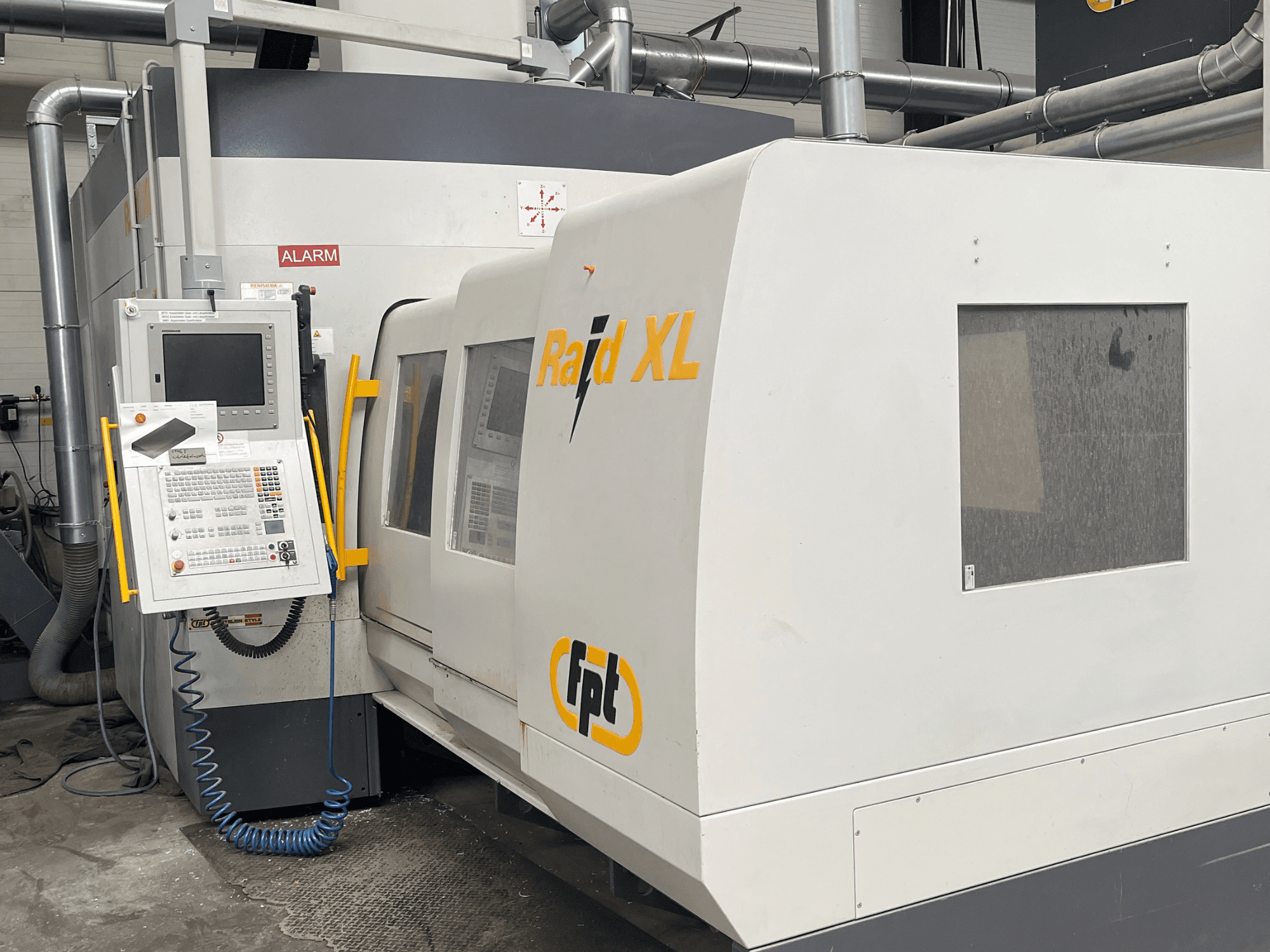

FPT - Raid XLDE-MIL-FPT-2021-00002

- Table Dimensions: 1100 x 2000 mm

- Table Load Capacity: 3300 kg (central and evenly distributed)

- T-Slots: 11 T-slots, 18 mm width (H11), 100 mm pitch

- Spindle Type: Vertical High-Frequency Spindle (TVS18)

- Spindle Speed Range: Up to 18,000 RPM

- Spindle Power (S1/S6): 18 kW / 22 kW

- Spindle Torque (S1/S6): 80 Nm / 100 Nm

- Tool Taper: HSK-A63 DIN 69893

- Tool Changer: Automatic Chain Tool Changer (RVATC30H), 30 positions

- Max. Tool Length: 300 mm

- Max. Tool Diameter: 80 mm

- Max. Tool Weight: 10 kg

- Control Unit: Heidenhain TNC 620 HSCI 15"

- Handheld Control: Portable Electronic Handwheel Heidenhain HR520

- Max. Rapid Feed / Interpolating Speed: 35 m/min

- Installed Power: 54 kVA

- Required Current: 78 A

- Voltage / Frequency: 400V 50Hz

- Operating Air Pressure: 6 bar

- Air Flow Required: 400 Nl/min

- Coolant System: Internal (30 bar high pressure) & External (30 bar low pressure), 500 L tank capacity

- Chip Conveyor: 2 internal bed screws + main conveyor with right-side discharge

- Workpiece Probe: RENISHAW RMP40 Wireless Touch Probe

- Tool Measurement: Laser Probe with software for tool length, radius, and breakage control (Max dia. 180 mm)

- Software Options: DREG (Hi-Performance Adjustable Dynamics), GREEN_FPT (Energy Optimization), MARES 4.0+ CLIENT Package (Industrial IoT platform)
