FELDER - G500DE-EDG-FEL-2008-00001

Machine

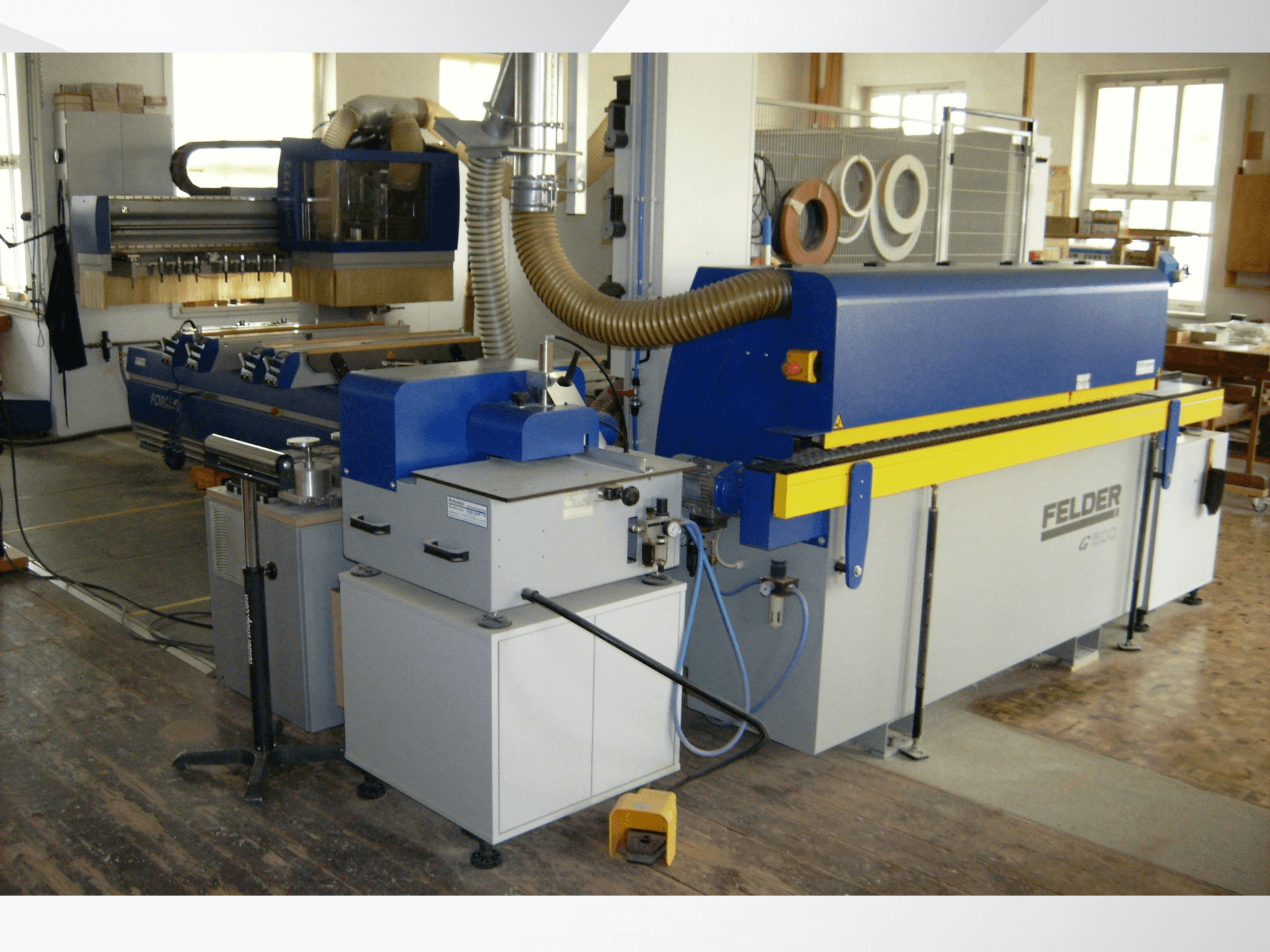

• FELDER G 500 Edgebanding Machine

• Voltage: 400 V

• Frequency: 50 Hz

• Phase: 3N

• Current: 14 A

• Power: 5.5 kW

• Edge Thickness: 0.4–5.0 mm (optional 8 mm)

• Workpiece Thickness: 8–60 mm

• Minimum Workpiece Width: 70 mm

• Minimum Workpiece Length: 140 mm

• Automatic Edge Feeding

• Strip Magazine

• Coil Diameter: Ø800 mm

• Suitable Edge Materials: PVC, ABS, Solid Wood Veneer

• Glue Pot Capacity: 2 kg

• Glue System: EVA Hot-Melt Granulate

• Teflon-Coated Glue Pot

• Glue Pot Heating Time: Approx. 12 min

• Automatic Glue Temperature Reduction

• Pressure Unit with 1 Straight Pressure Roller and 2 Conical Pressure Rollers

• End Trimming Unit

• Flush & Radius Trimming Unit

• Free Finishing Positions: 3

• Chain Conveyor Feed System

• Feed Speed: 9 m/min

• Extraction Connection: Ø120 mm

• Machine Length: 3,200 mm

• Machine Weight: 750 kg

Additional Equipment

• Scraper Unit (mechanically adjustable for R = 2 mm)

• Buffing Unit

• 2 Motors

• 1,400 rpm

• 900 W
